  •   EZVIZ CS-H4 (3WKFL, 2.8mm) outdoor dome camera

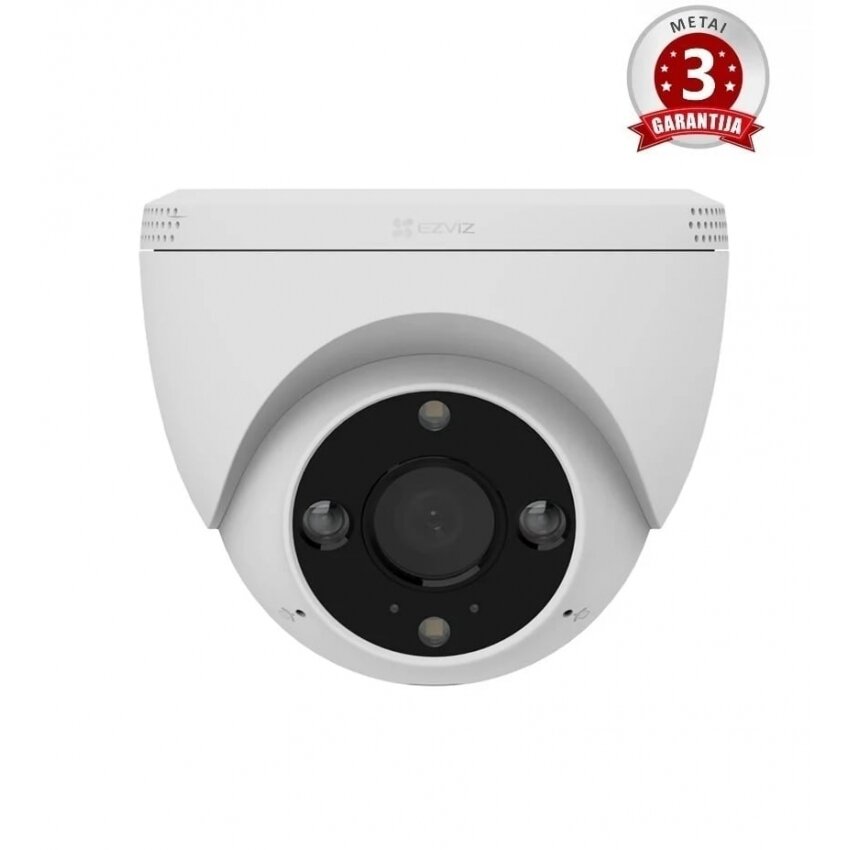

    EZVIZ CS-H4 (3WKFL, 2.8mm) outdoor dome camera

    Inquire about this item
    Price 65.09 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    EZVIZ

  •

    • Specifications
    • ModelCS-H4-R201-1H3WKFL
    • Camera
    • Image sensor1/2.7” Progressive ScanCMOS
    • Shutter SpeedSelf-adaptive shutter
    • Lens2.8 mm, viewing angle: 106°(Horizontal), 122° (Diagonal) 4 mm, viewing angle: 86° (Horizontal),102° (Diagonal) 6 mm, viewing angle: 52° (Horizontal), 62°(Diagonal)
    • DNR3D DNR
    • Lens MountM12
    • Day & NightIR-cut filter with auto-switching
    • WDRWDR
    • BLCSupports
    • Night VisionUp to 98 ft / 30 m
    • Video & Audio
    • Max. Resolution2304 × 1296
    • Frame RateMax: 25fps; Self-Adaptiveduring network transmission
    • Audio Bit RateSelf-Adaptive
    • Max. Bitrate3Mbps
    • Video CompressionH.265 / H.264
    • Video Bit RateUltra-HD; HD; Standard.Adaptive bit rate.
    • Network
    • Wi-Fi StandardIEEE802.11b, 802.11g,802.11n
    • Frequency Range2.4 GHz ~ 2.4835 GHz
    • Channel BandwidthSupport 20MHz
    • Security64/128-bit WEP,WPA/WPA2,
    • Transmission Rate11b: 11Mbps, 11g: 54Mbps,11n: 150Mbps
    • Wi-Fi PairingAP pairing
    • ProtocolEZVIZ Cloud ProprietaryProtocol
    • Interface ProtocolEZVIZ Cloud ProprietaryProtocol
    • Wired NetworkRJ45 × 1(10M/100M AdaptiveEthernet Port)
    • Functions
    • Smart AlarmMotion Detection,AI-Powered Human Shape Detection / Vehicle Shape Detection
    • Customized Alert AreaSupports
    • Two-way TalkSupports
    • General FunctionAnti-Flicker, Dual-Stream,Heart Beat, Mirror Image, Password Protection, Watermark
    • Storage
    • Local StorageSupports microSD cardstorage (up to 512 GB)
    • Cloud StorageSupports EZVIZ CloudPlaystorage
    • General
    • IP GradeIP67
    • Operating Conditions-20℃ ~ 50℃, humidity 95% orless (non-condensing)
    • Power SupplyDC 12V / 1A
    • Power ConsumptionMAX. 8W
    • Dimensions106 × 106 × 90 mm (4.17 ×4.17 × 3.54 inch)
    • Weight229 g (8.08 oz)
    • In the boxIn the box- H4 2K Camera
      • - Power Adapter- Drill Template- Screw Kit- RegulatoryInformation- Quick Start Guide
    • Certifications
    • CertificationsCE / UKCA / RoHS / REACH /WEEE
