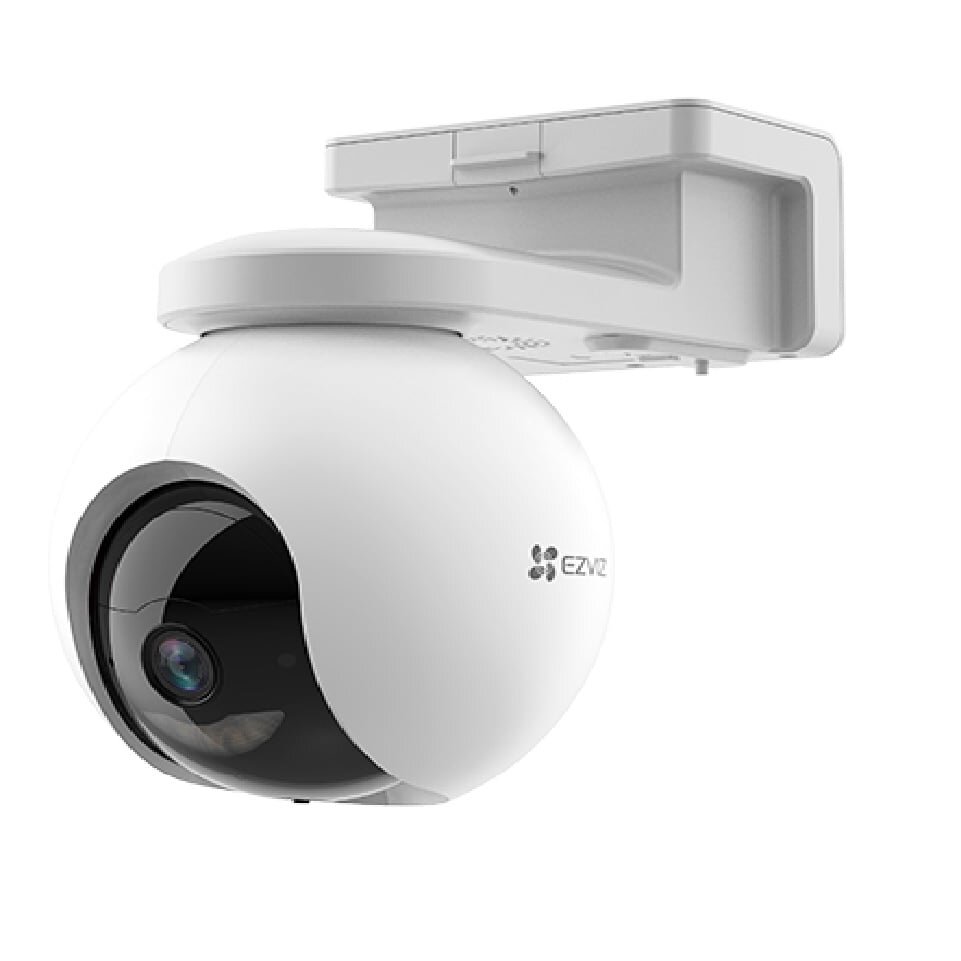

  •   EZVIZ CS-EB8 4G battery outdoor PT camera (4K, IP65)

    EZVIZ CS-EB8 4G battery outdoor PT camera (4K, IP65)

    Inquire about this item
    Price 223.19 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    EZVIZ
    • General
    • Image Sensor1/1.8" Progressive Scan CMOS
    • Max. Resolution3840 × 2160
    • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
    • Shutter Time1 s to 1/100,000 s
    • Day & NightIR cut filter
    • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
    • Lens TypeFixed focal lens, 2.8 and 4 mm optional
    • Focal Length & FOV2.8 mm: H 108.8°, V 56.4°, D 134.3°; 4 mm: H 93.3°, V 47.2°, D 114.2°
    • Lens MountM16
    • Iris TypeFixed
    • ApertureF1.0
    • Depth of Field2.8 mm: 3.3 m to ∞; 4 mm: 3.8 m to ∞
    • DORI Range2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m; 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
    • Supplement Light TypeWhite Light, IR
    • Supplement Light RangeUp to 30 m
    • Smart Supplement LightYes
    • IR Wavelength850 nm
    • Main Stream50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    • Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) (*Third stream supported under certain settings)
    • Video CompressionMain: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 (*Third stream supported under certain settings)
    • Video Bit Rate32 Kbps to 16 Mbps
    • H.264 TypeBaseline Profile, Main Profile, High Profile
    • H.265 TypeMain Profile
    • Bit Rate ControlCBR, VBR
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)1 fixed region for main stream
    • Audio TypeMono sound
    • Audio CompressionG.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
    • Audio Bit Rate64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
    • Audio Sampling Rate8 kHz, 16 kHz, 32 kHz, 48 kHz
    • Environment Noise FilteringYes
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
    • Simultaneous Live ViewUp to 6 channels
    • APIONVIF (Profile S, G, T), ISAPI, SDK, ISUP
    • User/HostUp to 32 users (administrator, operator, user)
    • SecurityPassword protection, HTTPS encryption, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filter, HTTP/HTTPS auth (basic/digest), WSSE, RTSP over HTTPS, timeout settings, audit log, TLS 1.1/1.2/1.3, MAC authentication
    • Network StorageNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
    • ClientiVMS-4200, Hik-Connect, Hik-Central
    • Web BrowserPlug-in free: Chrome 80+, Firefox 80+, Edge 89+; Local service: Chrome 80+, Firefox 80+, Edge 89+
    • Image Parameters SwitchYes
    • Image SettingsRotate, saturation, brightness, contrast, sharpness, gain, white balance (via client or browser)
    • Day/Night SwitchDay, Night, Auto, Schedule
    • Image EnhancementBLC, HLC, 3D DNR, Distortion Correction, Defog
    • SNR≥ 52 dB
    • Wide Dynamic Range (WDR)130 dB
    • Image StabilizationEIS
    • Privacy Mask4 programmable polygon masks
    • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
    • On-Board StorageMicroSD/SDHC/SDXC slot, up to 512 GB
    • Built-in SpeakerMax. 2 W, 110 dB @ 10 cm
    • Audio InterfaceBuilt-in dual microphone (-2U), 1 input (line in), 1 output (line out), max. 3.3 Vpp, 4.7 KΩ in / 100 Ω out, non-equilibrium
    • Alarm Interface1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
    • Reset KeyYes
    • Basic EventMotion detection (human/vehicle), video tampering, exception
    • Smart EventScene change detection
    • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm/recording/capture, audible warning, strobe light flashing
    • Face CaptureYes
    • Perimeter ProtectionLine crossing, intrusion, region entrance/exiting (human/vehicle)
    • Power12 VDC ± 25%, 1.29 A, max. 15.5 W, Ø5.5 mm plug, reverse polarity protection; PoE IEEE 802.3at Class 4, max. 17 W
    • MaterialCover: metal, main body: metal
    • DimensionØ138.3 mm × 115.4 mm (Ø5.4" × 4.5")
    • Package Dimension170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
    • WeightApprox. 820 g (1.8 lb.)
    • With Package WeightApprox. 1200 g (2.6 lb.)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95% (non-condensing)
    • Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95% (non-condensing)
    • General FunctionsHeartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
    • Language Support33 languages including English, Russian, German, French, Spanish, Chinese, Japanese, Korean, etc.
    • Flashing Light/SRB model: Red and Blue Light; /SL model: White Light
    • EMC CertificationsCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32:2015; IC: ICES-003 Issue 7; KC: KN32:2015, KN35:2015
    • Safety CertificationsUL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017
    • Environmental ComplianceCE-RoHS: 2011/65/EU
    • Protection RatingIP67 (IEC 60529-2013)
    • Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
