  •   EZVIZ CS-DP2 wireless doorbell kit

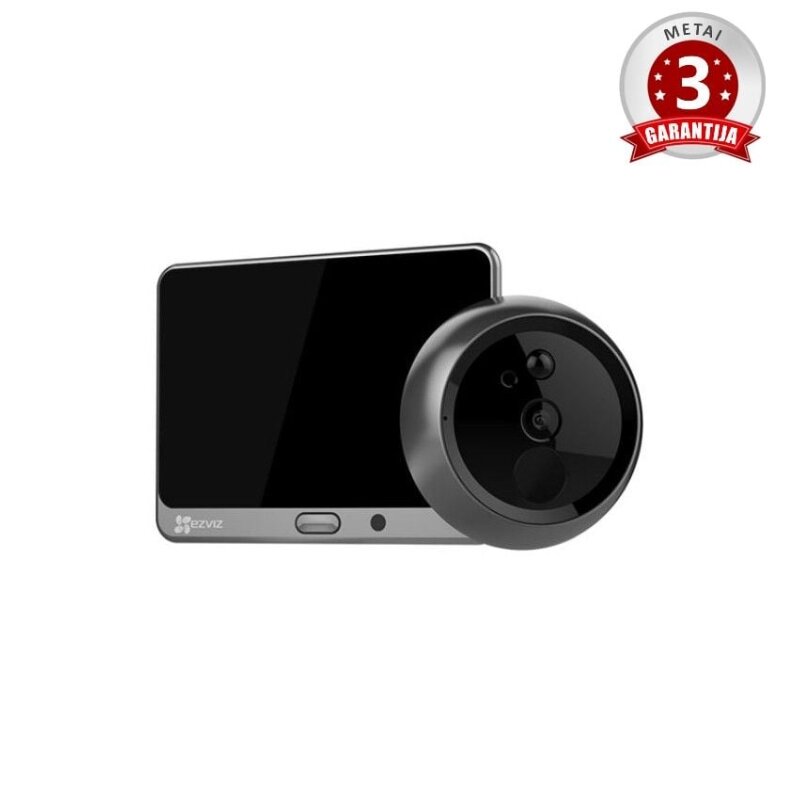

    EZVIZ CS-DP2 wireless doorbell kit

    Inquire about this item
    Price 170.73 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • General
    • DimensionScreen and Base: 115.5 x 85.5 x 24.5 mm (4.55 x 3.37 x 0.96 inch) Camera: 71 x 71 x 48.3 mm (2.80 x 2.80 x 1.90 inch)
    • WeightProduct: 320 g (11.28 oz) With package: 603 g (21.27 oz)
    • Screen4.3 inch Color Touch Screen
    • ColorSilver
    • ButtonDoorbell button, power button, screen wake-up button
    • Supported Peephole Diameter16.5 mm to 50 mm (0.65 inch to 1.97 inch)
    • Supported Door Thickness35 mm to 105 mm (1.38 inch to 4.13 inch)
    • Ingress Protection GradeIP54 for the outdoor camera part (needs to be installed correctly and tightly onto the door)
    • Operating Conditions-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
    • Camera
    • Sensor1/2.7" Progressive Scan CMOS
    • Lens2.0mm @ F2.0 Viewing angle: 166° (Diagonal), 136° (Horizontal), 80° (Vertical)
    • Max. Resolution1080p / 2MP
    • Day / Night SwitchICR infrared filter
    • IR Night Vision DistanceUp to 16.4 ft / 5 m
    • Video & Audio
    • Video Frame Rate15 fps
    • WDRDWDR
    • Audio InputBuilt-in high sensitivity microphone
    • Audio OutputBuilt-in high-power speaker
    • RingtonesSupports up to 5 ringtones, and the volume is adjustable
    • Function
    • DetectionAdvanced PIR Motion Detection
    • PIR Angle110°
    • PIR DistanceUp to 20 ft / 6 m
    • PIR SensitivityAdjustable
    • Image distortion correctionSupports
    • Local StorageSupports microSD card (Up to 256 GB)
    • Cloud StorageSupports EZVIZ CloudPlay storage (Subscription required)
    • General FunctionCloud video encryption and image encryption
    • Network
    • ProtocolEZVIZ Cloud Proprietary Protocol
    • Video IntercomLocal and remote video intercom
    • Wi-Fi StandardIEEE802.11b, 802.11g, 802.11n
    • Frequency Range2.4 GHz ~ 2.4835 GHz
    • Channel BandwidthSupports 20 MHz
    • Security64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, WPS
    • Transmission Rate11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
    • Power
    • WiringHard-wired
    • Power SupplyDC 5V ± 10%
    • Power ConsumptionMax. 2.2W
    • In the box
    • In the box- DP2 Peephole Doorbell - Panel - Mounting Base - Buckle - Screws × 6 - Power cable - Regulatory Information - Quick Start Guide
    • Certifications
    • CertificationsUL / CE / FCC / REACH / WEEE / RoHS / UKCA
