  •   ELDES ESIM320 4G remote gate controller

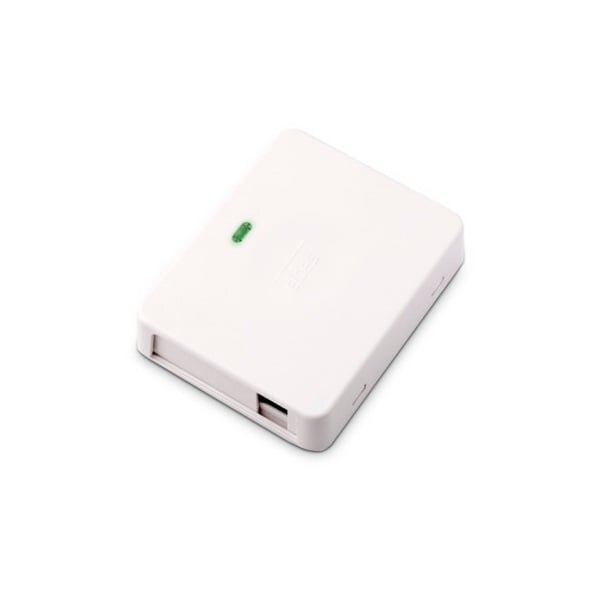

    ELDES ESIM320 4G remote gate controller

    Inquire about this item
    Price 154.02 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Eldes

    • General
    • Administratorsup to 5
    • Users databaseup to 2000
    • Power supply10-24 V 50 Hz ~ 200 mA max / 10-24 V 200 mA max
    • Current consumption in idle state w/o external devices connectedup to 50mA
    • Modem frequency ESIM320 3G/2G EU900/1800/2100MHz
    • Modem frequency ESIM320US 3G USA850/1900MHz
    • Modem frequency ESIM320-4G G14G(LTE) (28)700/(20)800/(18,19,26,5)850/(8)900/ (4)1700/(3)1800/(2)1900/ (1)2100/(7)2600 MHz; 3G (UMTS) - (5)850/(8)900/(2)1900/(1)2100 MHz; 2G (GSM) - 850/900/1800/1900 MHz
    • Modem frequency ESIM320-4G Q4G(LTE) (28)700/(20)800/(8)900/ (3)1800/(1)2100/(7)2600 MHz; 3G (UMTS) - (8)900/(1)2100 MHz; 2G (GSM) - 850/900/1800/1900 MHz
    • Number of inputs3
    • Number of outputs2
    • Output typeRelay
    • Maximum commuting output values24V 50Hz ~ 0,5A / 24V 1A
    • Event LOGup to 1000 events
    • Dimensions87×107×29 mm
    • Operating temperature range-20…+55 °C
    • Humidity0-90% RH @ 0… +40°C (0-90% RH @ +32… +104°F) (non-condensing)
