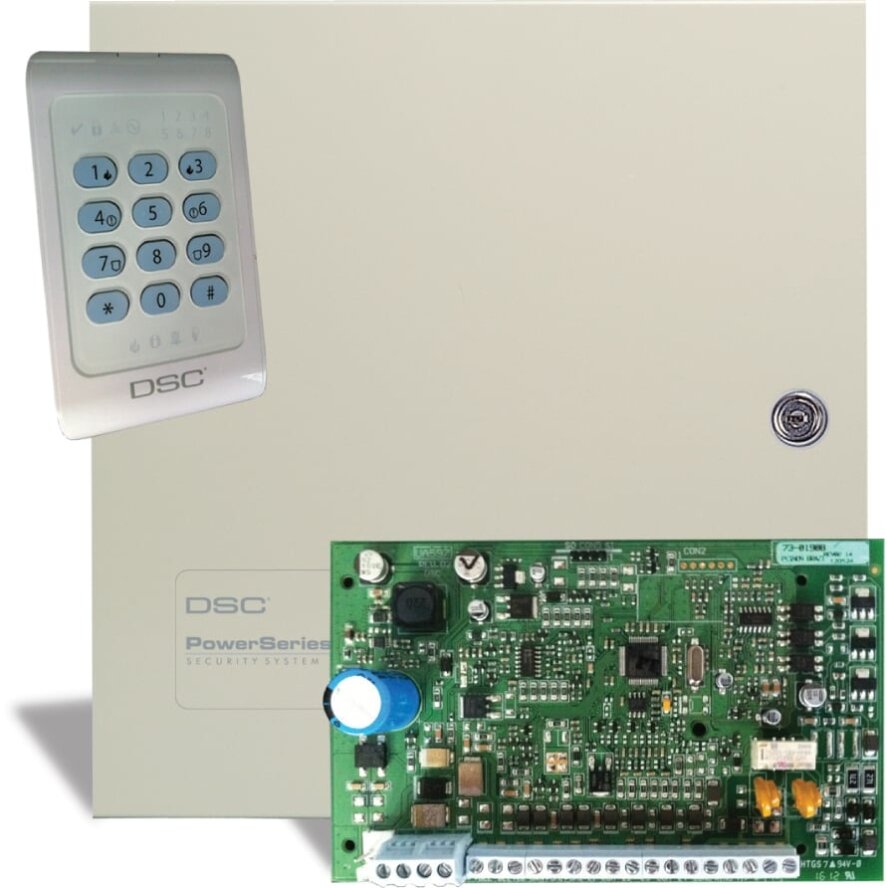

DSC PC1404 and PC1404RKZ set (with cabinet)

Contol panel:

• 4 on-board zones, expandable to 8
• Supports up to 4 keypads including the new PC1404RKZ keypad
• Supports up to 4 phone numbers
• Single partition
• 128 event buffer
• 2 on-board PGM outputs(50 mA and 300 mA),
• PGM expandable to 14 total(8 x 50 mA with PC5208, 4 x 500 mA with PC5204)
• Supports up to 39 user codes and 1 master code with 6 programmable user code attributes
• Continuously monitors potential trouble conditions
• Numerous false alarm prevention features
• Supports either 2- or 4-wire smoke detectors. NOTE: Using a 2-wire smoke detector does not require a separate zone

Keypad:

• Flexible zone configuration: 29 zone types and 11 programmable zone attributes
• 8 zone LED
• Large buttons for trouble-free viewing and activation
• Integrated number pad / FAP keys
• 4 programmable function keys
• Optional night light feature: dual LED backlit buttons easy to find in the dark
• Supports 1 zone per keypad
• Can expand PC1404 system to 8 zones using the 4 individual keypad zones
• Easy-to-understand icon symbols
• Modern, slim-line design blends into any decor
• Wiring channel for easy installation
• Standard PowerSeries programming sections
