  •   Dome camera Dahua IPC-HDW2649TM-S-IL-0280B F2.8 (Black, 6 MP, 95°, IR+LED 30 m, IP67)

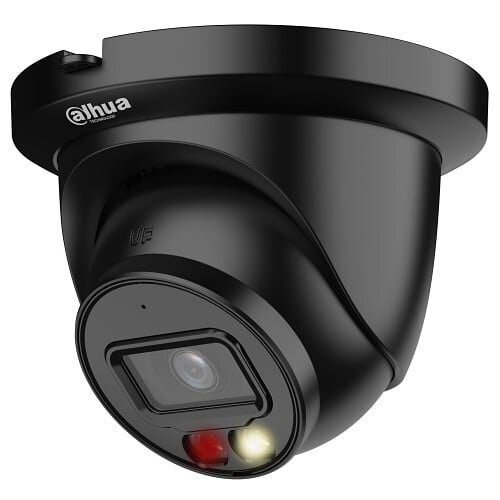

    Dome camera Dahua IPC-HDW2649TM-S-IL-0280B F2.8 (Black, 6 MP, 95°, IR+LED 30 m, IP67)

    Inquire about this item
    Price 162.73 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    Manufacturer
    Dahua
    • General
    • ModelDH-IPC-HDW2649TM-S-IL
    • Type6MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
    • Image Sensor1/2.7" CMOS
    • Max Resolution3288 × 1850 (6MP)
    • RAM / ROM256 MB / 128 MB
    • Scanning SystemProgressive
    • Electronic Shutter SpeedAuto/Manual, 1/3 s – 1/100,000 s
    • Min. Illumination0.007 lux@F1.6 (Color), 0.0007 lux@F1.6 (B/W), 0 lux (with IR/Warm light on)
    • S/N Ratio>56 dB
    • IR / Warm Light DistanceUp to 30 m (IR), 30 m (Warm light)
    • Illuminator ControlAuto / Manual
    • Illuminators1× IR LED, 1× Warm light
    • Angle AdjustmentPan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
    • Lens TypeFixed-focal
    • Lens MountM12
    • Focal Length Options2.8 mm or 3.6 mm
    • Max ApertureF1.6
    • Field of View (2.8 mm)H: 112°, V: 61°, D: 132°
    • Field of View (3.6 mm)H: 91°, V: 46°, D: 110°
    • Close Focus Distance2.8 mm: 1.0 m; 3.6 mm: 1.7 m
    • DORI Distance (2.8 mm)Detect: 61.2 m, Observe: 24.5 m, Recognize: 12.2 m, Identify: 6.1 m
    • DORI Distance (3.6 mm)Detect: 85.4 m, Observe: 34.2 m, Recognize: 17.1 m, Identify: 8.5 m
    • Smart Dual LightYes
    • Smart IlluminationYes
    • WDR120 dB
    • BLC / HLCYes / Yes
    • Noise Reduction3D NR
    • White BalanceAuto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
    • Day/Night ModeAuto(ICR), Color, B/W
    • Motion DetectionON/OFF (4 configurable rectangular areas)
    • Privacy Masking4 areas
    • Region of Interest (ROI)4 areas
    • Image Rotation0° / 90° / 180° / 270° (90°/270° supported up to 2688×1520)
    • Mirror FunctionYes
    • IVS FunctionsTripwire, Intrusion (human/vehicle classification)
    • SMD PlusYes
    • Smart SearchSupported (with Smart NVR)
    • Video CompressionH.265, H.264, H.264H, H.264B, MJPEG (MJPEG sub stream only)
    • Smart CodecSmart H.265+, Smart H.264+
    • Frame RateMain: 3288×1850@1–20 fps; 2688×1520@1–25/30 fps; Sub: 704×576@1–25 fps, 704×480@1–30 fps
    • Stream Capability2 streams
    • Supported Resolutions6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, VGA, CIF
    • Bit Rate ControlVBR / CBR
    • Video Bit RateH.264: 32–8192 kbps; H.265: 12–8192 kbps
    • Audio InputBuilt-in microphone
    • Audio CompressionG.711a, G.711Mu, PCM, G.726
    • Alarm EventsMotion, Tripwire, Intrusion, Audio Detection, Tampering, Voltage, No/Full/Error SD, IP Conflict, Illegal Access, Defocus, SMD, Security Exception
    • Network PortRJ-45 (10/100 Base-T)
    • Network ProtocolsIPv4, IPv6, HTTP, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, QoS, Bonjour, Auto Registration
    • InteroperabilityONVIF (Profiles S, G, T), CGI
    • User AccessUp to 20 users (Total bandwidth: 48 Mbps)
    • Storage OptionsMicro SD card (up to 256 GB), FTP, SFTP, NAS
    • Web BrowsersIE, Chrome, Firefox
    • Management SoftwareSmart PSS Lite, DSS, DMSS, DoLynk Care
    • Mobile AccessiOS, Android
    • Cybersecurity FeaturesVideo, firmware, config encryption; Account lockout; WSSE; Security logs; X.509; HTTPS; 802.1x; Trusted boot/execution/upgrade; Syslog; IP/MAC filtering
    • Power Supply12 VDC / PoE (802.3af)
    • Power ConsumptionBasic: 2.5 W (DC), 3.4 W (PoE); Max: 4.6 W (DC), 5.7 W (PoE)
    • Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
    • Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
    • Humidity≤95% RH (operating and storage), non-condensing
    • Ingress ProtectionIP67
    • Casing MaterialInner core: Metal; Cover: Metal; Ring: Plastic; Mount plate: Metal
    • Product Dimensions99.1 × Φ121.9 mm (3.90 × Φ4.80 in)
    • Net Weight / Gross Weight0.53 kg (1.17 lb) / 0.67 kg (1.48 lb)
    • CertificationsCE-LVD (EN62368-1), CE-EMC (2014/30/EU)
    • Accessories (Optional)Mount Adapter (PFA109), Ceiling Mount (PFB220C), Corner Mount (PFA151), Wall Mount (PFB305W, PFB205W-E), Pole Mount (PFA150, PFA152-E), Water-proof Junction Box (PFA130-E), Water Joint (G3416GW), Power Adapters (PFM321-EN, PFM321D-EN, PFM320D-EN), Mount Tester (PFM900-E), MicroSD Card (TF-P100/256GB)
