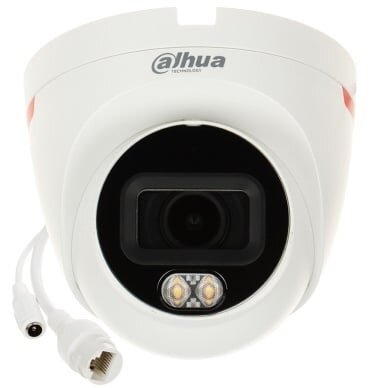

  •   Dome camera Dahua IPC-HDW2449T-S-LED-0280B-PRO F2.8 (4MP, 112°, IR+LED 30m, IP67, IK10)

    Dome camera Dahua IPC-HDW2449T-S-LED-0280B-PRO F2.8 (4MP, 112°, IR+LED 30m, IP67, IK10)

    Inquire about this item
    Price 163.35 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    Manufacturer
    Dahua
    • General
    • Image Sensor1/1.8" CMOS
    • Max. Resolution2688 (H) × 1520 (V)
    • ROM128 MB
    • RAM256 MB
    • Scanning SystemProgressive
    • Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
    • Min. Illumination0.0005 lux@F1.0
    • S/N Ratio>56 dB
    • Illumination DistanceUp to 30 m (98.43 ft) (Warm light)
    • Illuminator On/Off ControlAuto; Manual
    • Illuminator Number2 (Warm light)
    • Angle AdjustmentPan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
    • Lens TypeFixed-focal
    • Lens MountM16
    • Focal Length2.8 mm; 3.6 mm
    • Max. ApertureF1.0
    • Field of View2.8 mm: H: 112°; V: 60°; D: 134°, 3.6 mm: H: 94°; V: 50°; D: 113°
    • Iris ControlFixed
    • Close Focus Distance2.8 mm: 2 m (6.56 ft), 3.6 mm: 3 m (9.84 ft)
    • DORI Distance2.8 mm: Detect 57.9 m, Observe 23.2 m, Recognize 11.6 m, Identify 5.8 m; 3.6 mm: Detect 70.3 m, Observe 28.1 m, Recognize 14.1 m, Identify 7.0 m
    • IVS (Perimeter Protection)Intrusion, tripwire (classification and accurate detection of vehicle and human)
    • SMDSMD Plus
    • Smart SearchWorks with Smart NVR for refined intelligent search, event extraction, and merging to event videos
    • Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
    • Smart CodecSmart H.265+; Smart H.264+
    • Video Frame RateMain: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps), Sub: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
    • Streaming Capability2 streams
    • Resolution4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
    • Bit Rate ControlVBR; CBR
    • Video Bit RateH.264: 32–6144 kbps; H.265: 12–6144 kbps
    • Day/NightColor/B/W
    • BLCYes
    • HLCYes
    • WDR120 dB
    • White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
    • Gain ControlAuto/Manual
    • Noise Reduction3D NR
    • Motion DetectionON/OFF (4 areas, rectangular)
    • Region of Interest (RoI)Yes (4 areas)
    • Smart IlluminationYes
    • Image Rotation0°/90°/180°/270° (90°/270° with 2688 × 1520 resolution and lower)
    • MirrorYes
    • Privacy Masking4 areas
    • LDCYes
    • Built-in MICYes
    • Audio CompressionG.711a; G.711Mu; PCM; G.726
    • Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
    • Network PortRJ-45 (10/100 Base-T)
    • SDK and APIYes
    • Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
    • InteroperabilityONVIF (Profile S, G, T); CGI
    • User/Host20 (Total bandwidth: 48 M)
    • StorageFTP; SFTP; Micro SD card (max. 256 GB); NAS
    • BrowserIE; Chrome; Firefox
    • Management SoftwareSmart PSS Lite; DSS; DMSS
    • Mobile ClientiOS; Android
    • SecurityDigest; WSSE; Account lockout; Security logs; IP/MAC filtering; X.509 cert; syslog; HTTPS; 802.1x; Trusted boot/execution/upgrade; Session security; Security warning
    • CertificationsCE-LVD: EN62368-1; CE-EMC: EMC Directive 2014/30/EU
    • Power Supply12 VDC; PoE
    • Power ConsumptionBasic: 2.0 W (12 VDC); 2.5 W (PoE); Max: 5.3 W (12 VDC); 6.4 W (PoE) with full features enabled
    • Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
    • Operating Humidity≤95% RH, non-condensing
    • Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
    • Storage Humidity≤95% RH, non-condensing
    • ProtectionIP67
    • Casing MaterialInner core: Metal; Cover: Plastic
    • Product Dimensions109.5 mm × Φ109.9 mm (4.31" × Φ4.33")
    • Net Weight0.42 kg (0.93 lb)
    • Gross Weight0.59 kg (1.30 lb)
