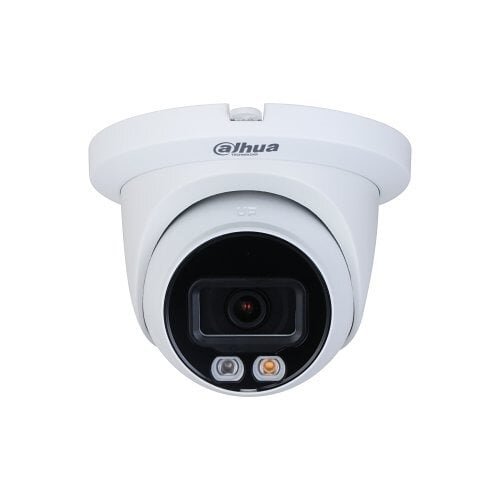

  •   Dome camera Dahua IPC-HDW2449T-S-IL-0280B F2.8 (4 MP, 95°, IR+LED 30 m, IP67, IK10)

    Dome camera Dahua IPC-HDW2449T-S-IL-0280B F2.8 (4 MP, 95°, IR+LED 30 m, IP67, IK10)

    Inquire about this item
    Price 158.08 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Dahua
    • General
    • ModelDH-IPC-HDW2449TM-S-IL
    • Type4MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
    • Image Sensor1/2.9" CMOS
    • Max Resolution2688 × 1520 (4MP)
    • ROM / RAM128 MB / 128 MB
    • Scanning SystemProgressive
    • Min Illumination0.006 lux@F1.6 (Color), 0.0006 lux@F1.6 (B/W), 0 lux (IR/Warm light on)
    • Illumination Distance30 m (IR), 30 m (Warm light)
    • Illuminator Control/CountAuto/Manual; 1 IR LED, 1 Warm light
    • Pan/Tilt/RotationPan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
    • Lens TypeFixed-focal
    • Lens MountM12
    • Focal Length Options2.8 mm, 3.6 mm
    • Max ApertureF1.6
    • Field of View (2.8 mm)H: 95°, V: 52°, D: 114°
    • Field of View (3.6 mm)H: 78°, V: 41°, D: 94°
    • Close Focus Distance2.8 mm: 0.9 m; 3.6 mm: 1.6 m
    • DORI Distance (2.8 mm)Detect: 63.6 m, Observe: 25.4 m, Recognize: 12.7 m, Identify: 6.4 m
    • DORI Distance (3.6 mm)Detect: 85.4 m, Observe: 34.2 m, Recognize: 17.1 m, Identify: 8.5 m
    • Intelligent FunctionsPerimeter protection (Intrusion, Tripwire - human/vehicle classification), SMD Plus, Smart Search
    • Video CompressionH.265, H.264, H.264B, H.264H, MJPEG (sub stream)
    • Smart CodecSmart H.265+, Smart H.264+
    • Frame Rate2688×1520@1–20 fps, 2560×1440@1–25/30 fps (main); 704×576@1–25 fps, 704×480@1–30 fps (sub)
    • Streams2 streams
    • Supported Resolutions4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
    • Bitrate Control / Bit RateCBR/VBR; H.264: 32–6144 kbps, H.265: 12–6144 kbps
    • Day/Night ModeAuto(ICR)/Color/B/W
    • WDR120 dB
    • BLC / HLCYes / Yes
    • White BalanceAuto, Natural, Street lamp, Outdoor, Manual, Regional Custom
    • Gain ControlAuto / Manual
    • Noise Reduction3D NR
    • Motion Detection4 configurable areas
    • Region of Interest (ROI)4 areas
    • Image Rotation0° / 90° / 180° / 270° (up to 2688×1520 resolution)
    • Mirror / Privacy MaskingYes / 4 areas
    • AudioMIC Built-in, G.711a, G.711Mu, PCM, G.726
    • Alarm EventsNo SD card, SD error/full, network disconnection, IP conflict, illegal access, motion detection, video tamper, tripwire, intrusion, voltage, security exception, SMD
    • Network InterfaceRJ-45 (10/100 Base-T)
    • Network ProtocolsIPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
    • SDK & APIYes
    • InteroperabilityONVIF (Profile S/G/T), CGI
    • Max Users6 users (36 Mbps total bandwidth)
    • StorageFTP, SFTP, Micro SD card up to 256 GB
    • Browser CompatibilityIE, Chrome, Firefox
    • Management SoftwareDSS, DMSS
    • Mobile ClientiOS, Android
    • CybersecurityTrusted execution, X.509 certs, HTTPS, video encryption, syslog, WSSE, 802.1x, IP/MAC filtering, trusted boot, secure upgrade
    • Power Supply12 VDC / PoE (802.3af)
    • Power ConsumptionBasic: 2.1 W (DC), 2.5 W (PoE); Max: 4.4 W (DC), 5.2 W (PoE)
    • Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
    • Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
    • Humidity≤95%
    • Ingress ProtectionIP67
    • Casing MaterialMetal (core & cover), Plastic (decor ring)
    • Dimensions99.1 × Φ121.9 mm (3.90" × Φ4.80")
    • Net Weight / Gross Weight0.46 kg (1.01 lb) / 0.65 kg (1.43 lb)
    • CertificationsCE-LVD (EN62368-1), CE-EMC (Directive 2014/30/EU), FCC Part 15 Subpart B, UL/CUL (UL62368-1 & CAN/CSA C22.2 No. 62368-1-14)
    • Included / Optional AccessoriesOptional: PFA130-E (Junction Box), PFB205W-E (Wall Mount), PFA152-E (Pole Mount), PFA109 (Mount Adapter), PFB220C (Ceiling Mount), PFM321D (12VDC 1A Adapter), PFM900-E (Mount Tester), TF-P100 (MicroSD Card)
