  •   Directional LTE Antenna MikroTik SXTR R11e-LTE7

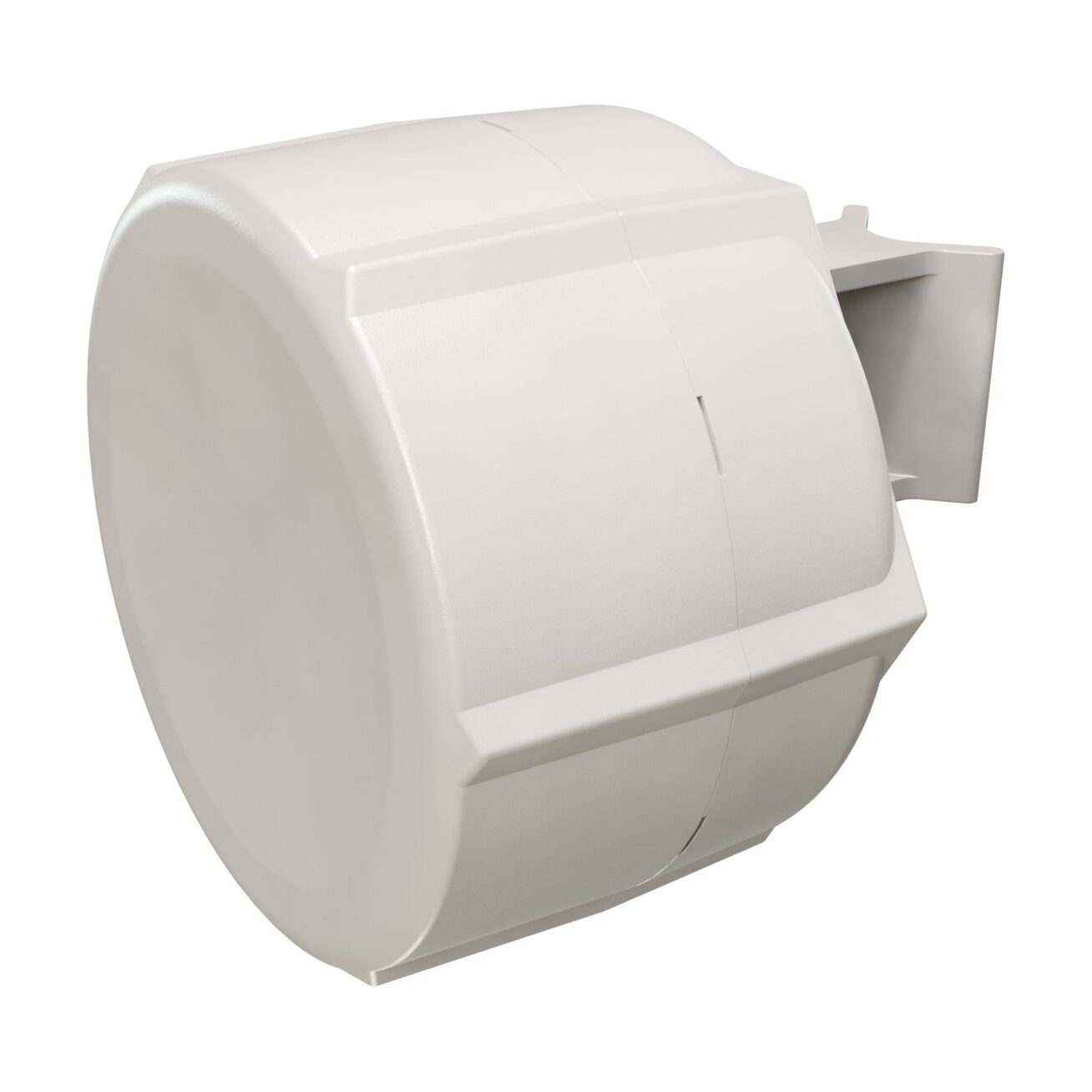

    Directional LTE Antenna MikroTik SXTR R11e-LTE7

    Inquire about this item
    Price 126.82 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • Specifications
    • Product codeSXTR&R11e-LTE7
    • ArchitectureMIPSBE
    • CPUQCA9531
    • CPU core count1
    • CPU nominal frequency650 MHz
    • Switch chip modelQCA9531
    • RouterOS license3
    • Operating SystemRouterOS v7
    • Size of RAM64 MB
    • Storage size16 MB
    • Storage typeFLASH
    • MTBFApproximately 200'000 hours at 25C
    • Tested ambient temperature-40°C to 60°C
    • Powering
    • Number of DC inputs1 (PoE-IN)
    • Max power consumption24 W
    • Max power consumption without attachments7 W
    • PoE in802.3af/at
    • Cooling typePassive
    • PoE in input Voltage12-57 V
    • PoE-out
    • PoE-out portsEther2
    • PoE outPassive PoE up to 57V
    • Low voltage PoE-Out current limit600 mA
    • High voltage PoE-Out current limit400 mA
    • Max total out (A)600 mA
    • Mobile
    • 3G CategoryR8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
    • 3G bands1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 8 (900 MHz)
    • LTE Category7 (DL: 300 Mbps; UL: 100 Mbps)
    • MIMO DL2x2
    • MIMO UL1x1
    • LTE FDD bands1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) 32 (1500 MHz)
    • LTE TDD bands38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz)
    • TAC35312597
    • Ethernet
    • 10/100 Ethernet ports2
    • Peripherals
    • Number of SIM slots2 Modem (Micro SIM)
    • MiniPCI-e slots1
    • Other
    • Mode buttonYes
    • Certification & Approvals
    • CertificationCE, EAC, ROHS
    • IP54
