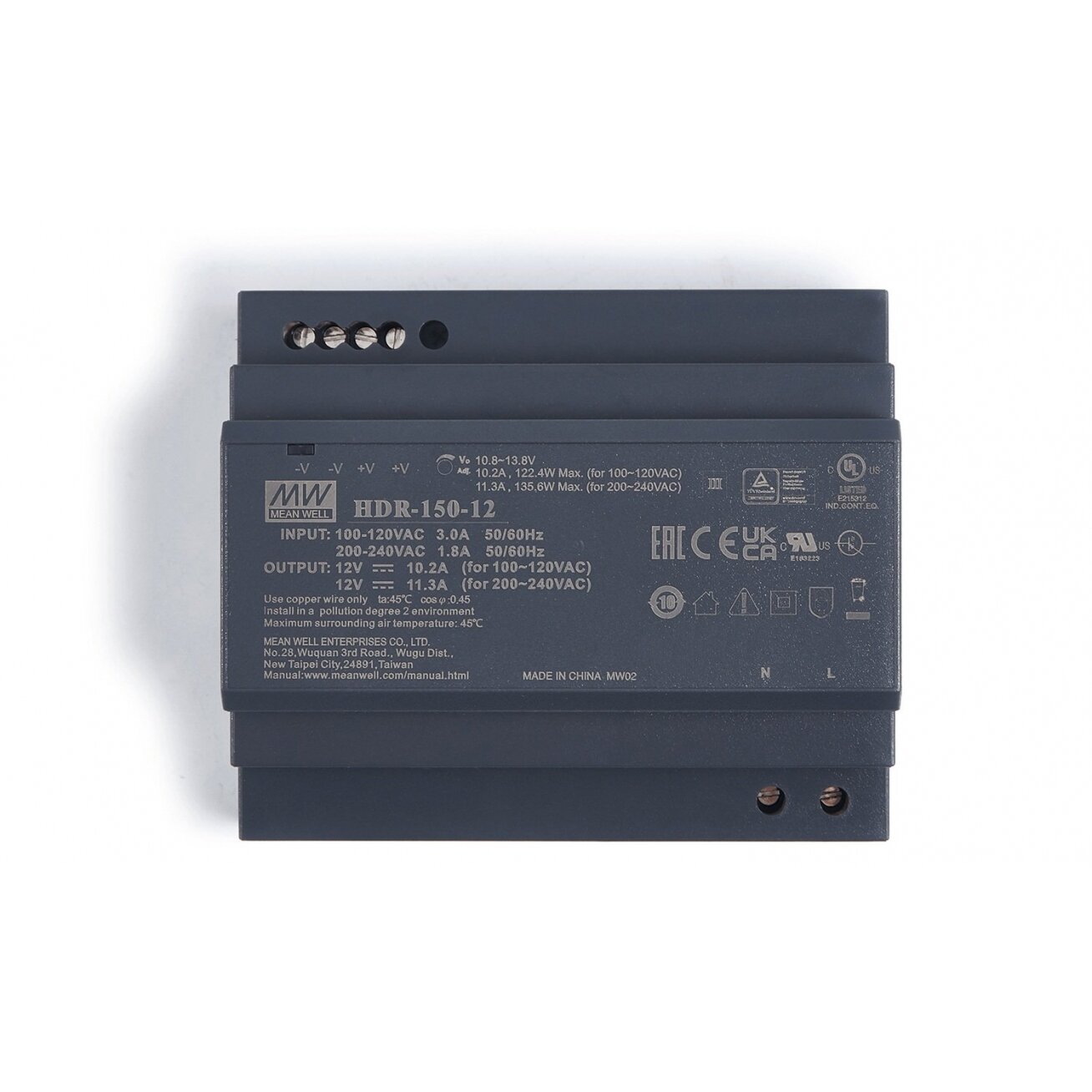

DIN rail-mounted switching power supply 12V 135.6W 11.3A, MEAN WELL, HDR-150-12
-
DIN rail-mounted switching power supply 12V 135.6W 11.3A, MEAN WELL, HDR-150-12
-
- General
- ModelHDR-150-12
- DC Voltage12V
- Rated Current11.3A
- Rated Power135.6W
- Voltage Adjustment Range10.2 ~ 13.8V
- Ripple & Noise (max.)120mVp-p
- Voltage Tolerance±1.0%
- Line Regulation±1.0%
- Load Regulation±1.0%
- Setup, Rise Time500ms, 30ms/230VAC; 500ms, 30ms/115VAC at full load
- Hold Up Time (Typ.)30ms/230VAC; 12ms/115VAC at full load
- Voltage Range85 ~ 264VAC; 120 ~ 370VDC (277VAC operational, 390VDC operational)
- Frequency Range47 ~ 63Hz
- Efficiency (Typ.)90%
- AC Current (Typ.)3A/115VAC; 1.6A/230VAC
- Inrush Current (Typ.)Cold start 57A/230VAC
- Overload ProtectionConstant current limiting, recovers automatically after fault removal
- Over Voltage ProtectionShut down o/p voltage, re-power on to recover
- Withstand VoltageI/P-O/P: 4KVAC
- Isolation ResistanceI/P-O/P: 100M Ohms / 500VDC / 25°C / 70% RH
- Working Temperature-30 ~ +70°C (Refer to "Derating Curve")
- Working Humidity20 ~ 90% RH non-condensing
- Storage Temperature, Humidity-40 ~ +85°C, 10 ~ 95% RH non-condensing
- Temp. Coefficient±0.03%/°C (0 ~ 45°C)
- Vibration10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Compliance to IEC60068-2-6
- MTBF304.63K hrs min. (Telcordia SR-332); 535.9K hrs min. (MIL-HDBK-217F at 25°C)
- Dimensions105mm (W) x 90mm (H) x 54.5mm (D)
- Weight0.31Kg; 32pcs/11Kg/1.0CUFT
- CertificationsIEC62368-1, UL62368-1, UL61010, BS EN/EN61558-2-16, EAC TP TC 004, BS EN/EN61558-1
- EMC EmissionBS EN/EN55032 (CISPR32) Class B
- EMC ImmunityBS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11
- Operating AltitudeUp to 2000 meters
- LED IndicatorPower On
- Cooling MethodFree air convection
- MountingType DIN Rail TS35/7.5 or TS35/15
