  •   Detector Hik-vision DS-PRP100

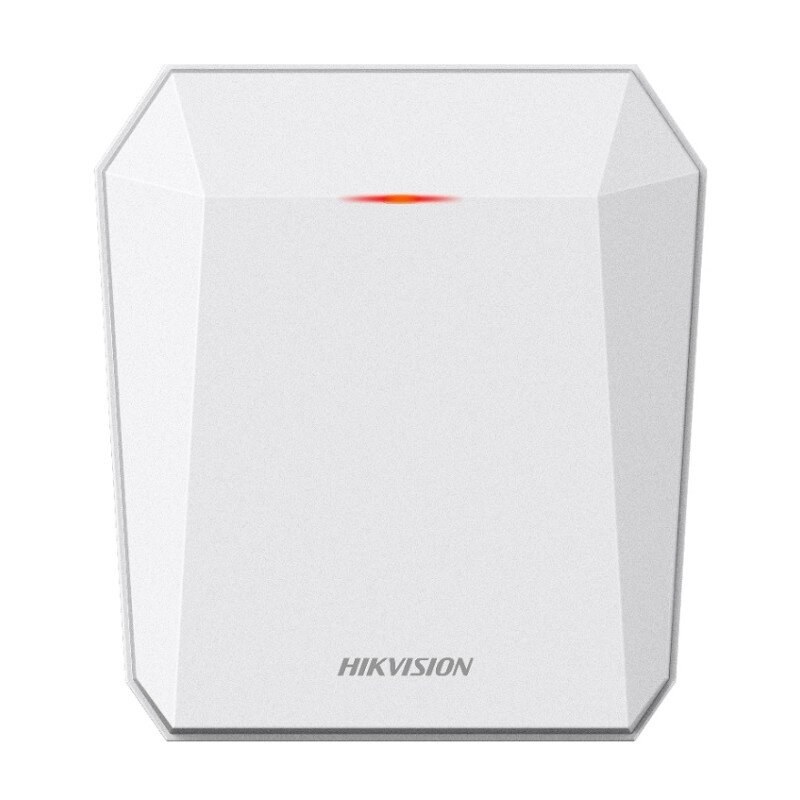

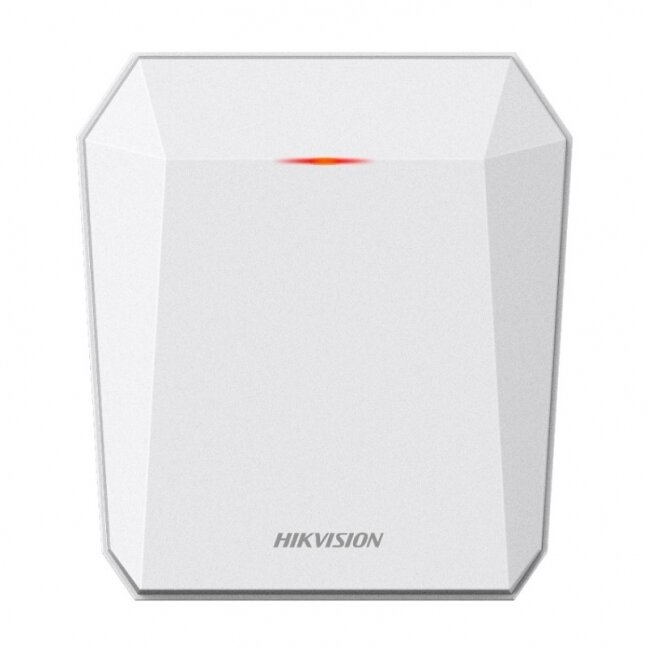

    Detector Hik-vision DS-PRP100

    Inquire about this item
    Price 4223.18 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    Manufacturer
    Patrol

    • Detection performance
    • Velocity range-8.8 to 8.8 m/s
    • Range measurement accuracy± 1.2m
    • Radar transmit power＜20 dBm
    • Date fresh rate10 frames / s
    • Detection angle6.2°
    • Detection range100m
    • Microwave frequency24.05 ~ 24.25 GHz
    • Max. Target number32
    • Software features
    • ScheduleAuto Arm/Disarm Schedule
    • Trigger lineUp to 4 Trigger-Lines
    • Configuration toolsWeb / iVMS-4200
    • Firmware undate toolsWeb / iVMS-4200
    • Network encryptionAES-128 encryption
    • Exception detectionCommunication failure alarm, anti-moving alarm and tampering alarm
    • Hardware features
    • Serial portRS232
    • Tamper-ProofTampering alarm
    • Netowrk interface1 RJ45 10M/100M self-adaptive, PoE
    • Electrical characteristics
    • Power supplyStandard PoE / 12VDC
    • Power interface802.3at standard PoE or 12VDC
    • Operation humidity10% to 90%
    • Operation temperature-40℃ to 65℃
    • Power consumption≤ 8W
    • Display
    • IndicatorDual-color LED
    • General
    • IK rateIK09
    • IP rateIP67
    • Installation methodMultiple installations with different brackets
    • Installation height

      Installation height: 1.2m to 4m;

      Recommended height: 2.5m

    • Dimension(WxHxD)206 mm × 228 mm × 61 mm (8.11" × 8.98" × 2.40")
    • Anti-corrosionNEMA 4X
    • Application scenarioOutdoor
    • Shell material

      Front panel: plastics

      Rear panel: metallic aluminum

    • ColorWhite
    • BracketMultiple brackets
    • Weight1.74 kg
    • Device management
    • Alarm output4 Relay Outputs(NO/NC)
    • Zones16
    • Relay output4-ch: 0.5A/125VAC or 1A/30VDC
    • Report method
    • ProtocolHTTP, DNS, NTP, TCP, UDP, DHCP, ARP, SSH
