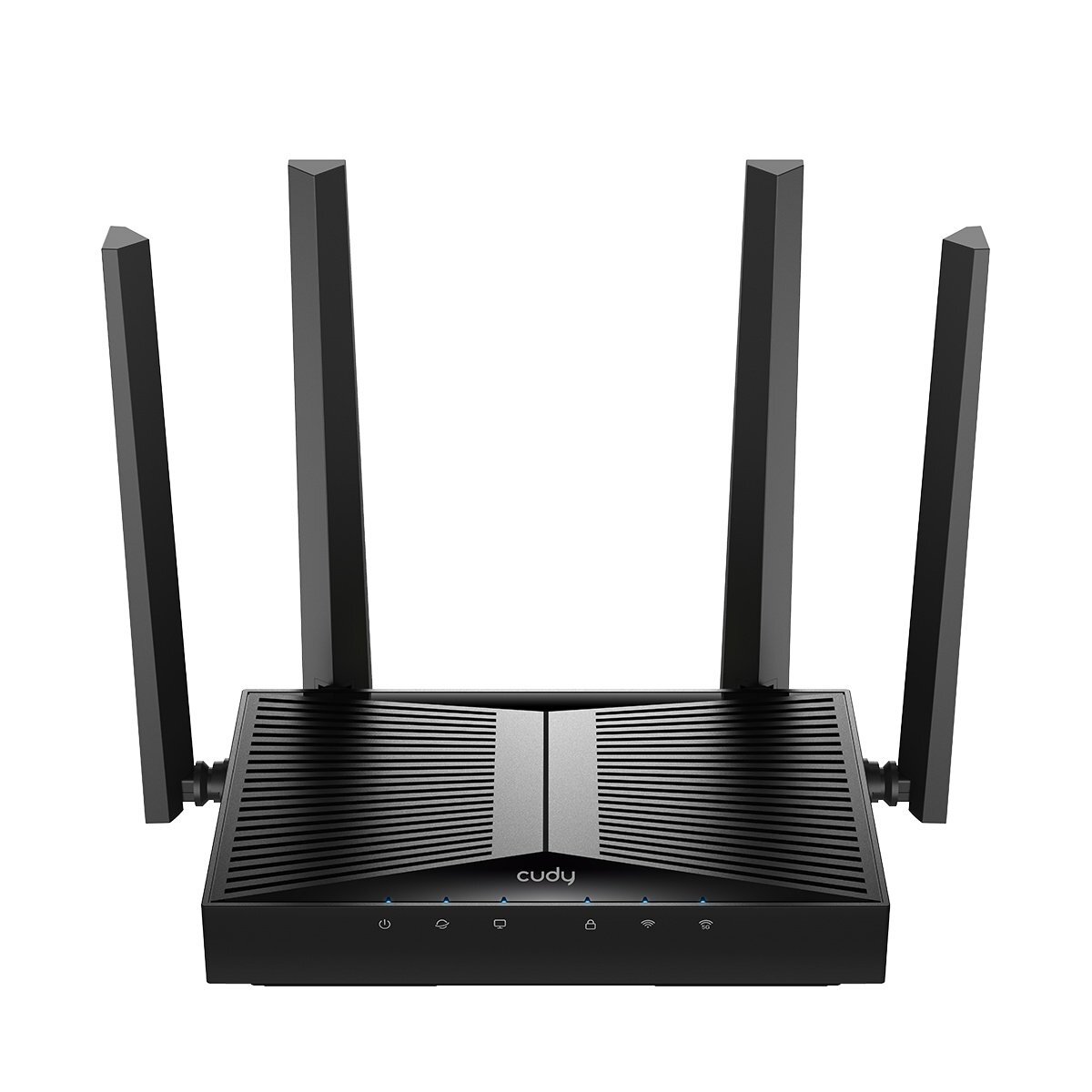

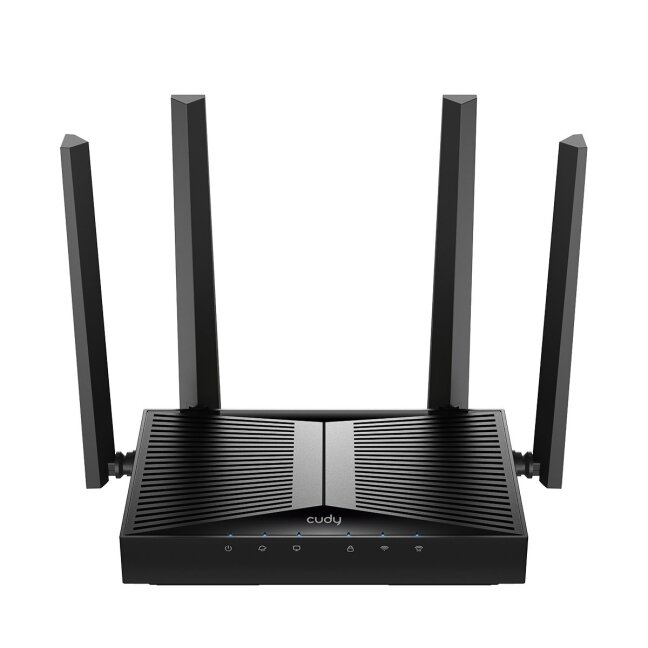

    Desktop wireless LAN access point Cudy AP3000D

    Inquire about this item
    Price 50.20 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionAP3000D 1.0
    • CPU1.3 GHz Dual-Core, ARM Cortex-A53
    • Flash/ROM16 MB (128 Mbit) NOR
    • DDR/RAM256 MB (2 Gbit) DDR3
    • 5 GHz Wi-Fi Speed2402 Mbps
    • 2.4 GHz Wi-Fi Speed574 Mbps
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO) with an Extra Stream
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas4× Fixed
    • 5 GHz Antenna Gain Max5.6 dBi
    • 2.4 GHz Antenna Gain Max5.1 dBi
    • FEM or PA/LNA5 GHz: 3× Internal, 2.4 GHz: 2× Internal
    • BeamformingTrue
    • Range PerformanceMax: 220 m (722 ft)
    • Wall PerformanceTwo wooden walls < 10 cm, One or two concrete walls < 10–20 cm
    • Gigabit RJ45 Ports1
    • Ethernet NotesAccepts PoE powering
    • LED IndicatorsSystem, Internet, Ethernet, WPS, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
    • Physical ButtonsWPS Button, Reset Button
    • Power InputDC Jack, PoE via Ethernet Port
    • Power MethodsDC, Passive PoE, 802.3af/at PoE
    • DC Specification12V 1A
    • Passive PoE Voltage12V
    • Power AdapterAP3000D/DC: Input 100–240V AC, Output 12V 1A DC; AP3000D_P Injector: Input 12–48V
    • Max Power Consumption12W (PoE or DC)
    • Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
    • Storage Temperature-40°C ~ 70°C (-40°F ~ 158°F)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 95% non-condensing
    • CertificationsFCC, CE
    • Installation TypeDesktop, Wall-mount
    • Dimensions183.3×109×38 mm (7.22×4.29×1.5 inches)
    • Antenna Length175 mm (6.89 inches)
    • Product Weight309.0 g (10.9 oz.)
