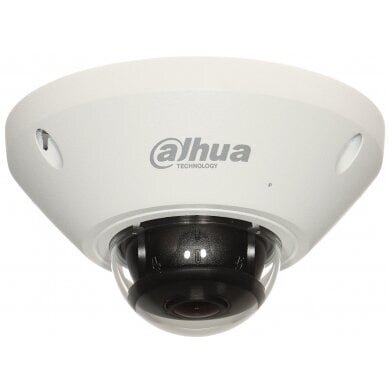

  •   Dahua fisheye camera IPC-EB5541-AS (white, 5 MP, 180°)

    Dahua fisheye camera IPC-EB5541-AS (white, 5 MP, 180°)

    Inquire about this item
    Price 462.81 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Dahua

    • General
    • Image Sensor1/2.7” 5 Megapixel progressive CMOS
    • Max. Resolution2592 (H) × 1944 (V)
    • ROM128 MB
    • RAM512 MB
    • Scanning SystemProgressive
    • Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
    • Min. Illumination0.006 Lux@F2.0 (Color, 30IRE)
    • S/N Ratio> 56 dB
    • Pan/Tilt/Rotation RangePan: 0°–355°, Tilt: 0°–55°, Rotation: 0°–360°
    • Lens TypeFixed-focal
    • Mount TypeM12
    • Focal Length1.4 mm
    • Max. ApertureF2.0
    • Field of ViewHorizontal: 180°, Vertical: 180°, Diagonal: 180°
    • Iris TypeFixed
    • Close Focus Distance0.2 m (0.7 ft)
    • DORI DistanceDetect: 28 m, Observe: 11.2 m, Recognize: 5.6 m, Identify: 2.8 m
    • Heat MapYes
    • IVSTripwire, Intrusion
    • People CountingYes (4 areas with report generation)
    • Intelligent SearchSupported with Smart NVR
    • Installation OptionsCeiling mount, Wall mount, Ground mount
    • Decoding ModeBack-dewarp
    • Display ModesFisheye view, 360° + PTZ, dual 180°, fisheye + 2/3/4/6/8 PTZ, 180° + PTZ, VR mode
    • Video CompressionH.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
    • Smart CodecSmart H.265+/Smart H.264+
    • Video Frame RateMain: 2592×1944@1–25/30 fps, Sub: 704×576/480@1–25/30 fps, Third: 1280×720@1–25/30 fps
    • Stream Capability3 streams
    • Supported Resolutions5M, 3M, UXGA, 1.3M, 720p, D1, VGA, CIF
    • Bit Rate ControlCBR/VBR
    • Video Bit RateH.264/H.265: 3 kbps–8192 kbps
    • Day/NightColor/B/W
    • BLC/HLC/WDRBLC: Yes, HLC: Yes, WDR: 120 dB
    • SSAYes
    • White BalanceAuto/Natural/Street lamp/Outdoor/Manual/Regional custom
    • Gain ControlAuto/Manual
    • Noise Reduction3D DNR
    • Motion Detection4 areas
    • Region of Interest4 areas
    • Privacy Masking4 areas
    • Built-in MICYes
    • Audio CompressionPCM, G.711a, G.711Mu, G726
    • Alarm EventsSD status, motion, tamper, tripwire, intrusion, scene change, audio, people count, etc.
    • Network InterfaceRJ-45 (10/100 Base-T)
    • SDK & API SupportYes
    • ProtocolsIPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, etc.
    • Cyber SecurityEncryption, account lockout, logs, filtering, HTTPS, 802.1x, trusted boot/execution/upgrade
    • InteroperabilityONVIF (S/G/T), CGI, Milestone, Genetec, P2P
    • User Access20 users, 64 Mbps bandwidth
    • Storage OptionsFTP, SFTP, Micro SD (up to 256 GB), NAS
    • Browser SupportIE8/9/11, Chrome, Firefox
    • Management SoftwareSmart PSS, DSS, DMSS
    • Mobile App SupportiOS, Android
    • CertificationsCE, FCC, UL, EN62368-1, EMC Directive 2014/30/EU
    • Audio I/O1 In / 1 Out (RCA)
    • Alarm I/O1 In (5mA 3V–5V DC), 1 Out (300mA 12V DC)
    • Power Supply12V DC / PoE
    • Power Consumption3.7W (DC), 4.7W (PoE); Max: 5.1W (DC), 6W (PoE)
    • Operating Conditions–30°C to +55°C / <95% RH
    • Storage Conditions–40°C to +60°C
    • Protection GradeIP67, IK10
    • Casing MaterialMetal
    • Dimensions62.0 mm × Φ110.0 mm (2.44" × Φ4.3")
    • Net Weight387 g (0.9 lb)
    • Gross Weight502 g (1.1 lb)
