  •   Dahua Dome IPC-HDW3842EM-S-0280B F2.8 (White, 8MP, ~111°, IR LED 30m, IP67, PoE)

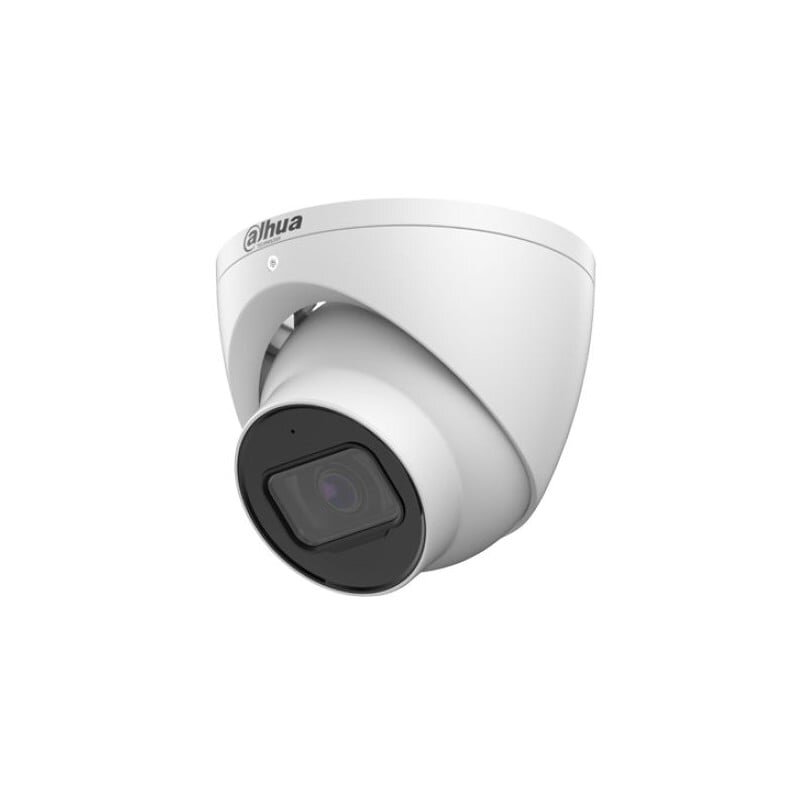

    Dahua Dome IPC-HDW3842EM-S-0280B F2.8 (White, 8MP, ~111°, IR LED 30m, IP67, PoE)

    Inquire about this item
    Price 302.98 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Dahua

    • General
    • Image Sensor1/1.8” 8 Megapixel progressive CMOS
    • Max. Resolution3840 (H) × 2160 (V)
    • ROM128 MB
    • RAM1 GB
    • Scanning SystemProgressive
    • Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
    • Min. Illumination0.003 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)
    • S/N Ratio> 56 dB
    • Illumination Distance30 m (98.4 ft)
    • Illuminator On/Off ControlAuto/Manual
    • Illuminator Number2 (IR LED)
    • Pan/Tilt/Rotation RangePan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
    • Lens TypeFixed-focal
    • Mount TypeM12
    • Focal Length2.8 mm; 3.6 mm
    • Max. ApertureF1.6
    • Field of View2.8 mm: H: 111°; V: 59°; D: 131°, 3.6 mm: H: 87°; V: 47°; D: 102°
    • Iris TypeFixed
    • Close Focus Distance2.8 mm: 1.8 m (5.91 ft), 3.6 mm: 2.6 m (8.53 ft)
    • DORI Distance (Detect)2.8 mm: 84.5 m, 3.6 mm: 106.0 m
    • DORI Distance (Observe)2.8 mm: 34.2 m, 3.6 mm: 42.4 m
    • DORI Distance (Recognize)2.8 mm: 17.1 m, 3.6 mm: 21.2 m
    • DORI Distance (Identify)2.8 mm: 8.5 m, 3.6 mm: 10.6 m
    • IVS (Perimeter Protection)Tripwire; intrusion (vehicle and human classification)
    • AI SSADeep learning algorithms for adaptive image optimization
    • Quick PickAI NVR-assisted quick selection of human/vehicle targets from SMD events
    • Smart SearchWorks with Smart NVR for refined search, event extraction, and video merging
    • Video CompressionH.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
    • Smart CodecSmart H.265+, Smart H.264+
    • Stream Capability3 streams
    • Video Frame RateMain stream: 3840 × 2160 @ (1–25/30) fps, Sub stream 1: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps), Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
    • Resolution8M (3840 × 2160), 6M (3072 × 2048), 5M (3072 × 1728/2592 × 1944), 4M (2688 × 1520), 3.6M (2560 × 1440), 3M (2048 × 1536), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), CIF (352 × 288/352 × 240), VGA (640 × 480)
    • Bit Rate ControlCBR/VBR
    • Video Bit RateH.264: 3 kbps–16384 kbps, H.265: 3 kbps–16384 kbps
    • Day/NightAuto (ICR)/Color/B/W
    • BLCYes
    • HLCYes
    • WDR120 dB
    • Scene Self-adaptation (SSA)Yes
    • White BalanceAuto, natural, street lamp, outdoor, manual, regional custom
    • Gain ControlAuto
    • Noise Reduction3D DNR
    • Motion DetectionON/OFF (4 areas, rectangular)
    • Region of Interest (RoI)Yes (4 areas)
    • DefogYes
    • AFSAYes
    • Image Rotation0°/90°/180°/270° (Supports 90°/270° with 2688×1520 resolution and lower)
    • MirrorYes
    • Privacy Masking4 areas
    • Built-in MICYes
    • Audio CompressionG.711a, G.711Mu, PCM, G.726, G.723
    • Alarm EventsNo SD card, SD card full/error, service life warning (Dahua card only), network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage detection, SMD, safety exception
    • Network InterfaceRJ-45 (10/100 Base-T)
    • SDK and APIYes
    • Network ProtocolIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P
    • Cyber SecurityVideo/firmware/configuration encryption, Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certification, syslog, HTTPS, 802.1x, trusted boot/execution/upgrade
    • InteroperabilityONVIF (Profile S/G/T), CGI
    • User/Host Support20 (Total bandwidth: 64 M)
    • StorageFTP, SFTP, Micro SD card (max. 256 GB), NAS
    • Browser CompatibilityIE11, Chrome, Firefox
    • Management SoftwareSmart PSS, DSS, DMSS
    • Mobile ClientiOS, Android
    • CertificationsCE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
    • Power Supply12V DC/PoE (802.3af)
    • Power ConsumptionBasic: 3.8 W (12 VDC), 4.8 W (PoE); Max: 7.8 W (12 VDC), 9.1 W (PoE) (WDR + IR intensity + Intelligence)
    • Operating Conditions–40°C to +60°C (–40°F to +140°F), Less than 95% RH
    • Storage Conditions–40°C to +60°C (–40°F to +140°F), Less than 95% RH
    • Protection GradeIP67
    • CasingMetal
    • Dimensions99.2 mm × Φ106.0 mm
    • Net Weight500 g
    • Gross Weight770 g
