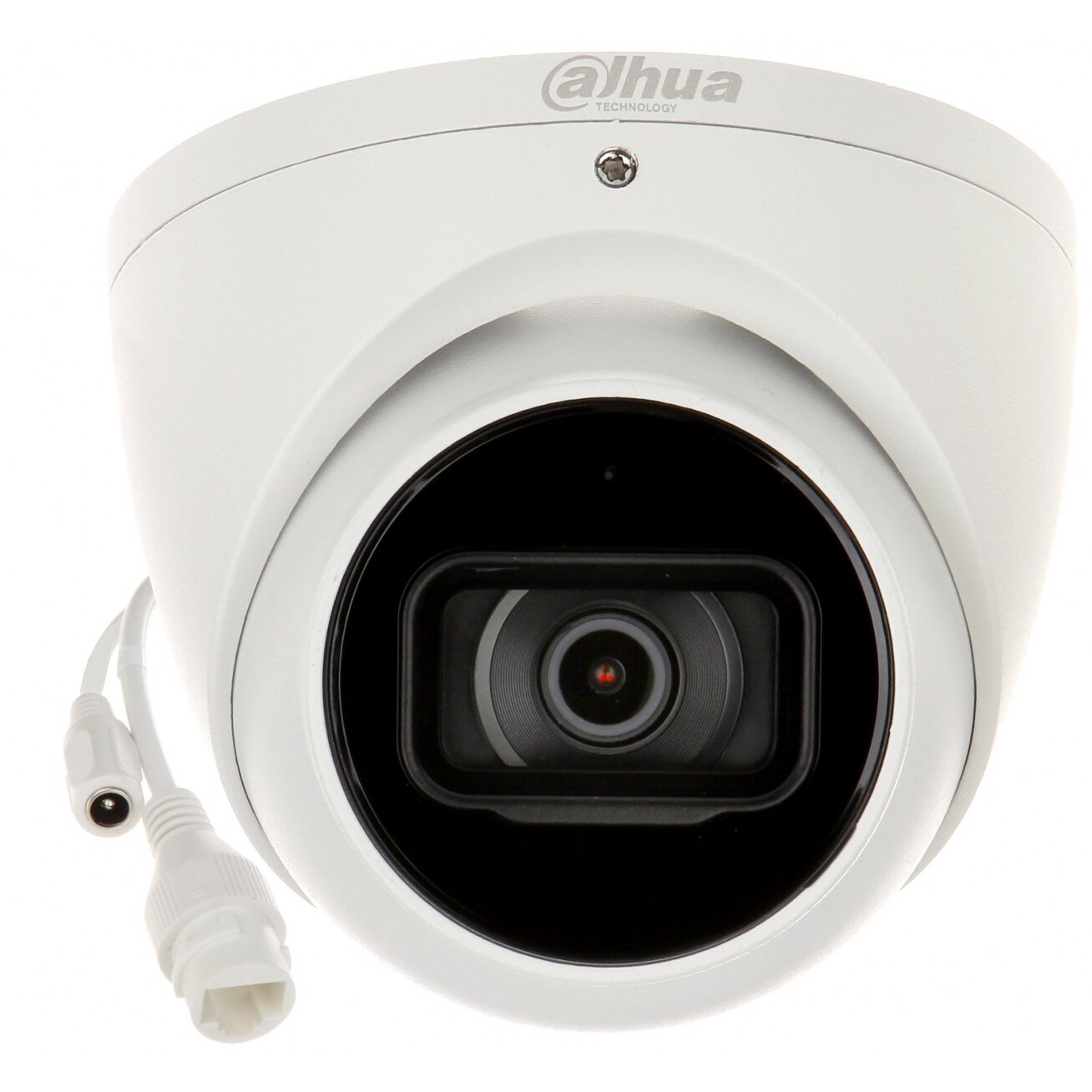

  •   Dahua Dome IPC-HDW3541EM-S-S2 F2.8 (White, 5MP, 97°, IR LED 50m, IP67)

    Dahua Dome IPC-HDW3541EM-S-S2 F2.8 (White, 5MP, 97°, IR LED 50m, IP67)

    Inquire about this item
    Price 190.82 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Dahua

    • Image Sensor 1/2.7" CMOS
    • Max. Resolution 2960 (H) × 1668 (V)
    • ROM 128 MB
    • RAM 512 MB
    • Scanning System Progressive
    • Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
    • Min. Illumination 0.005 lux@F1.4 (Color, 30 IRE)0.0005 lux@F1.4 (B/W, 30 IRE)0 lux (Illuminator on)
    • S/N Ratio >56 dB
    • Illumination Distance Up to 50 m (164.04 ft)
    • Illuminator On/Off Control Auto/Manual
    • Illuminator Number 2 (IR LED)
    • Pan/Tilt/Rotation Range Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
    • Lens Type Fixed-focal
    • Lens Mount M12
    • Focal Length 2.8 mm; 3.6 mm; 6 mm
    • Max. Aperture F1.4
    • Field of View 2.8 mm: Horizontal: 97°; Vertical: 71°; Diagonal: 129°3.6 mm: Horizontal: 80°; Vertical: 57°; Diagonal: 107°6 mm: Horizontal: 50°; Vertical: 37°; Diagonal: 64°
    • Iris Control Fixed
    • Close Focus Distance 2.8 mm: 1.1 m (3.61 ft)3.6 mm: 1.7 m (5.58 ft)6 mm: 3.3 m (10.83 ft)
    • IVS (Perimeter Protection) Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
    • AI SSA Yes
    • Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
    • Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
    • Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
    • Smart Codec Smart H.265+Smart H.264+
    • AI Coding AI H.265AI H.264
    • Video Frame Rate Main stream: 2880 × 1620 @ (1–20) fps /2960 × 1668 @ (1–20) fps /2688 × 1520@ (1–25/30 fps)Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)Sub stream 2: 1920 × 1080 @ (1–25/30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
    • Stream Capability 3 streams
    • Resolution 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
    • Bit Rate Control CBR/VBR
    • Video Bit Rate H.264: 3 kbps–8192 kbpsH.265: 3 kbps–8192 kbps
    • Day/Night Auto (ICR)/Color/B/W
    • BLC Yes
    • HLC Yes
    • WDR 120 dB
    • Scene Self-adaptation (SSA) Yes
    • White Balance Auto; natural; street lamp; outdoor; manual; regional custom
    • Gain Control Auto
    • Noise Reduction 3D NR
    • Motion Detection OFF/ON (4 areas, rectangular)
    • Region of Interest (RoI) Yes (4 areas)
    • Defog Yes
    • AFSA Yes
    • Image Rotation 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)
    • Mirror Yes
    • Privacy Masking 4 areas
    • Built-in MIC Yes
    • Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
    • Alarm Event No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
    • Network Port RJ-45 (10/100 Base-T)
    • SDK and API Yes
    • Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
    • Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
    • Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
    • User/Host 20 (Total bandwidth: 64 M)
    • Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
    • Browser IE:IE11ChromeFirefox
    • Management Software Smart PSS; DSS; DMSS
    • Mobile Client iOS; Android
    • Certifications CE-LVD: EN62368-1;CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;FCC: 47 CFR FCC Part 15, Subpart B;UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
    • Power Supply 12 VDC/PoE (802.3af)
    • Power Consumption Basic: 4.3 W (12 VDC); 4.9 W (PoE)Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)
    • Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% (RH)
    • Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F)
    • Protection IP67
    • Casing Metal
    • Product Dimensions 93.6 mm × Φ106.0 mm (3.69" × Φ4.17")
    • Net Weight 500 g (1.10 lb)
    • Gross Weight 770 g (1.70 lb)
