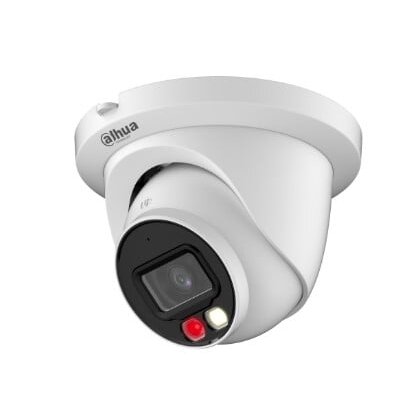

  •   Dahua Dome IPC-HDW2549TM-S-IL-0280B F2.8 (White, 5MP, ~111°, IR+LED 30m, IP67)

    Dahua Dome IPC-HDW2549TM-S-IL-0280B F2.8 (White, 5MP, ~111°, IR+LED 30m, IP67)

    Inquire about this item
    Price 212.33 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Dahua

    • General
    • Image Sensor1/2.7" CMOS
    • Max. Resolution2960 (H) × 1668 (V)
    • ROM128 MB
    • RAM256 MB
    • Scanning SystemProgressive
    • Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
    • Min. Illumination0.007 Lux@F1.6 (Color, 30IRE), 0.0007 Lux@F1.6 (B/W, 30IRE), 0 lux (Illuminator on)
    • S/N Ratio>56 dB
    • Illumination DistanceUp to 30 m (98.43 ft) (IR), Up to 30 m (98.43 ft) (Warm light)
    • Illuminator On/Off ControlAuto; Manual
    • Illuminator Number1 (IR LED), 1 (Warm light)
    • Pan/Tilt/Rotation RangePan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
    • Lens TypeFixed-focal
    • Lens MountM12
    • Focal Length2.8 mm; 3.6 mm
    • Max. ApertureF1.6
    • Field of View2.8 mm: H: 111°; V: 58°; D: 132°, 3.6 mm: H: 92°; V: 45°; D: 110°
    • Iris ControlFixed
    • Close Focus Distance2.8 mm: 1.1 m (3.61 ft), 3.6 mm: 1.7 m (5.58 ft)
    • DORI Distance (2.8 mm)Detect: 63.6 m (208.66 ft), Observe: 25.4 m (83.33 ft), Recognize: 12.7 m (41.67 ft), Identify: 6.4 m (21.00 ft)
    • DORI Distance (3.6 mm)Detect: 85.4 m (280.18 ft), Observe: 34.2 m (112.20 ft), Recognize: 17.1 m (56.10 ft), Identify: 8.5 m (27.89 ft)
    • IVS (Perimeter Protection)Intrusion, tripwire (vehicle and human classification)
    • Smart SearchWork with Smart NVR for intelligent search, event extraction, and video merging
    • Video CompressionH.265, H.264, H.264H, H.264B, MJPEG (Sub stream only)
    • Smart CodecSmart H.265+, Smart H.264+
    • Video Frame RateMain stream: 2960 × 1668@(1–20 fps) / 2688 × 1520@(1–25/30 fps); Sub stream: 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps)
    • Stream Capability2 streams
    • Resolution2960 × 1668, 2880 × 1620, 2688 × 1520, 3M (2048 × 1536), 2304 × 1296, 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
    • Bit Rate ControlCBR/VBR
    • Video Bit RateH.264: 32 kbps–8192 kbps, H.265: 12 kbps–8192 kbps
    • Day/Night ModeAuto (ICR)/Color/B/W
    • BLCYes
    • HLCYes
    • WDR120 dB
    • White BalanceAuto, natural, street lamp, outdoor, manual, regional custom
    • Gain ControlAuto, Manual
    • Noise Reduction3D NR
    • Motion DetectionOff/On (4 areas, rectangular)
    • Region of Interest (RoI)Yes (4 areas)
    • Smart IlluminationYes
    • Image Rotation0°/90°/180°/270° (Supports 90°/270° at 2688 × 1520 resolution and lower)
    • MirrorYes
    • Privacy Masking4 areas
    • Built-in MICYes
    • Audio CompressionG.711a, G.711Mu, PCM, G.726
    • Alarm EventsNo SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, audio detection, voltage detection, SMD, security exception
    • Network PortRJ-45 (10/100 Base-T)
    • SDK and APIYes
    • Network ProtocolIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour
    • InteroperabilityONVIF (Profile S/G/T), CGI, P2P, Milestone
    • User/Host20 (Total bandwidth: 48 M)
    • StorageFTP, SFTP, Micro SD card (Max. 256 GB), NAS
    • Browser CompatibilityIE, Chrome, Firefox
    • Management SoftwareSmart PSS, DSS, DMSS
    • Mobile ClientiOS, Android
    • Cyber SecurityConfiguration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, 802.1x, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot, firmware encryption, X.509 certification
    • CertificationsCE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
    • Power Supply12 VDC/PoE (802.3af)
    • Power ConsumptionBasic: 2.2 W (12 VDC), 2.9 W (PoE); Max: 4.6 W (12 VDC), 5.4 W (PoE)
    • Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
    • Operating Humidity≤95%
    • Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
    • Storage Humidity≤95%
    • ProtectionIP67
    • Casing MaterialInner core: Metal, Cover: Metal, Decoration ring: Plastic, Quick install mounting plate: Metal
    • Product Dimensions99.1 mm × Φ121.9 mm (3.90" × Φ4.80")
    • Net Weight0.48 kg (1.06 lb)
    • Gross Weight0.62 kg (1.37 lb)
