  •   Dahua Dome IPC-HDW1530T-0280B-S6 (White, 5MP, 2.8mm, IR+LED 30m, IP67)

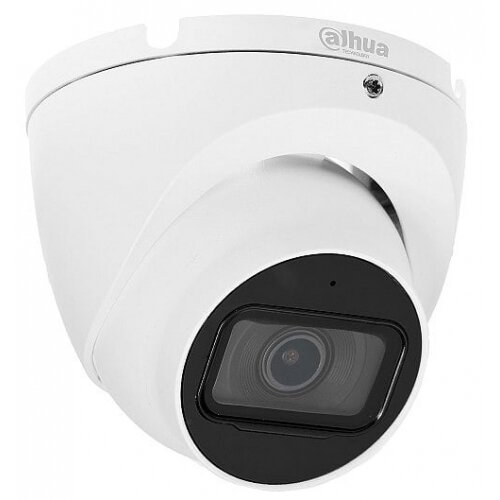

    Dahua Dome IPC-HDW1530T-0280B-S6 (White, 5MP, 2.8mm, IR+LED 30m, IP67)

    Inquire about this item
    Price 111.36 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Dahua

    • General
    • Converter1/2.7" 5MP Progressive Scan CMOS
    • Resolution5Mpx, 2880 (H) x 1620 (V) pixels
    • RAM / ROM128MB / 16MB
    • Scanning systemProgressive
    • SnapshotAuto / Manual, 1/3 ~ 1 / 100000s
    • Minimum lightingColor: 0.03 Lux / F2.0 (30 IRE), B/W: 0.003 Lux / F2.0 (30 IRE), IR on: 0 Lux
    • Illuminator1 IR LED
    • Illuminator range30m (98.4ft)
    • Illuminator controlAutomatic / Manual
    • Position adjustmentPan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°
    • Lens typeFixed focus
    • Lens assemblyM12
    • Focal length2.8mm (F2.0)
    • Viewing angleH: 105°, V: 57°, D: 125°
    • Focus adjustmentConstant
    • Macro mode0.5m (1.6ft)
    • DORI coverageDetection: 56m, Observation: 22.4m, Recognition: 11.2m, Identification: 5.6m
    • Video compressionH.265 / H.264 / H.264B, MJPEG (Sub stream)
    • Smart CodecYes (H.265+ / H.264+)
    • Simultaneous video streams2
    • Processing resolution5Mpx (2880x1620) / 4Mpx (2688x1520, 2560x1440) / 3Mpx (2048x1536, 2304x1296) / 1080p (1920x1080) / 1.3Mpx (1280x960) / 720p (1280x720) / D1 (704x576, 704x480) / VGA (640x480) / CIF (352x288, 352x240)
    • Processing speed and resolution (main)5Mpx - 2880x1620 (1 ~ 20kl/s), 4Mpx - 2688x1520 (1 ~ 25/30kl/s)
    • Processing speed and resolution (auxiliary)D1 - 704x576 (1 ~ 25fps), D1 - 704x480 (1 ~ 30fps)
    • Baud rate controlCBR / VBR
    • Bitrate32Kbps ~ 6144Kbps (H.264), 12Kbps ~ 6400Kbps (H.265)
    • Day/Night modeAuto (ICR) / Color / Black & White
    • Gain controlAutomatic (AGC) / Manual
    • BLCSupport
    • HLCSupport
    • Background compensationDWDR
    • White balanceAutomatic (AWB), Natural, Street light, Outdoor, Manual, Region
    • Noise reduction3D DNR
    • Smart IRSupport
    • Privacy zonesOn/Off (4 areas, rectangles)
    • Motion detectionOn/Off (4 areas, rectangles)
    • ROI (Region of Interest)On/Off (4 areas)
    • Mirror reflectionSupport
    • Image rotation0°, 90°, 180°, 270° (supports 90°, 270° for resolutions 2688x1520 and below)
    • Event triggersMotion detection, tamper, connection loss, IP conflict, unauthorized access, voltage anomaly
    • Ethernet1x RJ45 10/100 Base-T
    • Power1x 5.5 / 2.1 socket on the cable
    • Supported protocolsIPv4, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast
    • Standards complianceONVIF (Profile S), CGI, Genetec, P2P
    • Online users20 users
    • Network archivingFTP, Dahua Cloud
    • Browser supportIE, Chrome, Firefox
    • Remote controlCMS (Smart PSS), DSS, DMSS, P2P; Mobile devices: iOS, Android
    • CertificateLVD: EN62368-1, EMC: Electromagnetic Compatibility Directive 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B (20-01-2022)
    • ConstructionCamera front: metal, Camera body: metal, Holder: metal
    • Tightness classIP67
    • Power supplyDC 12V (±30%), PoE DC 48V (802.3af)
    • Power consumptionBasic: 1.9W (12V DC), 2.3W (PoE); Max: 3.9W (12V DC), 4.5W (PoE)
    • Humidity0 ~ 95% (non-condensing)
    • Ambient temperature-40°C ~ +60°C (-40°F ~ +140°F)
    • Working temperature-40°C ~ +60°C (-40°F ~ +140°F)
    • Weight320g (0.71Ib)
    • DimensionsØ94x85.6mm (Ø3.7” x 3.4”)
