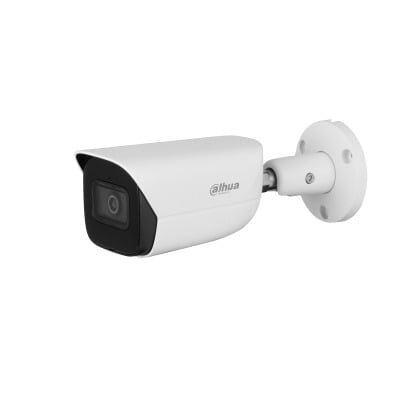

  •   Dahua Bullet IPC-HFW3541E-AS-0280B-S2 (White, 5MP, ~111°, IR LED 50m, IP67, int. mic, Audio/Alarm)

    Dahua Bullet IPC-HFW3541E-AS-0280B-S2 (White, 5MP, ~111°, IR LED 50m, IP67, int. mic, Audio/Alarm)

    Inquire about this item
    Price 188.13 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Dahua

    • General
    • Image Sensor1/2.7" CMOS
    • Max. Resolution2960 (H) × 1668 (V)
    • ROM128 MB
    • RAM512 MB
    • Scanning SystemProgressive
    • Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
    • Min. Illumination0.005 lux@F1.4 (Color, 30 IRE), 0.0005 lux@F1.4 (B/W, 30 IRE), 0 lux (Illuminator on)
    • S/N Ratio>56 dB
    • Illumination DistanceUp to 50 m (164.04 ft)
    • Illuminator On/Off ControlAuto/Manual
    • Illuminator Number1 (IR LED)
    • Pan/Tilt/Rotation RangePan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
    • Lens TypeFixed-focal
    • Lens MountM12
    • Focal Length2.8 mm; 3.6 mm; 6 mm
    • Max. ApertureF1.4
    • Field of View2.8 mm: Horizontal: 111°, Vertical: 58°, Diagonal: 132°; 3.6 mm: Horizontal: 92°, Vertical: 45°, Diagonal: 110°; 6 mm: Horizontal: 57°, Vertical: 30°, Diagonal: 65°
    • Iris ControlFixed
    • Close Focus Distance2.8 mm: 1.1 m (3.61 ft), 3.6 mm: 1.7 m (5.58 ft), 6 mm: 3.3 m (10.83 ft)
    • DORI Distance2.8 mm: Detect 63.6 m, Observe 25.4 m, Recognize 12.7 m, Identify 6.4 m; 3.6 mm: Detect 85.4 m, Observe 34.2 m, Recognize 17.1 m, Identify 8.5 m; 6 mm: Detect 124.0 m, Observe 49.6 m, Recognize 24.8 m, Identify 12.4 m
    • Perimeter ProtectionTripwire, intrusion (supports classification and accurate detection of vehicles and humans)
    • AI SSAYes
    • Quick PickWith AI NVR, quickly identifies human/vehicle targets from SMD events
    • Smart SearchRefined intelligent search with Smart NVR, event extraction, and merging
    • Video CompressionH.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)
    • Smart CodecSmart H.265+, Smart H.264+
    • AI CodingAI H.265, AI H.264
    • Video Frame RateMain: 2880 × 1620 @ (1–20) fps / 2960 × 1668 @ (1–20) fps / 2688 × 1520 @ (1–25/30 fps); Sub stream 1: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps); Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
    • Stream Capability3 streams
    • Resolution5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
    • Bit Rate ControlCBR/VBR
    • Video Bit RateH.264: 3 kbps–8192 kbps, H.265: 3 kbps–8192 kbps
    • Day/NightAuto (ICR)/Color/B/W
    • BLCYes
    • HLCYes
    • WDR120 dB
    • Scene Self-adaptation (SSA)Yes
    • White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
    • Gain ControlAuto
    • Noise Reduction3D NR
    • Motion DetectionON/OFF (4 areas, rectangular)
    • Region of Interest (RoI)Yes (4 areas)
    • DefogYes
    • AFSAYes
    • Image Rotation0°/90°/180°/270° (Supports 90°/270° at 2688 × 1520 resolution and lower)
    • MirrorYes
    • Privacy Masking4 areas
    • Built-in MICYes
    • Audio CompressionG.711a, G.711Mu, PCM, G.726, G.723
    • Alarm EventsNo SD card, SD card full/error, service life warning (only with Dahua card), network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage detection, external alarm, SMD, safety exception
    • Network PortRJ-45 (10/100 Base-T)
    • SDK and APIYes
    • Network ProtocolsIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP
    • Cyber SecurityVideo encryption, firmware encryption, configuration encryption, Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certification, syslog, HTTPS, 802.1x, trusted boot, execution, upgrade
    • InteroperabilityONVIF (Profile S/G/T), CGI, P2P, Milestone, Genetec
    • User/Host20 (Total bandwidth: 64 M)
    • StorageFTP, SFTP, Micro SD card (max. 256 GB), NAS
    • Browser SupportIE11, Chrome, Firefox
    • Management SoftwareSmart PSS, DSS, DMSS
    • Mobile ClientiOS, Android
    • CertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
    • Audio Input1 channel (RCA port) (Only - AS supports)
    • Audio Output1 channel (RCA port) (Only - AS supports)
    • Alarm Input1 channel in: wet contact, 5 mA 3 V–5 VDC (Only - AS supports)
    • Alarm Output1 channel out: wet contact, 300 mA 12 VDC (Only - AS supports)
    • Power Supply12 VDC/PoE (802.3af)
    • Power ConsumptionBasic: 3.1 W (12 VDC); 3.7 W (PoE), Max: 5.3 W (12 VDC); 6.5 W (PoE)
    • Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F) / Less than 95% RH
    • Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
    • ProtectionIP67
    • CasingMetal
    • Product Dimensions192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.77" × 2.61") (L × W × H)
    • Net Weight590 g (1.30 lb)
    • Gross Weight780 g (1.72 lb)
