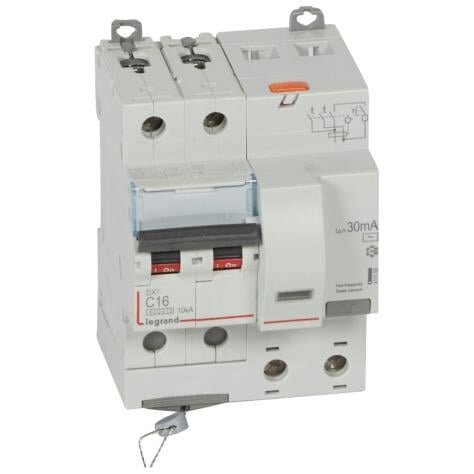

Current drain relay with automatic switch Legrand 411058 (C, 16A, 4P, 30mA, 230V)
-
- General
- Number of poles (total)4
- Number of protected poles2
- Rated voltage230 V
- Rated current16 A
- Rated fault current0.03 A
- Leakage current typeAC
- Current limiting class3
- Rated short-circuit breaking capacity according to EN 610096 kA
- Rated short-circuit breaking capacity according to IEC 60947-210 kA
- Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
- Surge current capacity0.25 kA
- Voltage typeAC
- Frequency50 Hz
- Release characteristicC
- Concurrently switching neutral conductorYes
- With interlocking deviceYes
- Pollution degree2
- Width in number of modular spacings4
- Built-in depth44 mm
- Flush-mounted installationYes
- Anti-nuisance tripping versionNo
- Degree of protection (IP)IP20
- Connectable conductor cross section solid-core1-35 mm²
- Connectable conductor cross section multi-wired1-25 mm²
