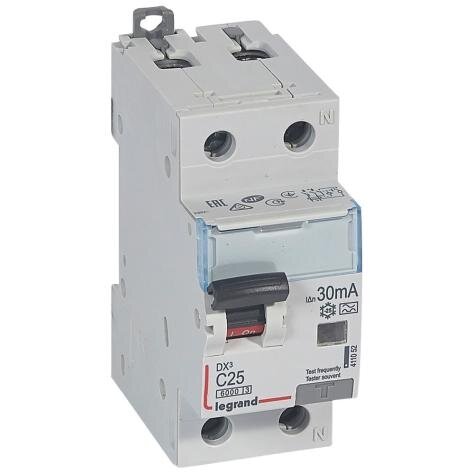

Current drain relay with automatic switch Legrand 411052 (C, 25A, 2P, 30mA, 230V)
-
- General
- Number of poles (total)2
- Number of protected poles1
- Rated voltage230 V
- Rated current25 A
- Rated fault current0.03 A
- Leakage current typeA
- Current limiting class3
- Rated short-circuit breaking capacity according to EN 610096 kA
- Rated short-circuit breaking capacity according to IEC 60947-26 kA
- Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
- Surge current capacity0.25 kA
- Voltage typeAC
- Frequency50 Hz
- Release characteristicC
- Concurrently switching neutral conductorYes
- With interlocking deviceYes
- Pollution degree2
- Width in number of modular spacings2
- Built-in depth44 mm
- Flush-mounted installationYes
- Anti-nuisance tripping versionNo
- Degree of protection (IP)IP20
- Connectable conductor cross section solid-core0.75-16 mm²
- Connectable conductor cross section multi-wired0.75-10 mm²
