  •   Converter ATTE XCOAX4-SET

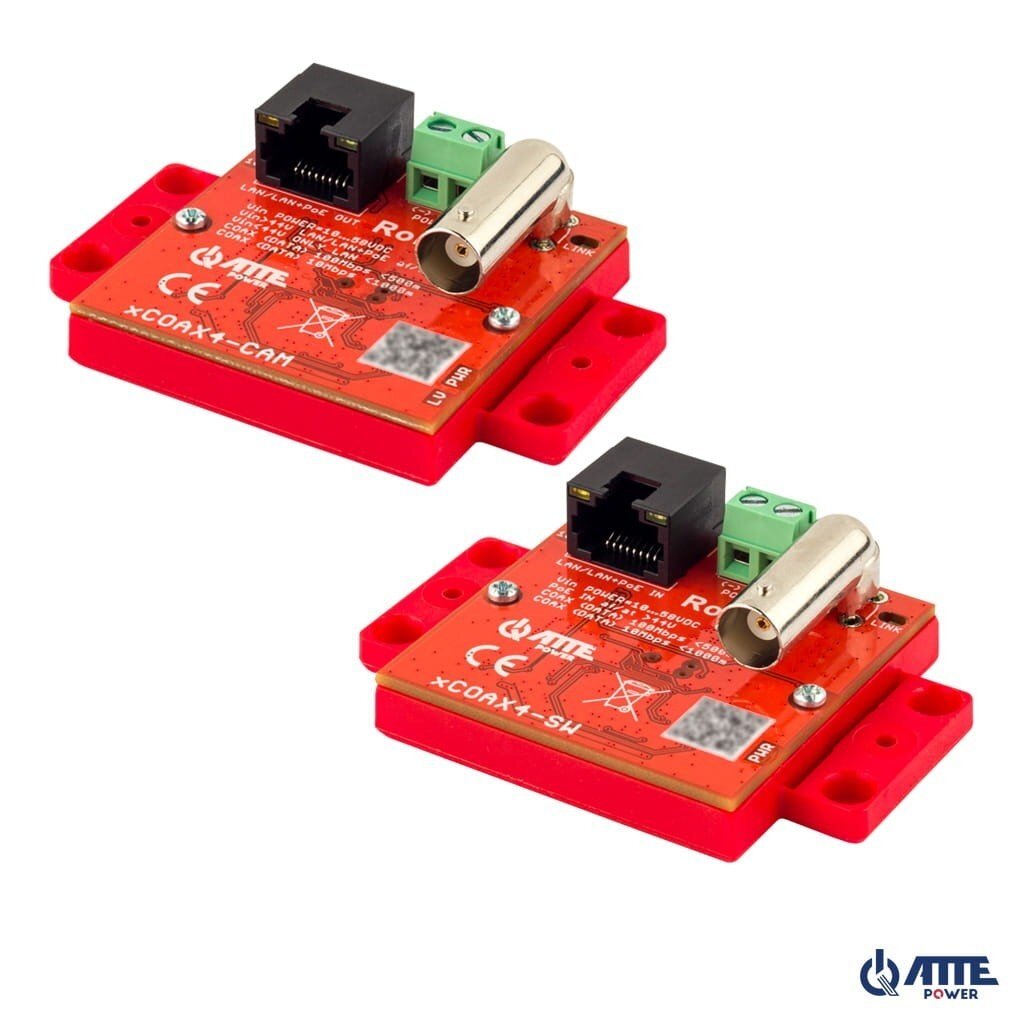

    Converter ATTE XCOAX4-SET

    Inquire about this item
    Price 107.43 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    • Specifications
    • Total number of ports:2 PoE Ports, 2 BNC Ports (female)
    • PoE IN:LAN/LAN + PoE IN 802.3af/at, PoE Passive
    • PoE OUT:LAN/LAN + PoE OUT 802.3af/at/bt60
    • PoE IN/OUT:LAN/LAN + PoE IN, LAN/LAN + PoE OUT
    • LAN 10/100Mbps ports:LAN/LAN + PoE OUT
    • Input Voltage:10 ... 58 V (for powering PoE receivers Vin>44V DC)
    • Output PoE Voltage:Vout = Vin (44... 58 V)
    • Maximum output power from the port:LAN/LAN + PoE OUT - 60 W
    • Power consumption:1,35 W (full channel)
    • Output power control:Auto-negotiation
    • Surge protection:LAN and BNC Ports
    • Overload protection:xCOAX4-SW - Short circuit protection with auto recovery
    • Length of coaxial cable:< 1000m - xCOAX4-SW to xCOAX4-CAM
    • Coaxial track signalling:LED LINK at the BNC connector (green) - link and data transmission in the COAX channe
    • Power indication:LED PWR - Power presence
    • PoE indication:LED port RJ45 (yellow) - PoE Power
    • Transmission indication:LED port RJ45 (green) - link and data transmission LED LINK at the BNC connector (green) - link and data transmission in the COAX channel
    • LAN bandwidth indication:LED 10Mb – LAN transmission in the XCOAX channel at a speed of 10Mbps
    • Low Voltage indication:LED LV Low Voltage signaling diode
    • Temperature range:-25°C ... +65°C
    • Dimensions:51(73) x 51 x 23 mm
    • Weight:0,06 kg
    • IP rating:IP20
    • Housing construction:Uniwersal mounting base
    • Assembly:Mounting studs, TH35 rail with additional bracket, can be screwed to flat surface
    • EAN code:5902143691464
    • PKWiU code:26.30.23.0
    • HS code:8517 62
    • CN2020 code:8517 62 00
