  •   Control panel and keypad set SECOLINK PAS832+KM24A

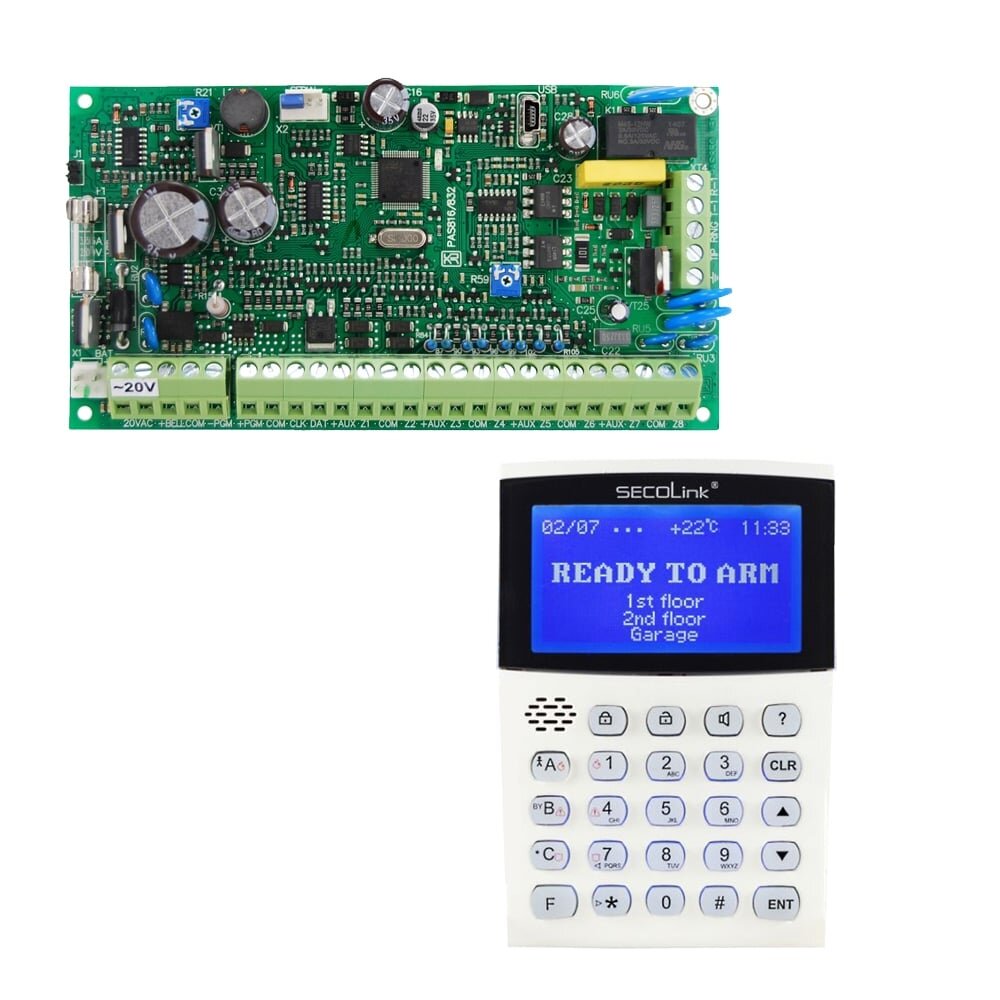

    Control panel and keypad set SECOLINK PAS832+KM24A

    Inquire about this item
    Price 113.65 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Secolink

  • Control panel
    On-board wired zones8/16 (doubling)
    2-wire smoke detector input-
    On-board wireless zones-
    Maximum zones in system32
    On-board PGM3
    Maximum PGM in system16
    User + installer codes31+1
    Duress codeX1, X2, X3, X4 (when X4 = X4 + 1)
    Defaulting user codeYes
    Key switch zoneYes
    Partitions4
    "Shared" partition (common area)Yes
    System timers16
    Maximum keypads/modules in system15
    Event log buffer512
    PSTN communicatorIn-built
    In-built interface for backup communicatorTTL Serial
    Data bus protocolKRBUS
    Total phone numbers: CMS reporting + personal dialing4
    Maximum phone numbers for personal dialingUp to 4
    Maximum phone numbers for CMS reportingUp to 4
    Reporting protocolContact ID, 4x2
    Voice guide for system control over PSTNPAS832 V3 only
    Voice guide for system programming over PSTNPAS816 V3 only
    "Roller" detector typeYes
    "Vibration" detector typeYes
    "Vibration" zone speed (sensitivity)0.01 - 0.25 sec.
    Normal zone speed (sensitivity)0.1 - 2.5 sec.
    Zone loop (detector) typeNC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL, Vibration, Roller
    Arming modeAway, Max Away, Night, Stay.
    Zone definitionEntry/exit, entry/exit forced, interior, interior night armed, follower, interior night follower, perimeter, instant, PGM control;
    24h: burglary, panic silent, panic audible, tamper, fire, smoke, fire button, medical button, fire supervisory, low water level, RF Jam, gas detected, water leakage, high temperature, low temperature
    Zone attributesEnable bypass, no alarm, arm when door is closed, entry route, exit route, fire verification, limitation of alarms, limitation of reporting, pre-alarm, armed night
    PGM definitionFire alarm, fire/burglary alarm, burglary alarm, tamper alarm, technical alarm, selected alarms, chime, zone violation, bypass status, selected trouble, exit/entry warning, exit/arm status, full arm status, power supply, resettable power supply, fire power supply, timer, mono/bi switch
    PGM attributesInversion, pulsation, latch, pre-alarm, arm notification, arming failure notification, disarm notification, clear alarm notification
    Rated voltage of power supply (AC)~20 V
    Minimum AC voltage
    (note: ~16 V input voltage lets control panel to generate max 0.7 A output current)    		~16 V
    Maximum AC voltage
    (Note: higher than ~22 V voltage can damage control panel)    		~22 V
    Maximum long term output current of control panel (I+AUX + I+BELL + I+PGM + battery charge)≤1.5 A
    Maximum current of slow blowing fuse used in primary AC250 mA
    Maximum AC power consumption150 mA
    Minimum voltage on +AUX, +BELL, +PGM outputs12 V
    Maximum voltage on +AUX, +BELL, +PGM outputs13.9 V
    Maximum current out of +AUX+1 A
    Maximum current out of +BELL+2 A
    Maximum current into -PGM-0.05 A
    Maximum current out of +PGM+0.9 A
    Short circuit, overload protection of +BELL, +PGM, +AUXElectronic
    Battery charge, +BELL, +AUX current measurementYes
    Failed (waste) backup battery disconnectionYes
    Maximum battery charging current+0.4 A
    Maximum current of fast blowing fuse used in battery circuit3.15 A
    Control panel disconnect battery when it’s voltage less than9.5 V
    Recommended backup battery12 V, 7 Ah / 20 Hr
    Operational compliance+EN50131, Grade2
    Overall dimensions W x H in mm145 x 77
    Environmental complianceROHS
    Operating temperature-10oC up to +50oC
    Production statusV2 discontinued, V3 in production
    Latest firmware versionV2: firmw_832_v2.03b
    V3: firmw_832_v.3.02
    In-field firmware upgrade (by USB)PAS832 V3 only
    Keypad
    On-Board zones2
    On-Board PGM1 (open collector up to 15 mA)
    Ambient temperature measurementYes
    LCD typeGraphic: 128 x 64 dots
    Keys in keypad24
    Programmable fast keys (F-Keys)32
    Data bus protocolKRBUS
    Zone loop (detector) typeNC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL
    Maximum wiring distance to CP300 m
    Power supply9 - 14 V
    Voltage measurement on keypadYes
    Current consumptionBacklight on 80 mA, Backight off < 68 mA.
    On-Board sounderSpeaker
    Backlight color Display = blue, keypad = blue
    Character setMajor character sets of the world.
    User interface typeNavigation menu with short help text system.
    Overall dimensions W x H in mm92 x 133
    Environmental complianceROHS
    Operating temperature0oC up to +50oC
    Interface for keypad settings programmingUSB
    Interface for keypad firmware updatingUSB
