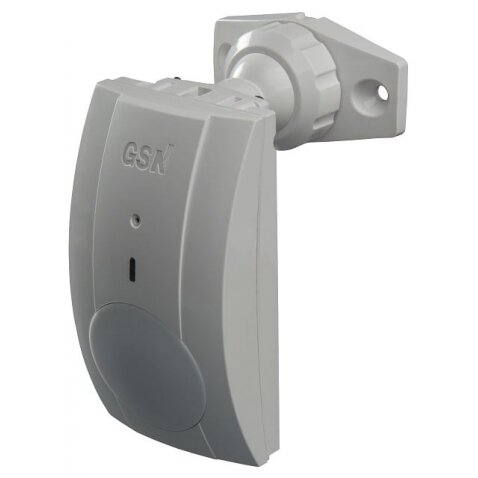

Combined Detector PATROL 803 PET

Input voltage

8.5-16VDC

Current consumption in standby mode

17.7mA

Current consumption in alarm mode

19mА

Warm up period

60sec

PIR detection range

15.6m x 120º

PIR detection speed range

0.3 – 3m/sec

Glass break detection range

12m x 160º

Relay output

NC; 60V; 100mA; 16Ω

Tamper output

NC; 10Ω

Alarm period

3sec

Reset time

5 ± 1sec

PET mode

10/20/30kg

Installation height

2.0 – 2.5m

Light immunity without sunshield filter

no less than 6500 Lux

Light immunity with sunshield filter

   more than 30 000 Lux

Operating temperature range

– 30ºC +60ºC

Storage temperature range

– 50ºC +80ºC

RFI immunity

30V/м at a frequency range 30MHz-1GH

EMI immunity

50 000V

Dimension

54mm x 33mm x 99mm

Weight

82gr
