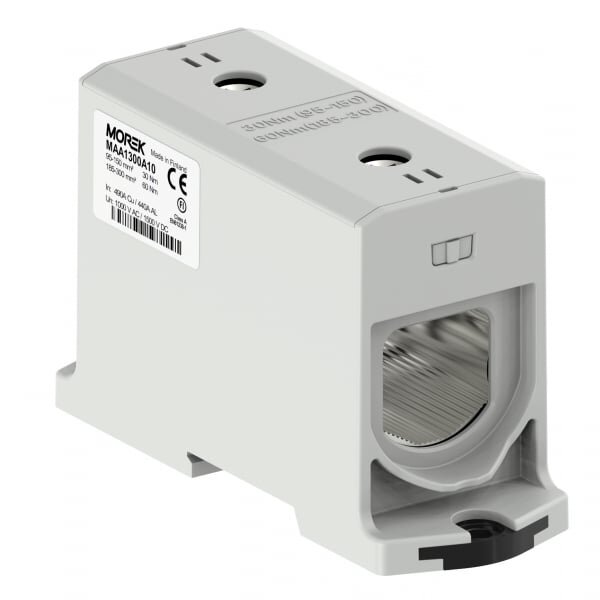

Clamp OTL300 1x95-300mm2 Morek MAA1300A10 (gray)
-
- General
- Colorgray
- Cable typeAl/Cu
- Cross section min. (mm²)95
- Cross section max. (mm²)300
- Input cable min. (mm²)95
- Input cable max. (mm²)300
- Output cable min. (mm²)95
- Output cable max. (mm²)300
- Number of connections2
- Rated current (A)490 (Cu) / 440 (Al)
- Rated voltage (V)1000 V AC / 1500 V DC
- Operating temperature (°C)-25 ÷ +80
- MaterialAlavuotas aliuminis, poliamidas PA66
- Installation methodDIN bėgelis, varžtas
- Product width (mm)44
- Product length (mm)122
- Product height (mm)71
- Product weight (g)332
- ScrewHex 8
- The length of the uninsulated conductors (mm)40
- Tightening torque (Nm)30 Nm (95 - 150 mm²) 60 Nm (185 - 300 mm²)
- IP ratingIP20
- CertificationEN 61238-1; EN60947-7-1
- Flame resistanceUL94 V0
- CN8 kodas85369010
