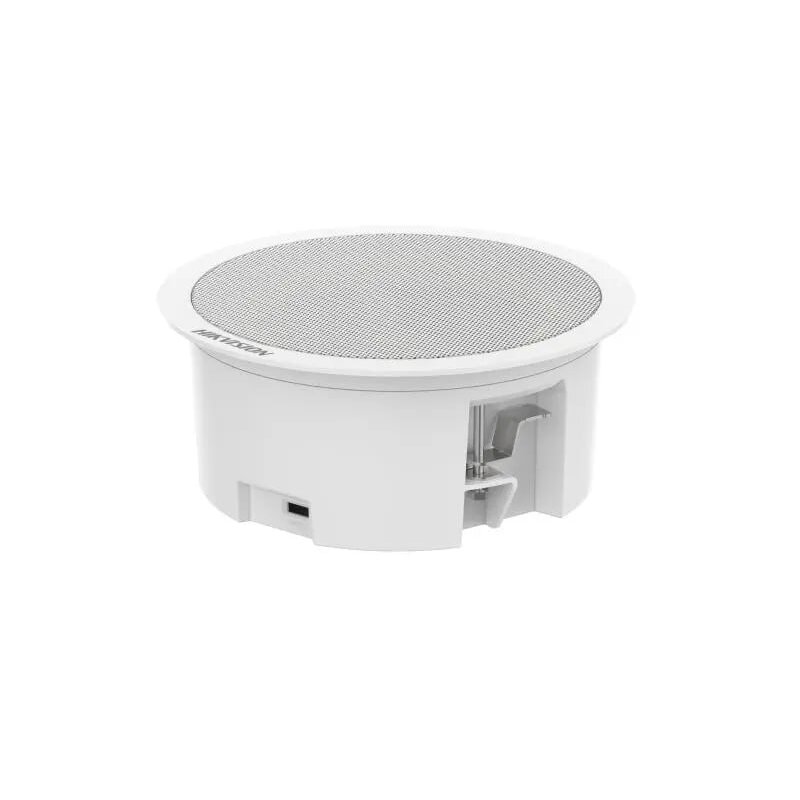

  •   Ceiling Speaker Hikvision DS-QAZ1203G1-BE (3W, 93dB, 8 Om, IP, BT)

    Ceiling Speaker Hikvision DS-QAZ1203G1-BE (3W, 93dB, 8 Om, IP, BT)

    Inquire about this item
    Price 134.94 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Speaker
    • Rated Power3 W
    • Impedance8 Ω
    • Max. Acoustic Pressure97 dBSPL
    • Sensitivity(1 m, 1 W)93 dB
    • DirectionAll directions
    • Frequency Response300 Hz to 15 kHz
    • SNR82 dB
    • Function
    • Audio AlgorithmAEC、AGC、ANS、DRC
    • Audio Bit RateG.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)
    • Audio File FormatMP3, WAV
    • NTP TimingSupport
    • BroadcastRegular broadcast, live broadcast, emergency broadcast
    • Speech SynthesisEnglish
    • Functions
    • Audio FunctionSupports digital noise reduction, manually adjustable for 5 gears to ensure communication/audio quality.
    • Communication
    • Communication MethodSupport wired network and bluetoothcommunication
    • Interface
    • Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
    • Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
    • APIISAPI, ISUP, SIP
    • AlarmAlarm input × 2
    • Audio In3.5 mm audio interface × 1
    • Audio OutFixed resistance output × 1，phoenix terminal，8 Ω
    • General
    • PowerPoE: 802.3at，12 VDC/1.5 A
    • MaterialDevice body: plastic; Mesh cover: metal
    • Language5 languages: English, French, Spanish, German, Italian
    • DimensionØ179 mm × 73.5 mm (Ø7.05" × 2.89") (Hole size: 160 mm）
    • Package Dimension255mm × 243mm × 175mm (10.04" × 9.57" × 6.89")
    • WeightApprox. 0.3 kg (0.66 lb.)
    • With Package WeightApprox. 0.5 kg (1.1 lb.)
    • ColorWhite
    • Packing List

      Device × 1

      Mesh cover × 1

      Regulatory Compliance and Safety Information × 1

    • Operating Temperature-10 °C to 50 °C(14 °F to 122 °F)
    • Operating Humidity＜90% (No condensation)
    • Approval
    • RF

      CE-RED:EN 301489-1 V2.2.3 (BT or 2.4G),EN 301489-17 V3.2.4 (BT or 2.4G),EN 300 328 V2.2.2 (BT or 2.4G) ,EN62311 2020(BT or 2.4G)

      RCM: EN 300 328 V2.2.2 (BT or 2.4G) ,AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note

      IC ID: RSS-247(BT or 2.4G)

      ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018

    • EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
    • Safety

      CB: IEC 62368-1:2014

      CE-LVD: EN 62368-1:2014/A11:2017

    • Environment

      CE-RoHS: 2011/65/EU

      WEEE: 2012/19/EU

      Reach: Regulation (EC) No 1907/2006
