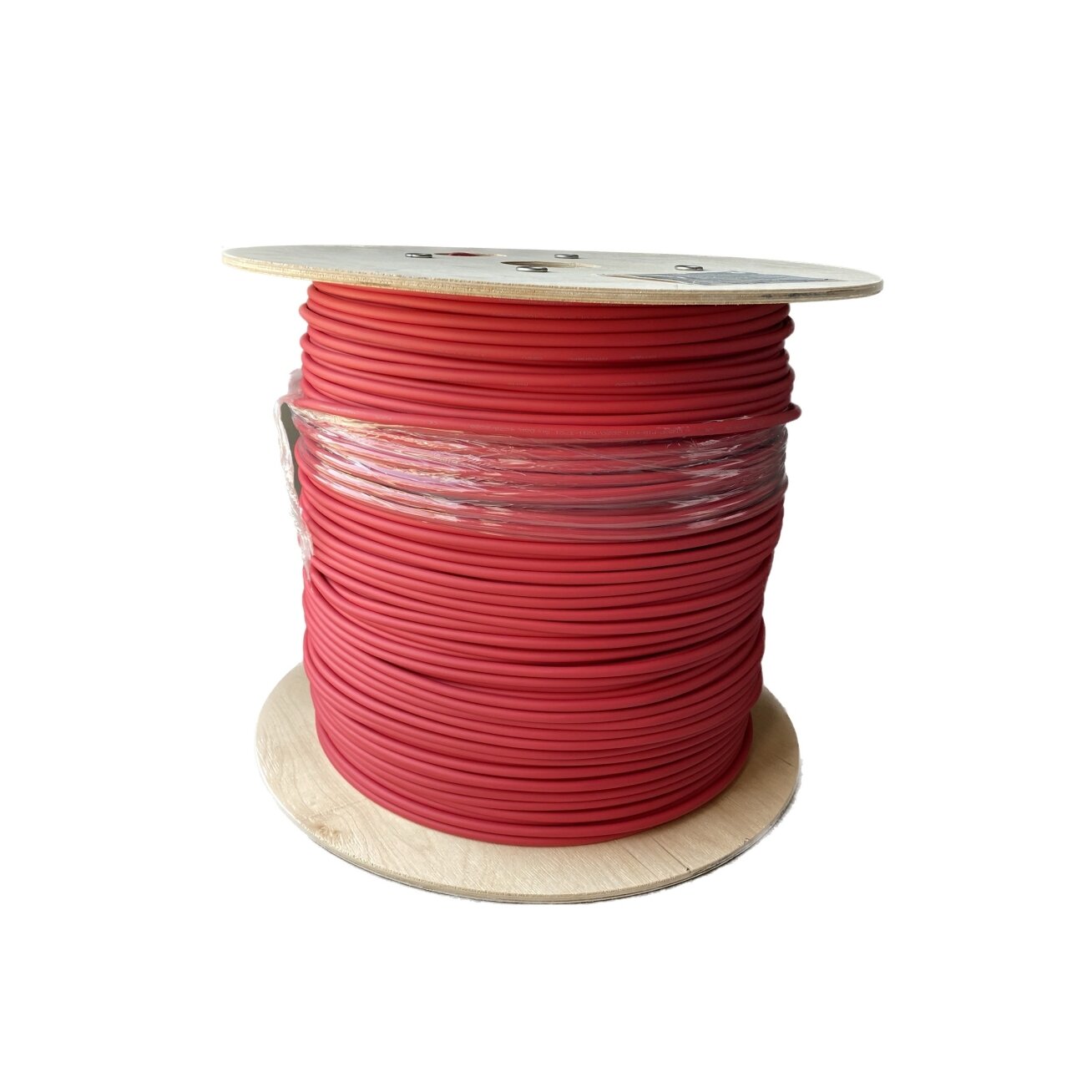

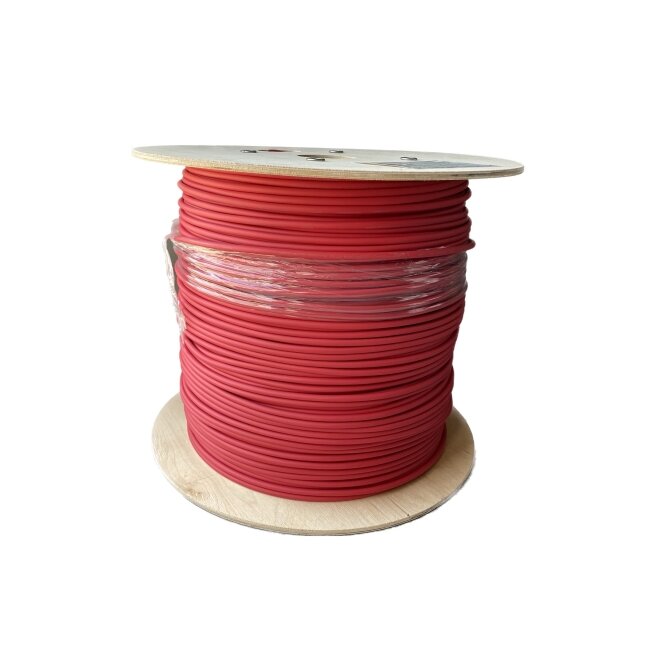

Bitner HTKSHekw 1x2x0.8mm halogen-free screened fire-resistant cable (solid conductor, B2ca-s1a,d0,a1, 500m)
ManufacturerBitner-
- General
- Cable1x2x0.8mm, Screened, Cca s1b,d2,a1, Price for 100m
- Temperature rangeFixed installation: -30°C up to 80°C, During installation: -5°C up to 50°C
- Operating voltage225V
- Test voltageAC 1500 V, DC 2250 V
- Insulation resistance (minimum)500 MΩ*km
- Pair loop resistance at 20°C (maximum)0.8 mm - 75 Ω/km, 1.0 mm - 48 Ω/km, 1.4 mm - 26.6 Ω/km, 1.8 mm - 14.96 Ω/km, 2.3 mm - 9.6 Ω/km, 2.8 mm - 6.4 Ω/km
- Mutual capacitance of pair at 1kHz (maximum)Unscreened cable: 120 nF/km, Screened cable: 150 nF/km
- Inductance0.7 mH/km
- Min. bending radius10 x Ø
