  •   Battery Power Bubble PB12013 (1.3Ah, 12V)

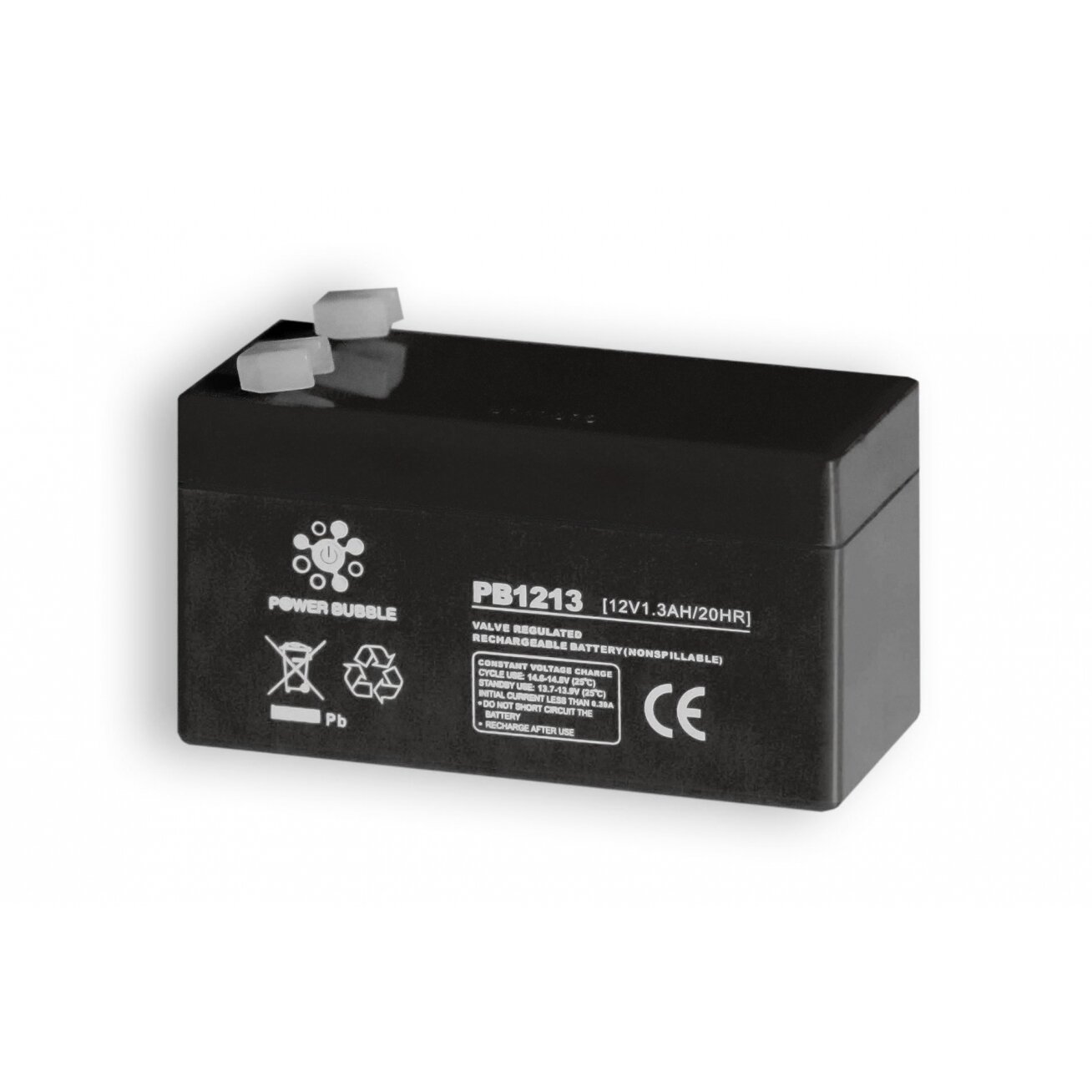

    Battery Power Bubble PB12013 (1.3Ah, 12V)

    Inquire about this item
    Price 9.58 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs

    • General
    • Cells per unit6
    • Voltage per unit12V
    • Nominal Capacity1.3Ah@20hour-rate to 1.75V per cell@25C
    • Weight0.5 kg (± 5%)
    • Internal resistance≤ 95 mΩ
    • TerminalF1
    • Max. discharge current13A (5 sec)
    • Short circuit current68A
    • Design life6-8 years
    • Max. charging current0.39A
    • Reference capacityC3 0.98Ah C5 1.11 C10 1.22Ah C20 1.30 Ah
    • Standby use capacity13.7V~13.9V @ 25°C Temperature Compensation: -3mV/'C/Cell
    • Cycle use voltage14.6 V~14.8V @ 25°C Temperature Compensation: -4mV/°C/Cell
    • Operating temperature rangeDischarge: -20'C~60C Charge: 0°C~50C Storage: -20'C~60°C
    • Normal operating temperature range25C+5C
    • Self dischargeRITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25°C and then recharging is recommended. Monthly Self-discharge ratio is less. than 3% at 25'C Please charge batteries before using
    • Container materialA.B.S. UL94-HB, UL94-V0 Optional
