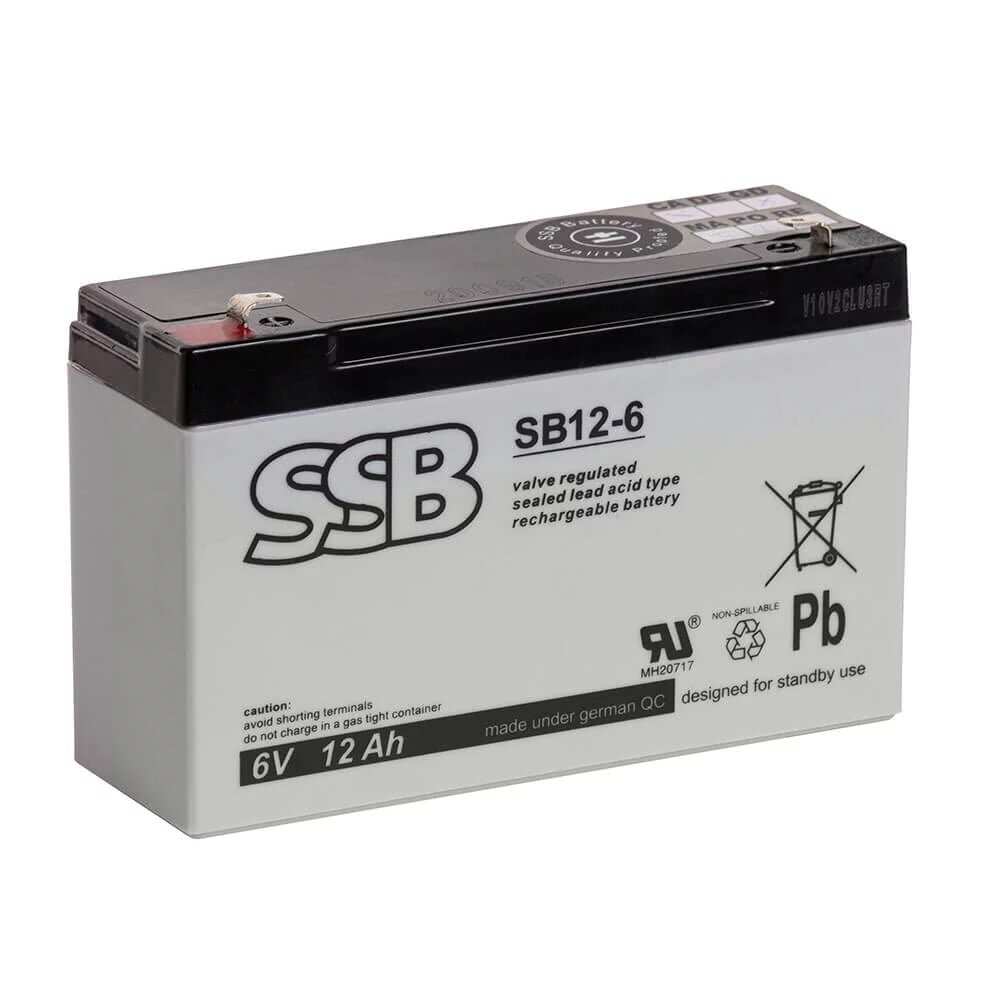

Battery (AGM) SSB SB (12Ah, 6V, F1, VRLA)
-
Battery (AGM) SSB SB (12Ah, 6V, F1, VRLA)
-
- General
- Nominal voltage6 V
- Nominal capacity12 Ah @ C20 to 1.75 V/cell
- TechnologyAGM (Absorbent Glass Mat), VRLA (Valve Regulated Lead Acid)
- Weight~ 1.65 kg
- Design life time6–9 years (standby use), General Purpose acc. Eurobat
- Internal resistance~ 12 mΩ (fully charged)
- Operating temperature rangeDischarge: -20°C to +60°C, Charge: 0°C to +50°C, Storage: -20°C to +60°C
- Maximum discharge current120 A (5 seconds)
- Short circuit current580 A
- Maximum charging current3.6 A
- Charging voltageStandby use: 6.85 – 6.94 VDC, Cycle use: 7.30 – 7.40 VDC
- Self dischargeMonthly loss less than 3% at 25°C
- Container materialABS UL94HB (optional UL94-V0)
- Dimensions (L x W x H)150 ±1.5 mm x 50 ±1.5 mm x 93 ±1.5 mm
- Total height99 ±1.5 mm
- Terminal typesFast-on 4.8 mm
- Standards metPN-EN 60896-21:2007, PN-EN 60896-22:2007, PN-EN 61056-1:2013, PN-EN 61056-2:2013, PN-E-83016:1999
- CertificationsISO 9001, ISO 14001
- ApplicationsUPS, Emergency Lighting, Fire Alarm Systems, Security Systems, Energy Utilities, DC Power Supply
