  •   AVTECH PTZ DGM5937SVATP (5MP, 20x zoom)

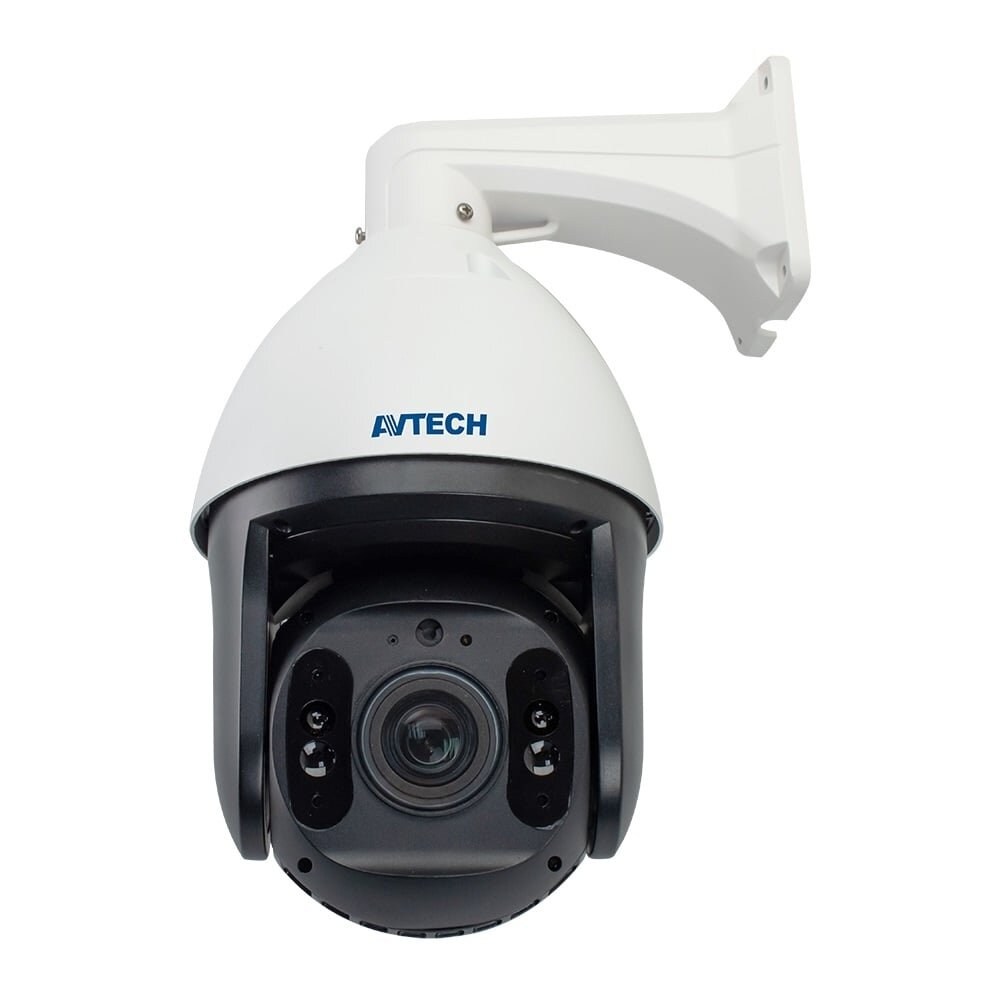

    AVTECH PTZ DGM5937SVATP (5MP, 20x zoom)

    Inquire about this item
    Price 697.99 €
    Want another price? Suggest yours!
    In stock: 0 pcs

    • General
    • Image Sensor1/2.8” SONY CMOS
    • Max. Resolution2560 x 1944
    • Lensf4.7 ~ 94mm / F1.6 - F3.5
    • Viewing AngleTele 2.9° ~ Wide 64° (Diagonal)
    • Min Illumination0.001 Lux (IR LED off), 0 Lux (IR LED on)
    • Shutter SpeedAUTO, 1/25s ~ 1/100000s
    • IR LED8 units
    • IR Effective DistanceUp to 120 meters
    • Day / NightYES
    • WDR Mode YES(120dB)
    • RTC (real-time clockYES
    • CompressionH265 / H.264
    • Video ResolutionMain Stream 5MP (2592x1944) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1080P) / 720P Sub Stream D1 / VGA / 640x360 / 480x360 / CIF
    • Frame Rate5MP @ 25FPS
    • Video ProfileHigh profile / Main profile / Base profile
    • Multiple VideoStreaming 2 streams
    • Bitrate Control512Kbps - 12Mbps、VBR/CBR
    • Image EnhancementWDR / BLC / HLC / 2D DNR / 3D DNR / AWB / MWB / AGC
    • Day / Night SwitchAuto / Color / (B/W) / Timing
    • Forced Anti-flickerYES
    • DefogYES
    • White BalanceAuto / Manual
    • Image OrientationRotate / Mirror
    • Privacy MaskYES
    • Text OverlayYES
    • OSD TitleLocation / font size / text configurable; text input (English & Chinese characters) and image upload (BMP) supported
    • Microphone built-inYES
    • Line outYES
    • EncodingG.711-u / G.711-a
    • Audio AdjustmentYES
    • Detection ModeMotion / Human / Vehicle Detection with Auto Tracking
    • Detection ScheduleYES
    • Motion Detection Area1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18
    • Detection AlertAudio alert with customized mp3 audio file(s)
    • LAN PortRJ45 connector x 1 / 4KV lightning-proof
    • LAN Speed100Mbps Based-T Ethernet
    • Supported ProtocolsHTTP / RTSP / FTP / SMTP / DHCP / NTP / NFS / RTMP
    • ONVIF CompatibleOnvif 17.06 compatible
    • Number of Online Users6
    • Remote AccessInternet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome
    • Pan Range360° continuous rotation
    • Pan Speed0.5° ~ 60°
    • Tilt Range-15° ~ 90°/s
    • Zoom Ratio20X Optical Zoom
    • Auto TrackingYES
    • Proportional ZoomYES
    • Preset PointsUp to 255 preset points
    • Web Interface LanguageEnglish, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean
    • Operating Temperature-30℃ ~ 60℃
    • Operating Humidity10% ~ 90%RH
    • POE IEEE802.3at
    • Power Source (±10%)PoE / DC12V
    • Power Consumption (±10%)< 20 W
    • Net Weight (kg)2.5
    • CasingIP66
