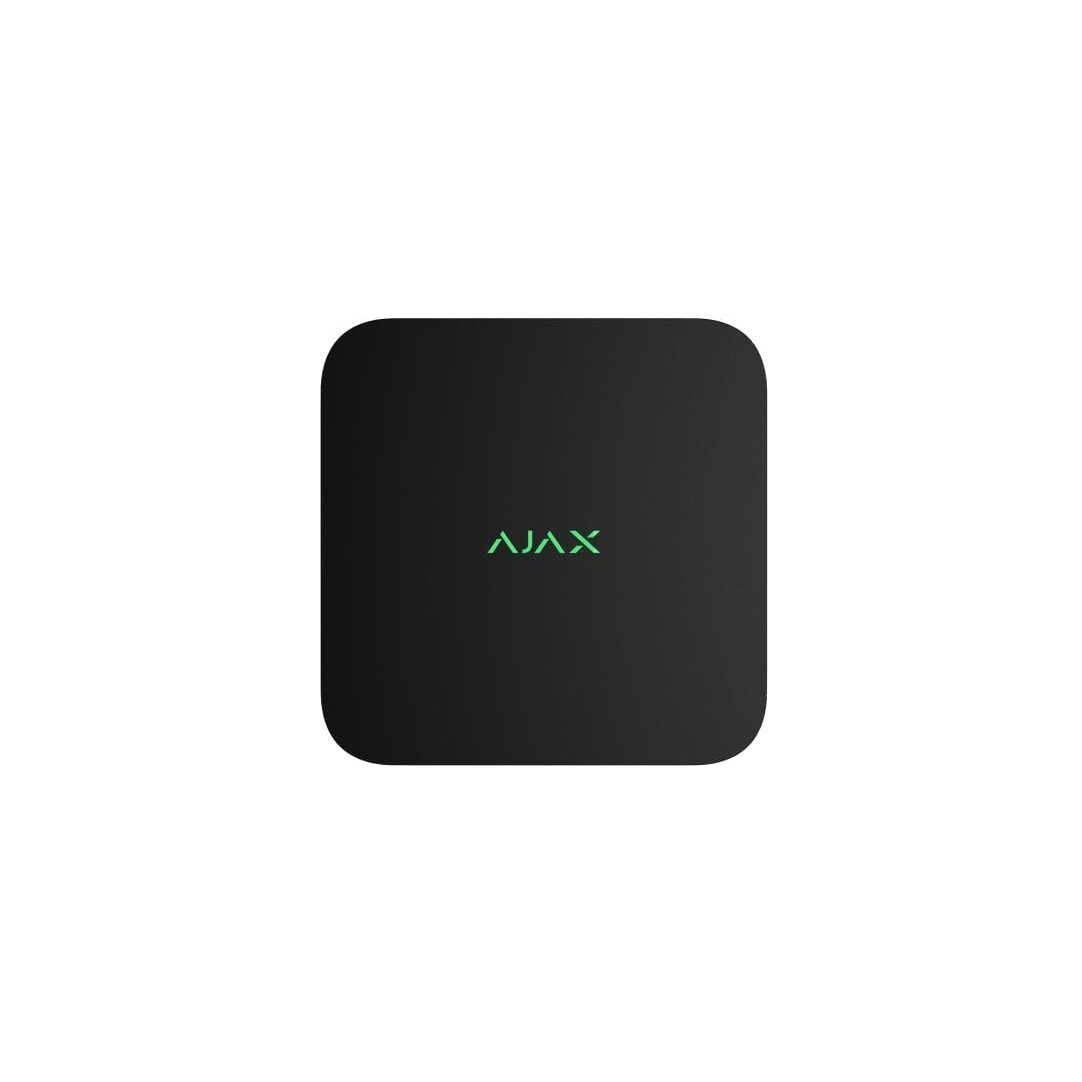

  •   Ajax NVR 70936.122.BL (black, 8 channels)

    Ajax NVR 70936.122.BL (black, 8 channels)

    Inquire about this item
    Price 287.60 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • Videostream
    • NVR models8-channel, With up to 4K resolution (25/30 FPS).
    • IP camerasONVIF (Profile S/T), RTSP, Learn more
    • Storagehard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size), HDD not included. The hard drive with power consumption of up to 7 W can be connected.
    • Decoding formatsH.265 H.264
    • Bandwidthup to 100 Mbps
    • Communication channels
    • Ethernetup to 100 Mbps
    • BluetoothBLE frequency band: 2.400–2.4835 GHz, To set up an Ethernet connection.
    • Radio signal power2.5 mW (100 mW limit)
    • Key features
    • Motion detectionNVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms.
    • In-app video management systemVideowall that combines images from all connected cameras., Event filters., Timeline with smooth preview.
    • Visual verification of Ajax alarmsNVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording. This results straight in mobile and desktop (monitoring) apps.
    • Support for ONVIF authorizationProfile S, Profile T (partially), Ajax cameras and NVRs can be integrated into third-party video management systems (VMS)., Learn more
    • PrivacyAccess rights distribution for users in mobile apps and for monitoring operators in PRO Desktop.
    • Power supply
    • Main110–240 V~, 50/60 Hz, 0.6 A, Up to 24 W of mains power consumption.
    • BackupCR2032 battery, 3 V, Only to power the system clock.
    • Sabotage protection
    • Tamper alarmNotifications about attempts to detach the device from the surface or remove it from the mounting panel., Learn more
    • Enclosure
    • Dimensions7.60″ × 7.60″ × 1.85″
    • Weight21.68 oz, Without a hard drive.
    • Operating temperature rangefrom 32 °F to 104 °F
    • Operating humidityup to 75%
    • Protection classIP20
