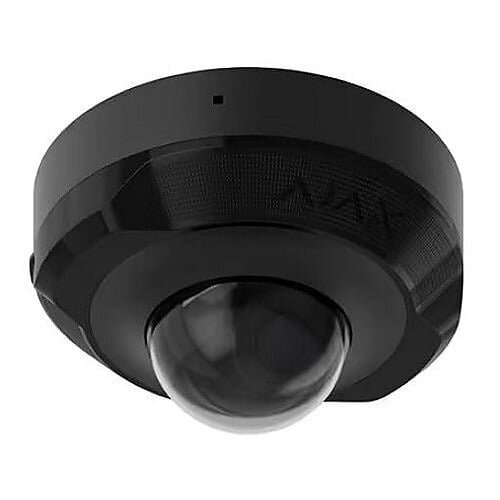

  •   Ajax DomeCam Mini 76023.214.BL1 F2.8 (black, 8MP, 15m IR, True WDR, IP65)

    Ajax DomeCam Mini 76023.214.BL1 F2.8 (black, 8MP, 15m IR, True WDR, IP65)

    Inquire about this item
    Price 338.17 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    • General
    • Resolution5 MP: Up to 2,880 × 1,620 px @ 25 fps (3K UHD), 8 MP: Up to 3,840 × 2,160 px @ 20 fps (4K UHD)
    • Lens2.8 mm: 100°–110° viewing angle, 4 mm: 75°–85° viewing angle
    • Day/Night SwitchAutomatic
    • Image processingTrue WDR (hardware and software)
    • Video compressionH.265, H.264
    • Bitrate100 Mbps full-duplex
    • Simultaneous live viewUp to 5 channels
    • User accessUp to 200 users
    • Alarm triggerMotion detection, AI-recognition, Detector alarm, Automation scenarios
    • AI object recognitionHumans, vehicles, pets¹
    • Video streaming protocolONVIF, RTSP
    • MicrophoneDigital microphone with G722 codec
    • IR illuminationUp to 30 m
    • EnclosureIP65, metal housing
    • Dimensions113 × 60 mm
    • Weight360 g
    • ColorsBlack, White
    • Operating temperature range–30 °C to +60 °C (–22 °F to +140 °F)
    • Operating humidityUp to 90%
    • Power supply12 V ± 20%, 1 A, PoE standard 802.3af, Class 3
    • Max. power consumptionUp to 7.5 W
    • Storage supportUp to 256 GB SD card
    • CompatibilityAll Ajax hubs (up to 200 cameras), Ajax NVR
    • ComplianceCE, FCC, RED, RoHS, NDAA
    • InstallationQR code setup, configuration via Ajax apps, adjustable motion detection zones, real-time supervision with health checks
    • Complete setDomeCam Mini, Installation template, Installation kit, Quick start guide
