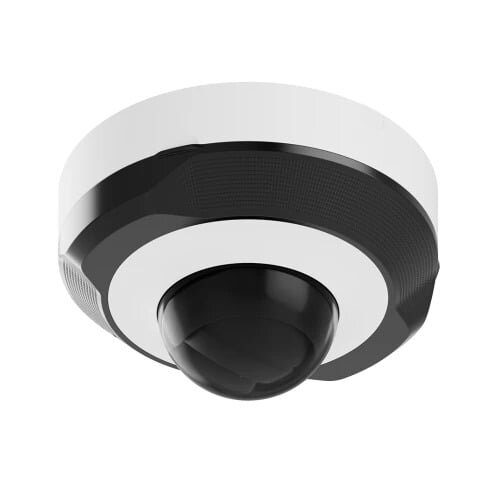

Ajax DomeCam Mini 76018.214.WH1 F2.8 (white, 5MP, IR, True WDR, IP65)
-
- General
- Product nameDomeCam Mini wired AI-powered IP security camera with IR illumination, True WDR, microphone, PoE/12 V, for outdoor and indoor use :contentReference[oaicite:0]{index=0}
- Resolution5 MP (up to 2880 × 1620 px @ 25 fps), 8 MP (up to 3840 × 2160 px @ 20 fps)
- Lens options2.8 mm (100°–110° viewing angle), 4 mm (75°–85° viewing angle)
- DORI distance5 MP 2.8 mm: Detection 65 m, Observation 26 m, Recognition 13 m, Identification 6.5 m; 5 MP 4 mm: 86 m, 34.4 m, 17.2 m, 8.6 m; 8 MP 2.8 mm: 90 m, 36 m, 18 m, 9 m; 8 MP 4 mm: 117.5 m, 47 m, 23.5 m, 11.6 m
- Image processingTrue WDR (hardware and software)
- Video compressionH.265, H.264
- Bitrate100 Mbps full-duplex
- Simultaneous live viewUp to 5 channels
- IlluminationIR up to 15 m (49 ft)
- Video streamONVIF, RTSP
- AI featuresObject recognition (people, pets, vehicles), motion detection, visual verification
- AudioBuilt-in digital microphone
- NetworkingEthernet 10/100 Mbps (RJ-45), PoE 802.3at/af
- Power supply12 V DC ±20%, 1 A or PoE; power consumption up to 8.5 W
- StorageSupports microSD card up to 256 GB
- SecurityMutual TLS authentication, TLS-encrypted streams, multi-tier account protection, digital signature export, NDAA compliant
- InstallationOperating temperature −30°C to +60°C, humidity up to 90%
- EnclosureDimensions 114 × 114 × 67 mm, weight 430 g, colors black/white
- Protection classIP65, IK08
- ComplianceCE, RoHS, NDAA
- System integrationAjax apps, Ajax Cloud, ONVIF/RTSP support, local NVR and third-party VMS compatibility
- Included in boxDomeCam Mini, installation template, installation kit, quick start guide
