  •   Adapter UBIQUITI POE-24-7W-G-WH-EU

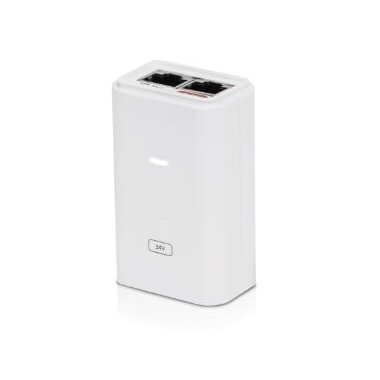

    Adapter UBIQUITI POE-24-7W-G-WH-EU

    Inquire about this item
    Price 7.68 €
    Want another price? Suggest yours!
    In stock: 0 pcs

    • General
    • POE-24-7W-G-WH (Low-Power)
    • Dimensions72 x 45 x 33 mm (2.8 x 1.8 x 1.3")
    • Weight72.1g (2.5 oz)
    • Output voltage24V DC @ 0.3A
    • LAN activity indicatorNo
    • Gigabit LAN portYes
    • Remote reset capabilityYes
    • Reset buttonYes
    • Rated voltage100-240V AC @ 50/60Hz
    • Input current0.3A @ 120V AC, 0.2A @ 240V AC
    • Inrush current<40A peak @ 120V AC, <70A peak @ 230V AC
    • Efficiency80+%
    • Output ripple1% Max.
    • Switching frequency65 kHz
    • Line regulation≤ 3%
    • Load regulation≤ 5%
    • 2-pair poweringPins 4, 5 (+) and pins 7, 8 (-)
    • 4-pair powering–
    • Storage temperature-30 to 70°C (-22 to 158°F)
    • Ambient operating temperature0 to 40°C (32 to 104°F)
    • Operating humidity35 to 95% noncondensing
    • AC connectorIEC-320 C6
    • Data IN / PoERJ45 shielded socket
    • Surge protectionDifference and common mode
    • Clamping protection11V data, 60V power
    • Max. surge discharge1500A (8/20 μs) power
    • Peak pulse current36A (10/1000 μs) data
    • Shunt capacitance<5 pF data
    • Response time<1 ns
    • CertificationsCE, FCC, IC, UL
    • POE-24-12W-G (Mid-Power)
    • Dimensions87 x 44 x 29 mm (3.4 x 1.7 x 1.1")
    • Weight99 g (3.5 oz)
    • Output voltage24V DC @ 0.5A
    • LAN activity indicatorNo
    • Gigabit LAN portYes
    • Remote reset capabilityYes
    • Reset buttonYes
    • Rated voltage100-240V AC @ 50/60Hz
    • Input current0.3A @ 120V AC, 0.2A @ 240V AC
    • Inrush current<30A peak @ 120V AC, <60A peak @ 230V AC
    • Efficiency75+%
    • Output ripple1% Max.
    • Switching frequency50 kHz
    • Line regulation≤ 3%
    • Load regulation≤ 5%
    • 2-pair poweringPins 4, 5 (+) and pins 7, 8 (-)
    • 4-pair powering–
    • Storage temperature-30 to 70°C (-22 to 158°F)
    • Ambient operating temperature0 to 40°C (32 to 104°F)
    • Ambient operating humidity35 to 95% noncondensing
    • AC connectorIEC-320 C6
    • Data IN / PoERJ45 shielded socket
    • Surge protectionDifference and common mode
    • Clamping protection11V data, 60V power
    • Max. surge discharge1500A (8/20 μs) power
    • Peak pulse current36A (10/1000 μs) data
    • Shunt capacitance<5 pF data
    • Response time<1 ns
    • CertificationsCE, FCC, IC, UL
    • POE-24-24W-G (Hi-Power)
    • Dimensions88 x 57 x 33 mm (3.5 x 2.2 x 1.3")
    • Weight159 g (5.6 oz)
    • Output voltage24V DC @ 1.0A
    • LAN activity indicatorNo
    • Gigabit LAN portYes
    • Remote reset capabilityYes
    • Reset buttonYes
    • Rated voltage100-240V AC @ 50/60Hz
    • Input current0.6A @ 120V AC, 0.4A @ 240V AC
    • Inrush current<60A peak @ 120V AC, <120A peak @ 230V AC
    • Efficiency80+%
    • Output ripple1% Max.
    • Switching frequency65 kHz
    • Line regulation≤ 3%
    • Load regulation≤ 5%
    • 2-pair poweringPins 4, 5 (+) and pins 7, 8 (-)
    • 4-pair powering–
    • Storage temperature-30 to 70°C (-22 to 158°F)
    • Ambient operating temperature0 to 40°C (32 to 104°F)
    • Ambient operating humidity35 to 95% noncondensing
    • AC connectorIEC-320 C6
    • Data IN / PoERJ45 shielded socket
    • Surge protectionDifference and common mode
    • Clamping protection11V data, 60V power
    • Max. surge discharge1500A (8/20 μs) power
    • Peak pulse current36A (10/1000 μs) data
    • Shunt capacitance<5 pF data
    • Response time<1 ns
    • CertificationsCE, FCC, IC, UL
