  •   Access system scanner Ubiquiti UniFi UA-G2 (Black)

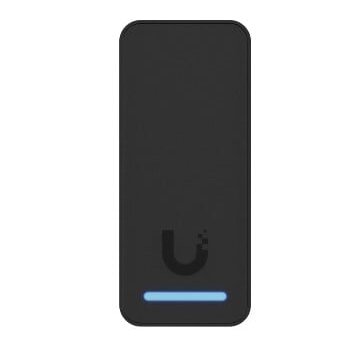

    Access system scanner Ubiquiti UniFi UA-G2 (Black)

    Inquire about this item
    Price 168.74 €
    Want another price? Suggest yours!
    In stock: 0 pcs

    • General
    • Dimensions93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
    • Weight82 g (2.9 oz)
    • Enclosure materialPolycarbonate, glass
    • MountingIn wall, gang box
    • WeatherproofingIP55
    • Networking interface(1) 10/100 MbE RJ45 port
    • ConnectivityBLE 4.1
    • Power methodPoE
    • UL certificationsUL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
    • Supported voltage range48V DC
    • Max. power consumption5W
    • ESD/EMP protectionAir: ±15kV, contact: ±8kV
    • SensorsProximity sensor
    • Speaker(1) 8 ohm, 0.7W
    • LEDsSteady white: Pending adoption, Steady blue: Adopted, Alternating white/blue: Firmware updating, Strobing red: Emergency lockdown, Steady green: Emergency evacuation, (2) Rapid flashing blue: NFC credential authenticated, (2) Rapid flashing red: NFC credential authentication failed, Breathing blue: Ready to register NFC cards
    • Button(1) Factory-reset
    • NFC frequency13.56 MHz
    • NFC read range< 30 mm
    • NFC standardsISO 14443A, 14443B, 15693
    • NFC technologyNFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire
    • Operating environmentOutdoor use
    • Ambient operating temperature-30 to 45° C (-22 to 113° F)
    • Ambient operating humidity5 to 90% noncondensing
    • Software informationThe software version can be checked at https://unifi.ui.com
    • UL 294 levelDestructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
    • UL 294 statementCompliance with IEEE 802.3 specifications was not verified as part of UL 294
    • PoE cabling requirementsCat 5e minimum recommended, 26 AWG (patch cords), 24 AWG (horizontal/riser cable)
    • CAN/ULC-60839-11-1 GradeGrade I
