  •   Access point/Base station Ubiquiti UniFi LTU-Lite-EU

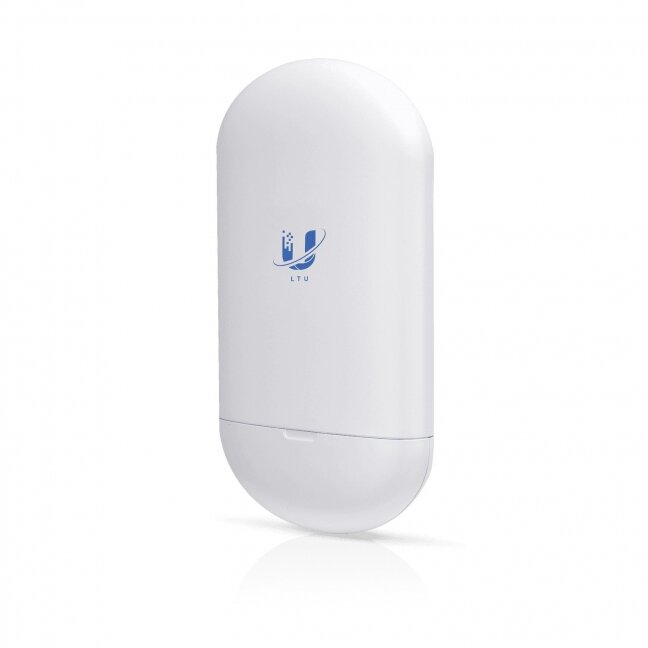

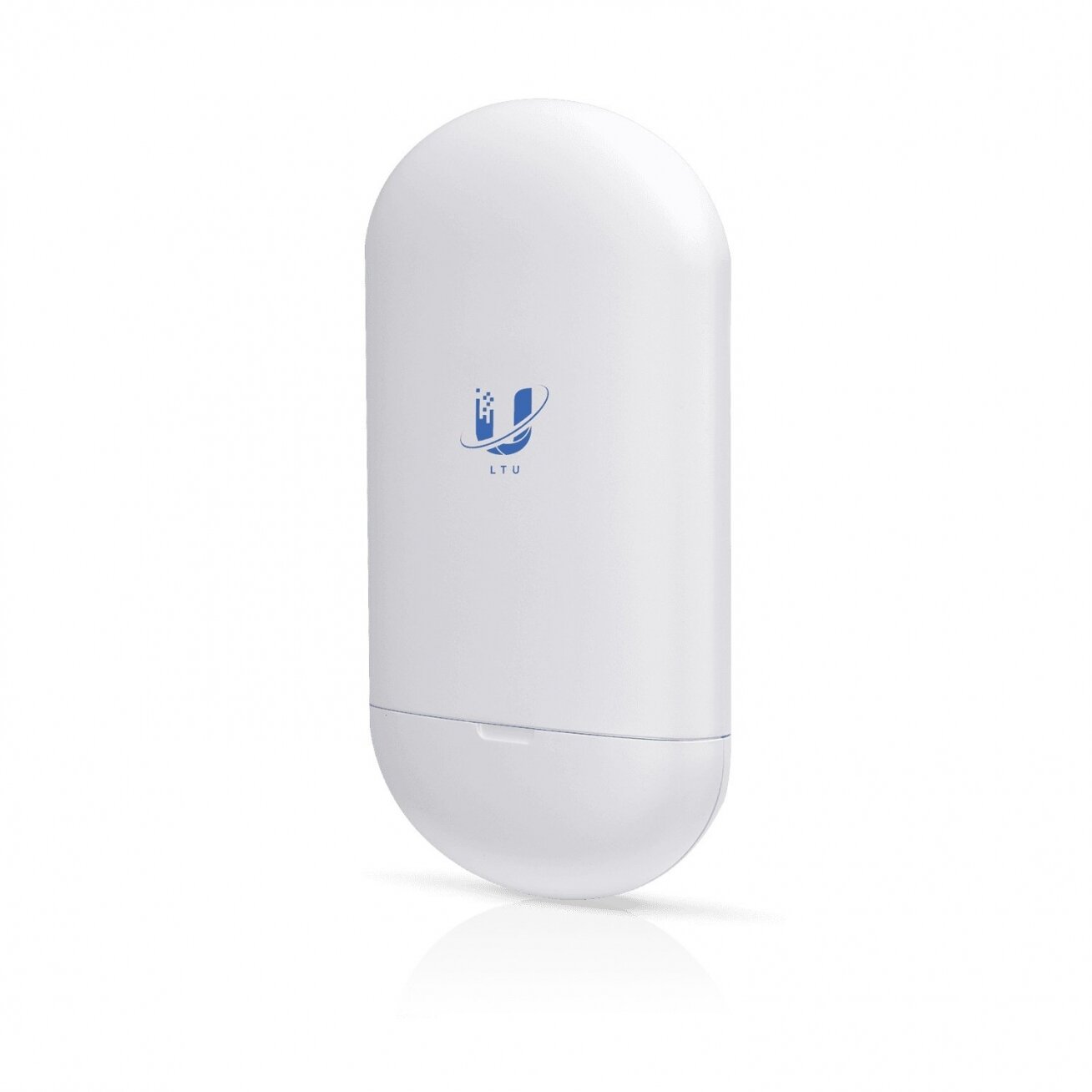

    Access point/Base station Ubiquiti UniFi LTU-Lite-EU

    Inquire about this item
    Price 133.06 €
    Want another price? Suggest yours!
    In stock: 0 pcs

    • General
    • Dimensions153 x 84 x 39.5 mm (6 x 3.3 x 1.6")
    • Weight250 g (8.8 oz)
    • Enclosure materialUV-stabilized polycarbonate
    • MountingPole mount, wall mount (Kit included)
    • Wind loading20 N at 200 km/h (4.5 lbf at 125 mph)
    • Wind survivability200 km/h (125 mph)
    • WeatherproofingIPX5
    • Networking interface(1) GbE RJ45 port
    • Power methodPassive PoE 2-pair (4, 5+; 7, 8-)
    • Power supply24V, 0.5A gigabit PoE adapter (Included)
    • Supported voltage range22—27V DC
    • Max. power consumption8.5W
    • ESD/EMP protectionAir/contact: ± 24kV
    • Ambient operating temperature-40 to 60° C (-40 to 140° F)
    • Ambient operating humidity5 to 95% noncondensing
    • CertificationsCE, FCC, IC
    • ModesPtMP CPE, PtP* (*1.5.1 and later 1.5.x series firmware.)
    • ServicesSNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
    • UtilitiesairView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
    • Auto distance adjustmentYes
    • Auto power adjustmentYes
    • NetworkBridge/Router* mode (*Router mode is available in PtMP CPE mode only.)
    • SecurityYes
    • Statical reportingYes
    • Management interfaceBluetooth management for easy setup over UISP App, WEB UI
    • Minimum software requirementsAny modern web browser, iOS™ or Android™ based smartphone
    • Maximum throughput900+ Mbps* (*FW version 2.3.0 and later.)
    • EncryptionWPA2-PSK (AES)
    • Uplink/downlink ratio25/75, 33/67, 50/50
    • Operating frequency*US/CA: U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz
    • Max. conducted TX power22 dBm (per chain)
    • Channel bandwidth10/20/30/40/50/60/80/100 MHz* (*FW version 2.3.0 and later.)
    • Antenna gain13 dBi
    • Cross-pol isolation20 dB
    • BeamwidthHPOL/VPOL/elevation: 45°
    • PolarizationDual linear
