  •   Access point Ubiquiti UniFi U7-Pro-XG-EU

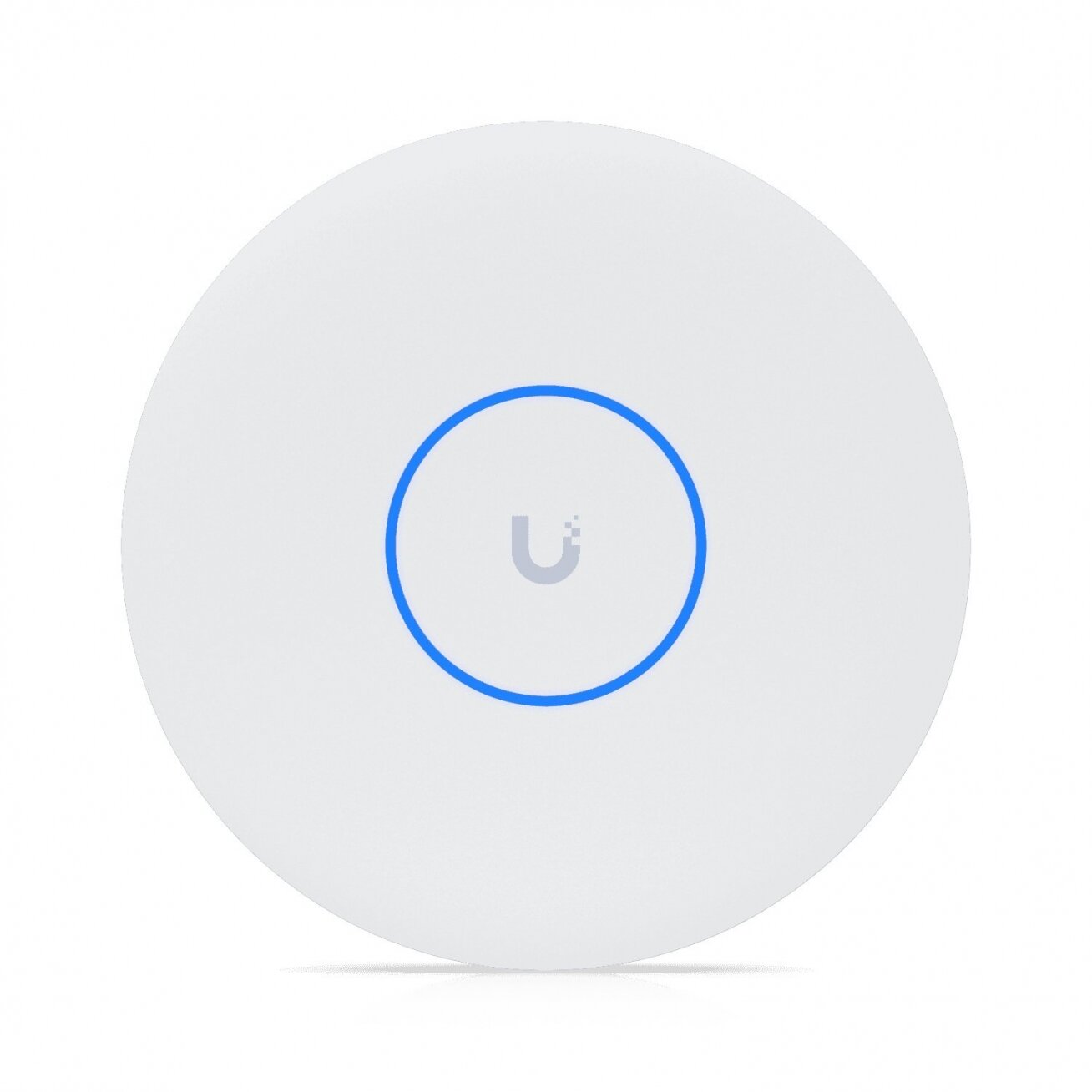

    Access point Ubiquiti UniFi U7-Pro-XG-EU

    Inquire about this item
    Price 249.72 €
    Want another price? Suggest yours!
    In stock: 0 pcs

    • General
    • DimensionsØ206 × 32.5 mm (Ø8.1 × 1.3")
    • WiFi StandardWiFi 7
    • Spatial Streams6
    • Coverage Area140 m² (1,500 ft²)
    • Max. Client Count300+
    • Uplink10 GbE
    • MountingCeiling, Wall (Lite Mount Included)
    • Power MethodPoE+
    • MIMO 6 GHz2 × 2 (DL/UL MU-MIMO)
    • MIMO 5 GHz2 × 2 (DL/UL MU-MIMO)
    • MIMO 2.4 GHz2 × 2 (DL/UL MU-MIMO)
    • Max. Data Rate 6 GHz5.8 Gbps (BW320)
    • Max. Data Rate 5 GHz4.3 Gbps (BW240)
    • Max. Data Rate 2.4 GHz688 Mbps (BW40)
    • Antenna Gain 6 GHz6 dBi
    • Antenna Gain 5 GHz5 dBi
    • Antenna Gain 2.4 GHz4 dBi
    • Max. TX Power 6 GHz24 dBm
    • Max. TX Power 5 GHz26 dBm
    • Max. TX Power 2.4 GHz23 dBm
    • Max. BSSIDs8 per Radio
    • Supported Data Rates 802.11be (WiFi 7)6 GHz: 7.3 Mbps–5.8 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/320)
    • Supported Data Rates 5 GHz WiFi 77.3 Mbps–4.3 Gbps (MCS0–MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
    • Supported Data Rates 802.11ax (WiFi 6)7.3 Mbps–2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
    • Supported Data Rates 802.11ac (WiFi 5)6.5 Mbps–1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
    • Supported Data Rates 802.11n6.5 Mbps–300 Mbps (MCS0–MCS15, HT 20/40)
    • Wireless MeshingYes
    • Band SteeringYes
    • 802.11v BSS Transition ManagementYes
    • 802.11r Fast RoamingYes
    • 802.11k Radio Resource Management (RRM)Yes
    • Advanced Radio ManagementYes
    • Passpoint (Hotspot 2.0)Yes
    • Captive Hotspot Portal Custom BrandingYes
    • Voucher AuthenticationYes
    • Payment-Based AuthenticationYes
    • External Portal Server SupportYes
    • Password AuthenticationYes
    • Guest Network IsolationYes
    • Private Pre-Shared Key (PPSK)Yes
    • WiFi Speed LimitingYes
    • Client Device IsolationYes
    • WiFi SchedulesYes
    • RADIUS over TLS (RadSec)Yes
    • Dynamic RADIUS-assigned VLANYes
    • Max. Power Consumption22W
    • Supported Voltage Range42.5–57V DC
    • Networking Interface(1) 10 GbE RJ45 port
    • Weight750 g (1.7 lb)
    • ManagementEthernet
    • Enclosure MaterialUV-stabilized polycarbonate, aluminum alloy
    • Mount MaterialStainless steel (SUS304), galvanized steel (SGCC)
    • LEDsSystem (White/Blue)
    • Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz
    • CertificationsCE, FCC, IC
    • NDAA CompliantYes
    • Ambient Operating Temperature-30 to 40° C (-22 to 104° F)
    • Ambient Operating Humidity5 to 95% noncondensing
