  •   Access point Ubiquiti UniFi U7-Pro-Outdoor

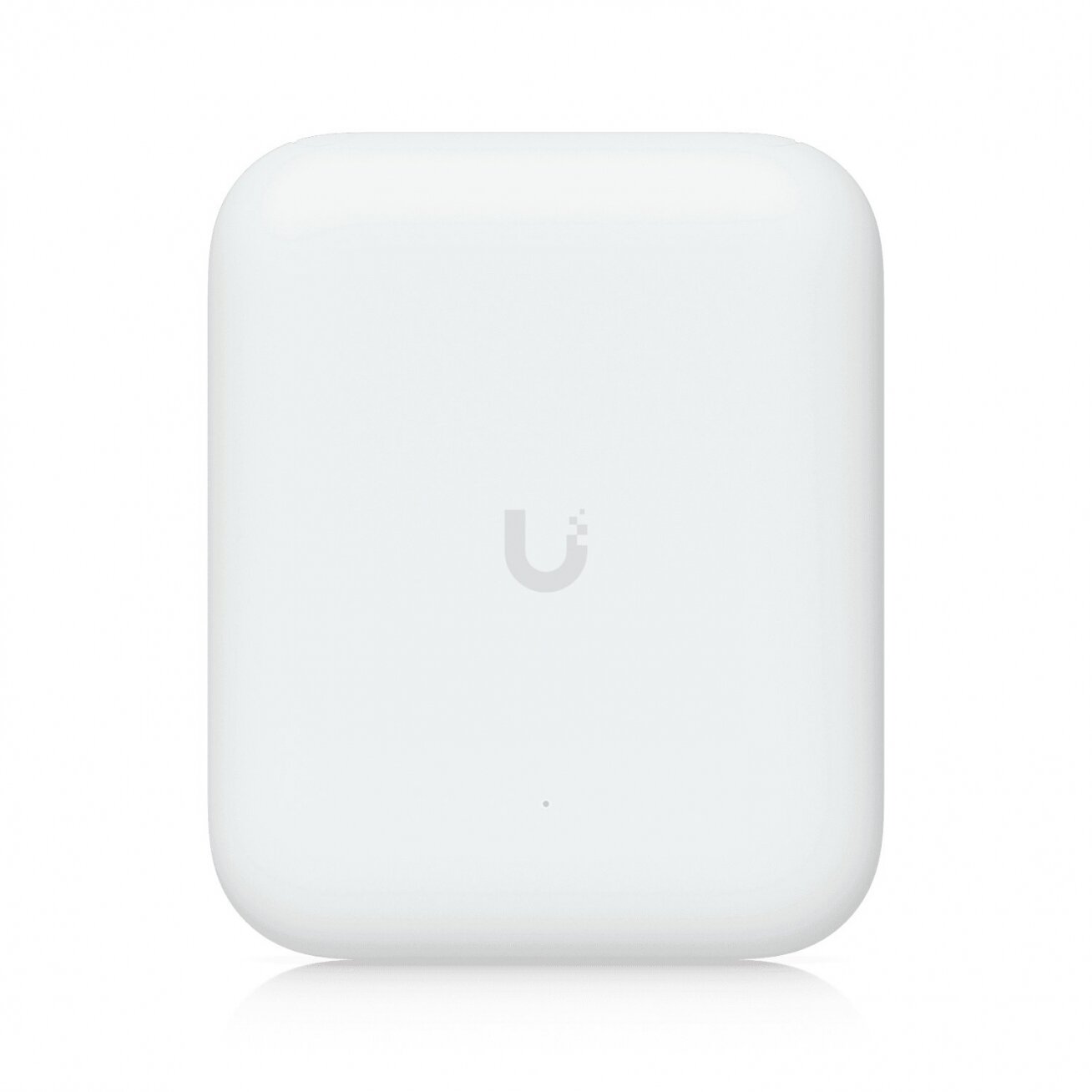

    Access point Ubiquiti UniFi U7-Pro-Outdoor

    Inquire about this item
    Price 353.33 €
    Want another price? Suggest yours!
    In stock: 0 pcs

    • General
    • Dimensions Without mount170 × 208 × 66.5 mm (6.7 × 8.2 × 2.6")
    • Dimensions With mount170 × 208 × 121.8 mm (6.7 × 8.2 × 4.8")
    • WiFi StandardWiFi 7
    • Spatial Streams6
    • Coverage Area465 m² (5,000 ft²)
    • Max. Client Count300+
    • Uplink2.5 GbE
    • MountingWall, Pole (Mounts Included)
    • WeatherproofingIPX6; IP67 (With cable-gland door kit)
    • Power MethodPoE+
    • MIMO 5 GHz4 × 4 (DL/UL MU-MIMO)
    • MIMO 2.4 GHz2 × 2 (DL/UL MU-MIMO)
    • Max. Data Rate 5 GHz8.6 Gbps (BW240)
    • Max. Data Rate 2.4 GHz688 Mbps (BW40)
    • Antenna Gain 5 GHzDirectional internal: 11 dBi; External omni: 8 dBi
    • Antenna Gain 2.4 GHzDirectional internal: 8 dBi; External omni: 6 dBi
    • Max. TX Power 5 GHz29 dBm
    • Max. TX Power 2.4 GHz23 dBm
    • Max. BSSIDs8 per Radio
    • Supported Data Rates 802.11be (WiFi 7)7.3 Mbps–8.6 Gbps (MCS0–MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
    • Supported Data Rates 802.11ax (WiFi 6)7.3 Mbps–4.8 Gbps (MCS0–MCS11 NSS1/2/3/4, HE 20/40/80/160)
    • Supported Data Rates 802.11ac (WiFi 5)6.5 Mbps–3.4 Gbps (MCS0–MCS9 NSS1/2/3/4, VHT 20/40/80/160)
    • Supported Data Rates 802.11n6.5 Mbps–300 Mbps (MCS0–MCS15, HT 20/40)
    • Wireless MeshingYes
    • Band SteeringYes
    • 802.11v BSS Transition ManagementYes
    • 802.11r Fast RoamingYes
    • 802.11k Radio Resource Management (RRM)Yes
    • Advanced Radio ManagementYes
    • Passpoint (Hotspot 2.0)Yes
    • Captive Hotspot Portal Custom BrandingYes
    • Voucher AuthenticationYes
    • Payment-Based AuthenticationYes
    • External Portal Server SupportYes
    • Password AuthenticationYes
    • Guest Network IsolationYes
    • Private Pre-Shared Key (PPSK)Yes
    • WiFi Speed LimitingYes
    • Client Device IsolationYes
    • WiFi SchedulesYes
    • RADIUS over TLS (RadSec)Yes
    • Dynamic RADIUS-assigned VLANYes
    • Max. Power Consumption21W
    • Supported Voltage Range42.5–57V DC
    • Networking Interface(1) 1/2.5 GbE RJ45 port
    • Weight Device1.2 kg (2.6 lb)
    • Weight With mount1.33 kg (2.9 lb)
    • Wind Loading74.6 N at 200 km/h (16.8 lbf at 125 mph)
    • Pole Mount Diameter1–2.5" (25–63.5 mm)
    • ManagementEthernet
    • Enclosure MaterialUV-stabilized polycarbonate, aluminum alloy
    • Mount MaterialUV-stabilized polycarbonate
    • LEDs System(1) Power: White/Blue; (4) Mesh signal: Blue
    • CertificationsCE
    • NDAA CompliantYes
    • Ambient Operating Temperature-30 to 60° C (-22 to 140° F)
    • Ambient Operating Humidity5 to 95% noncondensing
