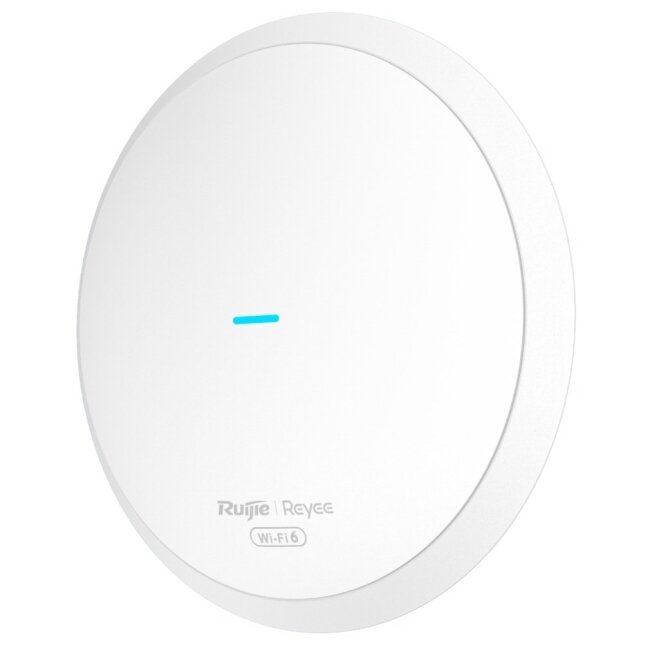

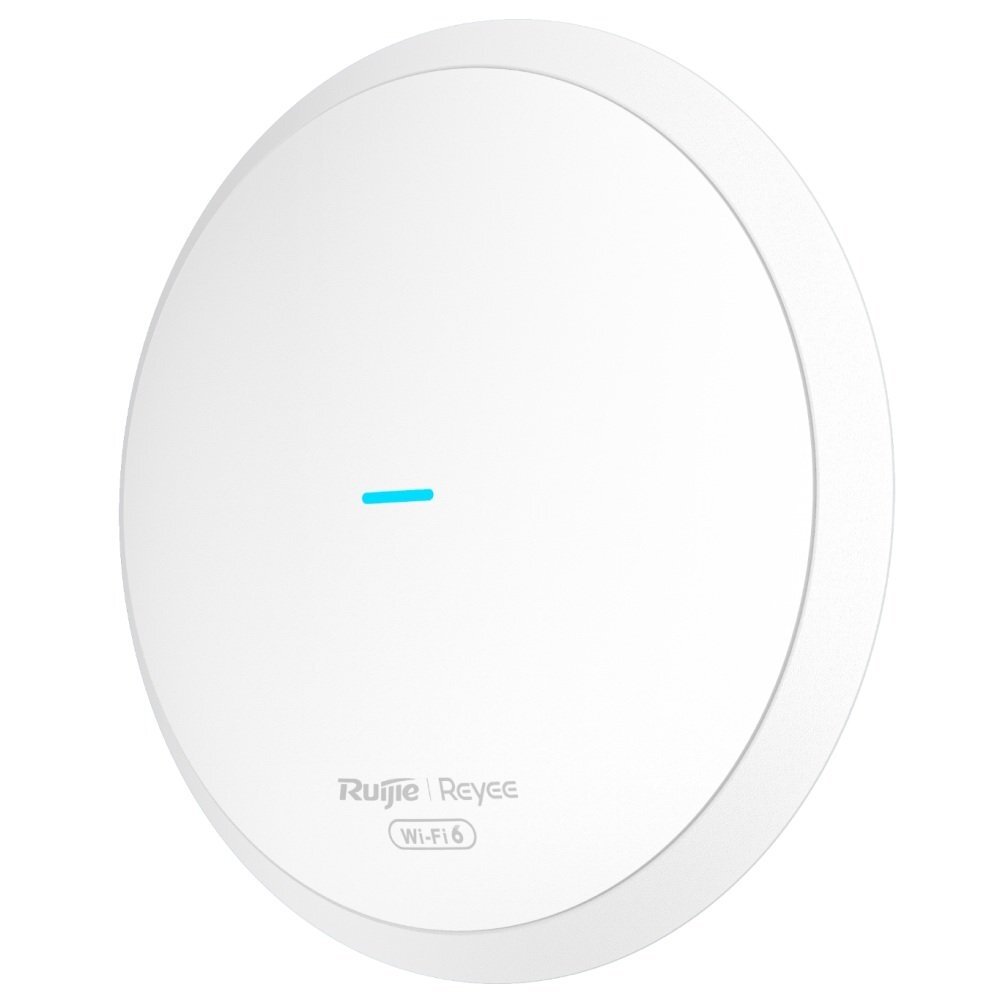

Access point Ruijie Reyee RG-RAP62 (Wi-Fi 6, 1774 Mbps)
ManufacturerRuijie-
- General
- ModelRG-RAP62
- Product typeWi-Fi 6 AX1800 Ceiling Access Point
- Wi-Fi protocols2.4 GHz: IEEE 802.11b/g/n/ax, 5 GHz: IEEE 802.11a/n/ac Wave2/ax
- Wi-Fi frequency bands2.4 GHz: 2.400–2.4835 GHz, 5 GHz: 5.150–5.850 GHz (depending on country)
- Spatial streams2x2 MIMO (both 2.4 GHz and 5 GHz)
- Antenna typeOmnidirectional (internal)
- Antenna gain2.4 GHz: 3.13 dBi, 5 GHz: 4.58 dBi
- Max data rate1774 Mbps (5 GHz: 1201 Mbps, 2.4 GHz: 573 Mbps)
- Channel width5 GHz: 20/40/80 MHz, 2.4 GHz: 20/40 MHz
- ModulationOFDM, DSSS, MIMO-OFDM (up to 1024-QAM)
- Optimal coverage125 m²
- Transmit powerUp to 24 dBm (country-specific limits apply)
- Receiver sensitivityUp to –91 dBm (varies by protocol and bandwidth)
- Ethernet ports1 x 10/100/1000BASE-T (supports 802.3af/at PoE)
- DC power inputYes (12 V / 1.5 A, connector Ø5.5mm/2.1mm)
- PoE support802.3af / 802.3at
- Max power consumption≤ 12.95 W
- Buttons1 x Reset
- LED indicators1 x system status LED (blue)
- Operating temperature0°C to 40°C
- Storage temperature-40°C to +70°C
- Operating humidity5% to 95% RH, non-condensing
- Mounting optionsCeiling-mount, Wall-mount
- IP ratingIP41
- Lightning protection±2 kV
- Weight≤ 0.4 kg (excluding mounting kit)
- DimensionsØ175 x 39 mm
- Flash memory128 MB
- RAM256 MB
- Enclosure colorRuijie White W-2
- Operating modesAP Mode, Router Mode
- Max clients recommended100 (BW80 11ax: 16 @ 2.4 GHz + 84 @ 5 GHz)
- Max SSIDs8
- Security featuresPSK, WPA/WPA2/WPA3-SAE, OWE, 802.1X, Static blocklist/allowlist
- VLANs802.1Q, Same SSID for different VLANs
- Roaming support802.11k/v/r, Layer 2 and 3 roaming, AI Roaming
- Routing featuresNAT, Static IP, DHCP server, PPPoE
- Mesh supportReyee Mesh
- Standalone portalCaptive portal, Bandwidth limiting
- ManagementRuijie Cloud, Ruijie App, Web UI, SNMP
- Cloud featuresUnified configuration, monitoring, and optimization
- Max APs in mesh network300
