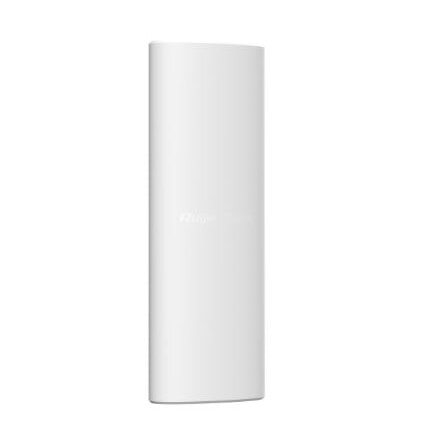

Access point Ruijie Reyee RG-RAP62-OD
ManufacturerRuijie-
- General
- Wi-Fi Protocols5 GHz: IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz: IEEE 802.11b/g/n/ax
- Operating Frequency Bands5 GHz: 5.150-5.850 GHz, 2.4 GHz: 2.400-2.4835 GHz
- Spatial Streams5 GHz: 2x2 MIMO, 2.4 GHz: 2x2 MIMO
- AntennaOmni-directional
- 5 GHz Antenna Gain6.5dBi
- 2.4 GHz Antenna Gain4.0dBi
- Channel Width5 GHz: Auto/20/40/80/160 MHz, 2.4 GHz: Auto/20/40 MHz
- Max Throughput2974 Mbps (5 GHz: 2401 Mbps, 2.4 GHz: 573 Mbps)
- Max Transmit Power5 GHz: ≤200mW (23dBm), 2.4 GHz: ≤200mW (23dBm)
- Optimal Coverage150 devices
- Max Wi-Fi Coverage Range5 GHz: 300m, 2.4 GHz: 100m
- Dimensions200 mm x 70 mm x 35 mm (7.87 in. x 2.76 in. x 1.38 in.)
- Weight≤ 0.4 kg (0.88 lbs.)
- Number of 10/100/1000BASE-T Ports1 (supports 802.3at PoE)
- Power Supply802.3af, 802.3at, 48V passive PoE
- Max Power Consumption< 16 W
- Buttons1 × Factory Reset
- LEDs1 × System LED Indicator
- Operating Temperature–30°C to +65°C (–22°F to +149°F)
- Storage Temperature–40°C to +75°C (–40°F to +167°F)
- Operating Humidity5% to 95% (non-condensing)
- MountingWall-mount, Pole-mount
- IP RatingIP65
- Lightning Protection/Surge±4 kV
- Recommended ClientsBW160 11AX: 16 (2.4G) + 94 (5G) = 110, BW80 11AX: 16 (2.4G) + 64 (5G) = 80
- Max SSIDs8
- Layer 2 Client IsolationYes
- Wi-Fi Multimedia (WMM)Yes
- 802.1Q VLANYes
- Roaming802.11k/v/r, Layer 2 & 3 Roaming, AI Roaming
- SecurityPSK Authentication, WPA/WPA2/WPA3, Static Blocklist & Allowlist
- Mesh ManagementReyee Mesh
- Captive PortalYes
- Bandwidth LimitYes
- ManagementUnified Configuration & Monitoring via Ruijie Cloud, Local/Remote Management via Ruijie Reyee App
- Memory512MB
- Flash Storage128MB
- ColorWarm White
