  •   9 port 8 PoE port Switch Hikvision DS-3E1309P-EI(B)

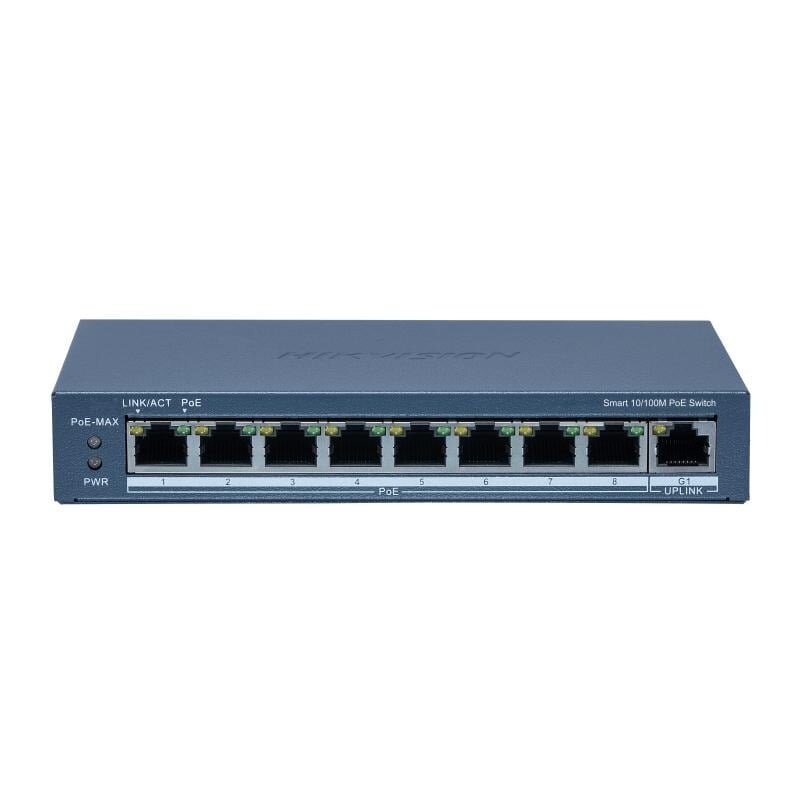

    9 port 8 PoE port Switch Hikvision DS-3E1309P-EI(B)

    Inquire about this item
    Price 78.03 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Hikvision
    • Approval
    • ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
    • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
    • SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
    • General
    • Dimensions (W × H × D)170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')
    • Gross Weight1.114 kg (2.45 lb)
    • Installation ModeDesk-Mounted,Wall-Mounted
    • Max. Power Consumption120 W
    • Net Weight0.35 kg (0.77 lb)
    • Operating Humidity5% to 95% (no condensation)
    • Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
    • Power Consumption in Idle10 W
    • Power Supply54VDC，2.22A
    • Relative Humidity5% to 95% (no condensation)
    • ShellMetal material, fan-free design
    • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
    • Surge Protection6 kV
    • Network Parameters
    • Internal Cache4 Mbits
    • MAC Address Table8 K
    • Packet Forwarding RateWhole-Device Performance: 4.17 Mpps Port Performance: 2.68 Mpps
    • Ports8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port
    • Switching CapacityWhole-Device Performance: 5.6 Gbps Port Performance: 3.6 Gbps
    • PoE Power Supply
    • Max. Port Power30 W
    • PoE PortPoE: Ports 1 to 8
    • PoE Power Budget110 W
    • PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
    • PoE StandardIEEE 802.3af,IEEE 802.3at
    • Software Function
    • ACL\
    • HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
    • IPSG\
    • Long RangePorts 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition.
    • Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP.
    • PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
    • Port IsolationPorts 1 to 8: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
    • Port Rate-Limiting\
    • QoS\
    • System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
    • VIP Port\
    • VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
