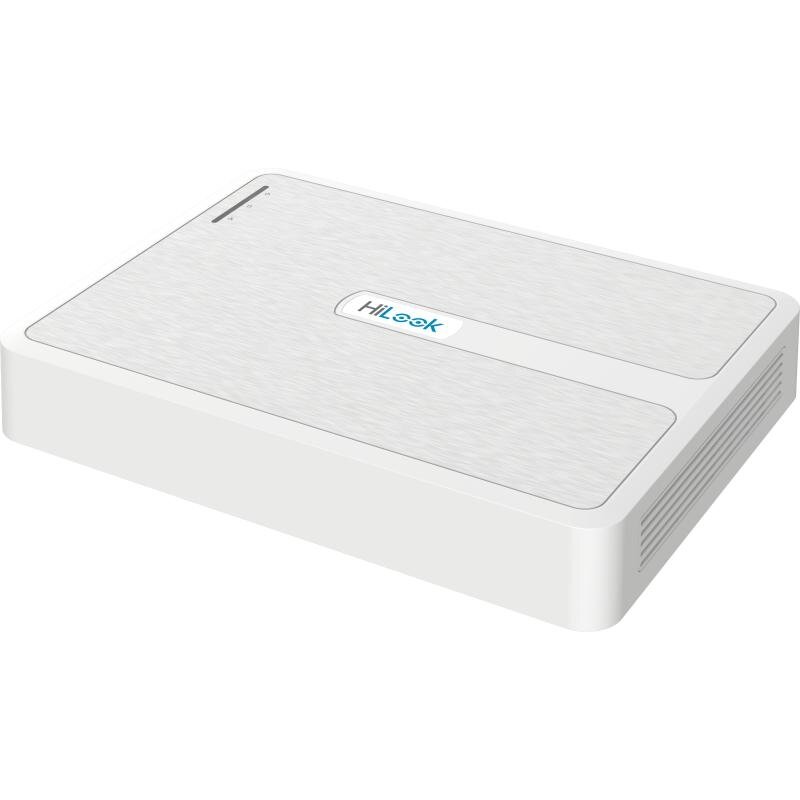

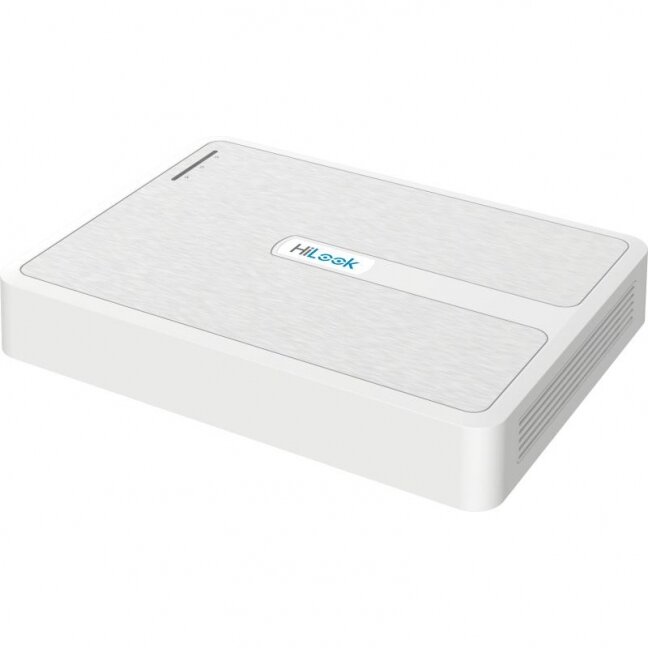

8ch NVR HiLook NVR-108H-D/8P(STD)(D
8ch NVR HiLook NVR-108H-D/8P(STD)(D
ManufacturerHilook-
- Video and Audio
- IP Video Input
8-ch
Up to 6 MP resolution
- Incoming Bandwidth60 Mbps
- Outgoing Bandwidth60 Mbps
- HDMI Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Decoding
- Decoding FormatH.265+/H.265/ H.264+/H.264
- Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous playback4-ch
- Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
- Stream TypeVideo, Video & Audio
- Network
- Remote Connection16
- Network ProtocolTCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
- Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
- PoE
- Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 75 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 6 TB capacity for each disk
- Alarm In/OutN/A
- USB InterfaceRear panel: 2 × USB 2.0
- General
- Power Supply48 VDC, 1.8 A
- Consumption≤ 10 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)
285 × 210 × 48 mm(11.2" × 8.3\" × 1.9\")
- Weight≤ 1 kg (without HDD, 2.2 lb.)
- Certification
- CEEN50130-4, EN 61000-3-2,EN 61000-3-3
