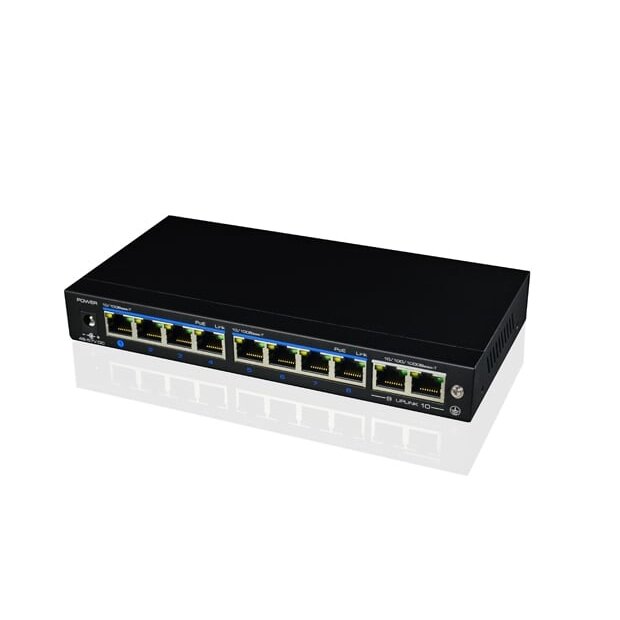

8 ports, 8 PoE switch UTEPO UTP3-SW08-TP120-A1

Power Supply

Power Adaptor

Voltage Range

DC 48V～57V

Power Consumption

<5W

Rate

1~8 Downlink Ethernet Ports:10/100Mbps; 9~10 Uplink Ethernet Ports:10/100/1000Mbps

Transmission Distance

1~8 Ports:0～100m (Default),CCTV:250m,Uplink:0～100m

PoE Ports

RJ45 Ports with 30u Gold-plated Flattened Pin

Ethernet Standard

IEEE 802.3/802.3u/IEEE802.3 af/IEEE802.3at

Backplane

7G

Packet Forwarding Rate

4.166Mbps

Data Package Cache

1.5Mb

MAC

4K

Power Light

1pcs (Red)

Ethernet Port Light

2pcs (Yellow& Green) on RJ45, Yellow Indicates PoE, Green Indicates Link/Act

Surveillance Mode light

1pcs(Green), Green Indicates CCTV Mode is initiated

EFT

Level 2   Per: IEC6 1 000-4-4

ESD

Level 3   Per: IEC6 1 000-4-2

Lightning Protection

6KV     Per: IEC6 1 000-4-5

Operation Temperature

-10℃～55℃

Storage Temperature

-40℃～85℃

Humidity(non-condensing)

0～95%

Dimensions(LxWxH)

200mm×101.8mm×27mm

Material

Metal

Color

Black

Weight

500g
