  •   8 ports, 8 POE ports Teltonika TSW200 Industrial Unmanaged Switch

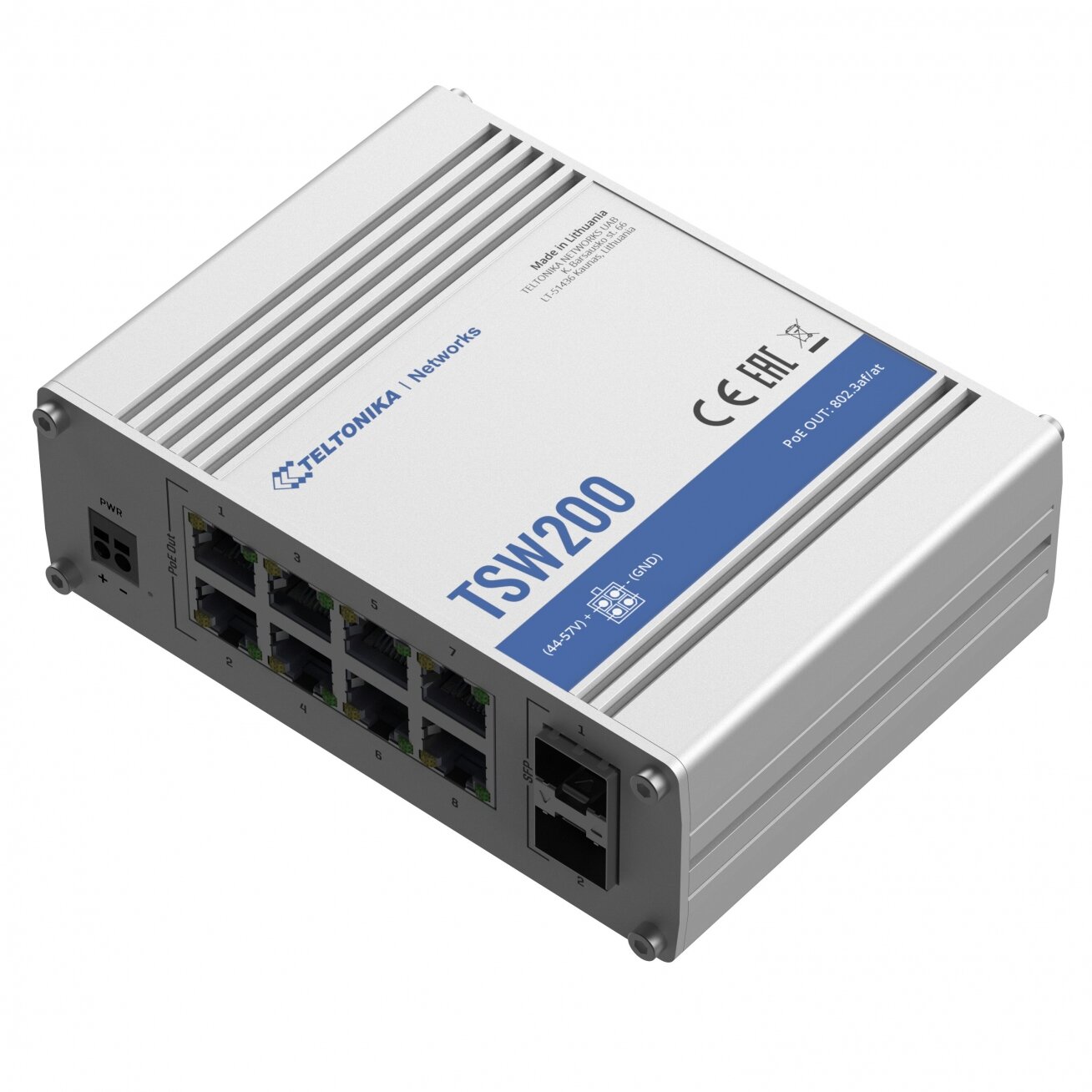

    8 ports, 8 POE ports Teltonika TSW200 Industrial Unmanaged Switch

    Inquire about this item
    Price 112.95 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Teltonika

    • Ethernet
    • LAN8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
    • Fiber2 x SFP ports
    • POE
    • PoE portsPort 1 - 8
    • PoE standards802.3af and 802.3at
    • PoE Max Power per Port (at PSE)30 W
    • Total PoE Power Budget (at PSE)240 W
    • Performace Specifications
    • Bandwidth (Non-blocking)20 Gbps
    • Packet buffer128 KB
    • MAC address table size2K entries
    • Jumbo frame support9216 bytes
    • Power
    • Connector2 pin industrial DC power socket
    • Input voltage range7-57 VDC
    • Input voltage range for PoE44-57 VDC
    • Power consumption (idle/max no PoE/max)1,81 W/5.5 W/245.5 W
    • Interfaces (PORTS, LEDS)
    • Ethernet8 x RJ45 ports, 10/100/1000 Mbps
    • Fiber2 x SFP ports
    • Status LED’s1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
    • Power1 x 2 pin industrial DC power socket
    • Ground1 x Grounding screw
    • Physical Specification
    • Casing materialFull aluminum housing
    • Dimensions (W x H x D)132 x 44.2 x 95.1 mm
    • Weight456 g
    • MountingDIN rail or wall mounting (additional kit needed), flat surface placement
    • Operating Environment
    • Operating temperature-40 °C to +75 °C
    • Operating humidity10 % to 90 % non condensing
    • Ingress Protection RatingIP30
