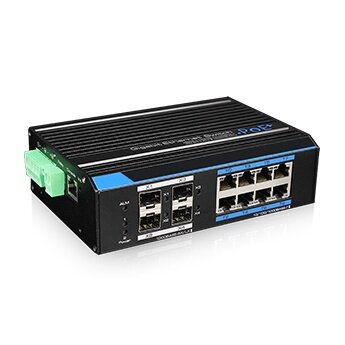

8 ports, 4 PoE ports switch UTEPO UTP7308GE-POE

Downstream Ports

8* 10/100/1000Base-T PoE RJ45 ports

Uplink Ports

4*1000Base-X SFP ports

Network Standard

IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3Z、IEEE802.3X、 IEEE 802.1Q    IEEE 802.1p   IEEE 802.3ad 、IEEE 802.1D、IEEE 802.1X

Bandwidth

24Gbps

Packet Transfer Rate

18Mpps

Exchange Way

Storage& Transfer

Memory Buffer

4M

MAC Table

8K

PoE Standard

802.3af/at

PoE Power Supply

End-span

PoE Line Pair

1/2(+)，3/6(-)

PoE Output

Sigle Port ≤ 30W PoE

PoE Budge

120 watts max

Alarm signal output by relay

Support relay alarm for power off, ports network link-off , ports PoE off （Set by Web Software）

Lightning protection

6KV    Execute：IEC61000-4-5

ESD Protection

ESD Level 4  Per:  IEC61000-4-2

RS Level 4  Per:  IEC61000-4-3

EFT Level 4  Per:  IEC61000-4-4

CS Level 4   Per:  IEC61000-4-6

Input Voltage

48~57V DC

Power Consumption

Self consumption＜15W

Work Temperature

-40℃~75℃

Storage Temperature

-40℃~85℃

Humidity(Non-condensin)

5%-95%

Dimension（L×W×H）

159mm×110mm×46.5mm

Weight

1kg

Regulator

CE、FCC、ROHS
