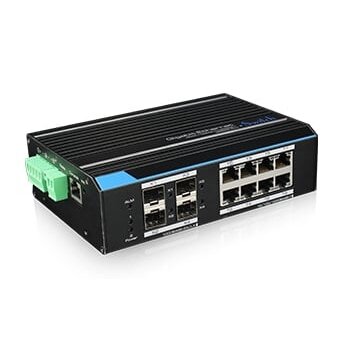

8 port switch UTEPO UTP7308GE

Model

UTP7308GE

Downlink Ports

8 * 10/100/1000Base-T RJ45 ports

Uplink Ports

4 * 1000Base-X SFP ports

Network Standard

IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3Z、IEEE802.3X、 IEEE 802.1Q IEEE 802.1p IEEE 802.3ad 、 IEEE 802.1D、IEEE 802.1X

Switching Capacity

24Gbps

Packet Transfer Rate

17.9Mpps

Exchange Way

Storage& Transfer

Buffer

4Mbit

MAC Address

8K

Alarm signal Output by Relay

Support relay alarm for power off, network broken（Set by Web Software）

Surge Immunity

6KV Per: IEC61000-4-5

ESD Protection

ESD Level 4 Per: IEC61000-4-2

RS Level 4 Per: IEC61000-4-3

EFT Level 4 Per: IEC61000-4-4

CS Level 4 Per: IEC61000-4-6

Input Voltage

12~57V DC

Power Consumption

Self consumption＜30W

Operation Temperature

-40℃~75℃

Storage Temperature

-40℃~85℃

Operation Humidity

5%-95%（no condensation）

Dimension(LxWxH)

159mm×110mm×46.5mm

Weight

1kg

MTBF

330000 Hour

Authentication

CE、FCC、ROHS

Software Parameter

Port Management

Support Port Enable/Disable;

Support Port Rate Settings;

Support Port Full-duplex Mode;

Support IEEE802.3x Flow Control;

Support Port Name Change;

VLAN

Support 4K VLAN

Support 802.1Q Protocol-Based VLAN;

Support Port-Based VLAN;

QoS

Support QoS;

Support 8-Level Priority management for switching;

Support WRR;

Support 820.1P and DSCP Priority;

Multicast Management

Support SNMP V1/V2/V3 Protocol;

Support IGMP Snooping;

Alarm Signal Output by Relay

Support relay alarm for power off, ports network link-off

Safety Character

Support IP、MAC、Port、VLAN Combination and Binding;

Support MAC address auto-learning, aging& filter;

Support Port Isolation, Port Speed-Limited;

Support RSTP;

Support Fast-Ring;

Support 5 groups of 8-Port trunk;

Support RADIUS Authentication& 802.1X Authentication;

System Management& Maintenance

Support WEB Management, CLR Settings and telnet Settings;

Support CLR Settings;

Support FTP/TFTP/HTTP Web Upgrading;

Support Flow Calculate;

Support MAC address Form Search;

Support IP Address, DNS Server Change

Support Username& Password Change;

Support History Record, Journal management;

Support System settings Backup;
