  •   8-port switch Ubiquiti UniFi USW-Flex-2.5G-8-PoE

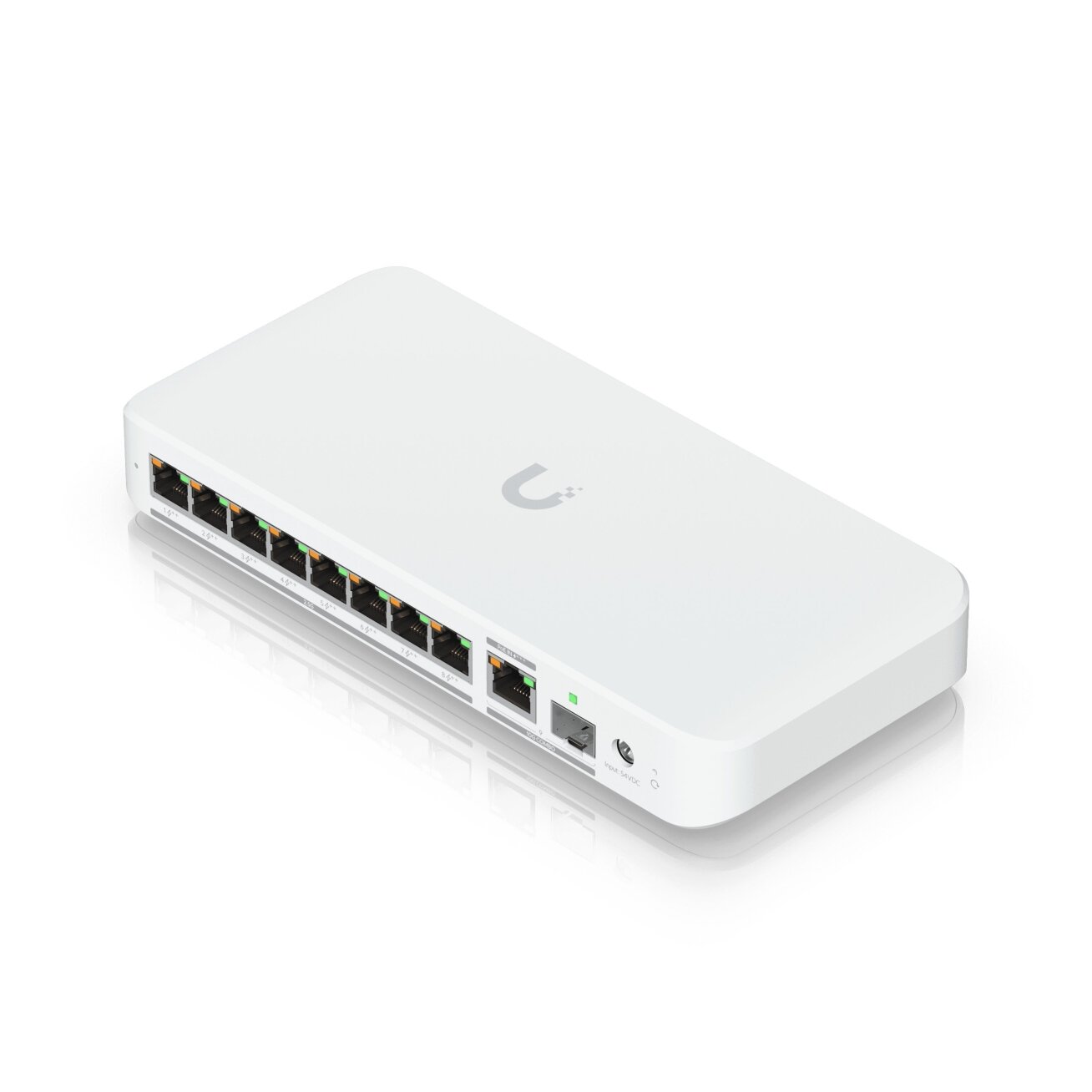

    8-port switch Ubiquiti UniFi USW-Flex-2.5G-8-PoE

    Inquire about this item
    Price 261.86 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • General
    • Dimensions212.9 × 99.4 × 33.5 mm (8.4 × 3.9 × 1.3")
    • Port Layout(8) 2.5 GbE RJ45 (PoE++: 2.5G/1G/100M/10M), (1) 10 GbE RJ45 (PoE+++: 10G/5G/2.5G/1G/100M), (1) 10G SFP+ (10G/1G)
    • Max. PoE OutputUp to PoE++
    • Total PoE AvailabilityPoE+++ input: 76W, PoE++ input: 46W, PoE+ input: 16W, 210W AC adapter input: 196W
    • Form FactorCompact desktop, wall, DIN, magnetic mount
    • Switching Capacity60 Gbps
    • Total Non-Blocking Throughput30 Gbps
    • Forwarding Rate45 Mpps
    • Supported VLANs256
    • MAC Address Table Size4,000
    • Layer 2 FeaturesSTP & RSTP, Egress rate limit, Flow control, Storm control, Multicast & broadcast rate limiting, Port isolation, Port mirroring, Jumbo frames, Loop protection
    • PoE Ports8 × PoE++
    • Max PoE Wattage per PortPoE: 15.4 W, PoE+: 32 W, PoE++: 64 W
    • Max Power Consumption14 W (excluding PoE output, with PoE input), 17 W (excluding PoE output, with AC adapter input), 210 W (including PoE output)
    • Power Method(1) AC/DC adapter (excluded), (1) PoE+++
    • Power Input MethodDC input, PoE
    • Supported Voltage Range50–57 V DC/PoE
    • ManagementEthernet
    • Weight567 g (20 oz)
    • Enclosure MaterialPolycarbonate
    • Mount MaterialPolycarbonate
    • Ambient Operating Temperature–20 to +45 °C (–4 to 113 °F)
    • Ambient Operating Humidity10 to 90% non-condensing
    • NDAA CompliantYes
    • CertificationsCE, FCC, IC
    • Software/Application RequirementsUniFi Network version 9.0.114 and later
