  •   8-port switch Dahua DH-LR2110-8ET-120

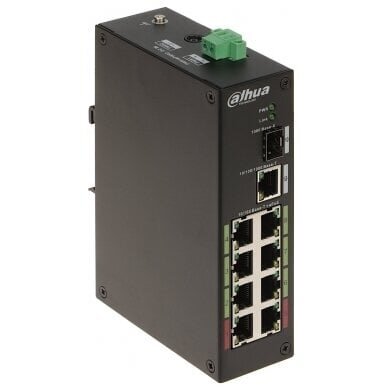

    8-port switch Dahua DH-LR2110-8ET-120

    Inquire about this item
    Price 357.42 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Dahua

    • General
    • Model VersionDH-LR2110-8ET-120
    • Ethernet Ports1× 1000 Base-X, 1× 10/100/1000 Base-T, 8× 10/100 Base-T (PoE power supply)
    • PoE Power ConsumptionPort 1, 5 ≤ 60W; Port 2, 3, 4, 6, 7, 8 ≤ 30W; Total ≤ 120W
    • PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE
    • Switching Capacity8.8 Gbps
    • Packet Forwarding Rate4.17 Mpps
    • Packet Buffer Memory2.75 Mb
    • MAC Table Size8K
    • Flow ControlEnabled by default
    • Application Humidity10% ~ 90%
    • Power InputDC 48~57V power adapter
    • Lightning ProtectionCommon Mode: 4KV, Differential Mode: 2KV
    • Working Temperature-30°C ~ 65°C
    • Dimensions150 × 100 × 42 mm
    • Weight0.59 kg
    • Special FeaturesSupports long-distance PoE transmission up to 800m, Layer 2 ePoE switch, ePoE/PoC transmission over Ethernet cable
    • Transmission PerformanceUp to 800m @ 10 Mbps, 300m @ 100 Mbps (varies by voltage and cable)
    • Compatible AccessoriesPFT3950 (MM 500m), PFT3960 / PFT3970 (SM 20km), LR1002 (EoC over coax)
    • LED IndicatorsIEEE Mode (on), E100 (3s on / 1s off), E10 (1s on / 1s off)
