  •   8-port switch CUDY FS1010P

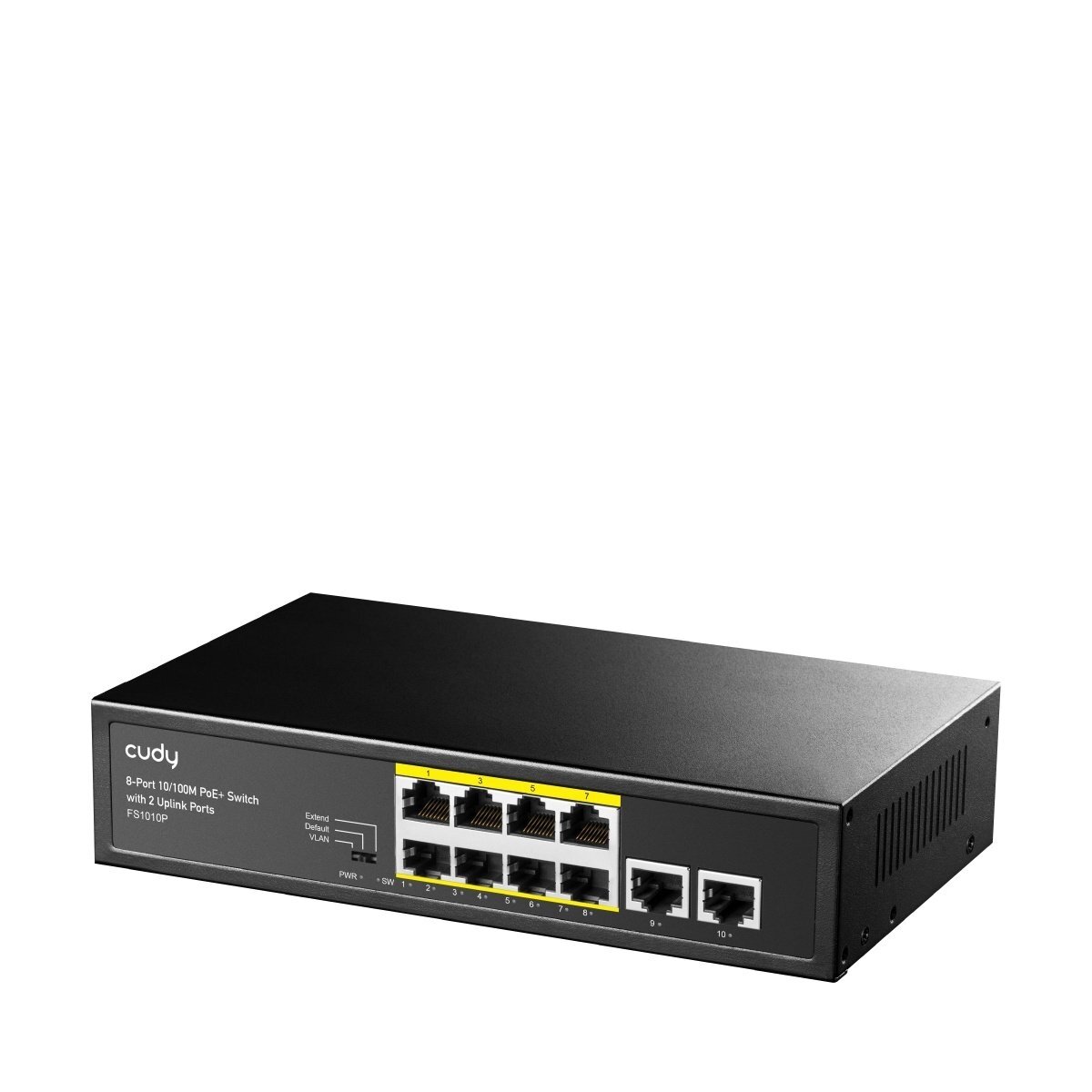

    8-port switch CUDY FS1010P

    Inquire about this item
    Price 48.40 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cudy

    • General
    • Model VersionFS1010P 2.0
    • 10/100 Mbps RJ45 Ports10
    • 10/100 Mbps RJ45 PoE Ports#1~#8
    • Max Power on a Single PoE Port30W
    • PoE Port NotesComplies with IEEE 802.3at/af standards
    • Extend Mode Ports#1~#8
    • VLAN Mode Ports#1~#8
    • LED IndicatorsPower, Link/ACT of Each Ethernet Port, DIP Mode (SW)
    • Power InputAC Inlet
    • Physical ButtonsVLAN/Default/Extend DIP Switch
    • Copper Speed and DistanceCat. 3+: 100m @ 10 Mbps, Cat. 5+: 100m @ 100 Mbps, Cat. 5e+: 250m @ 10 Mbps (Extend Mode only)
    • Copper Speed Note250-meter transmission only available in Extend Mode
    • MAC Address Table2048
    • Max Switching Capacity2 Gbps
    • Max Forwarding Rate1.488 Mpps
    • Packet Buffer2 Mbit
    • Power MethodsAC
    • AC Input Range100–240V~, 50/60Hz
    • Power Supply120W
    • Max Power Excluding PoE1W
    • 802.3 Protocols802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3x Flow Control, 802.3af PoE, 802.3at PoE
    • Grounding MethodsThree-Prong Plug
    • EMS ProtectionIEC/EN 61000-4-2 Level 2 ESD: Contact: 4kV; Air: 6kV, IEC/EN 61000-4-5 Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
    • Operating Temperature0~40 ℃ (32~104 ℉)
    • Storage Temperature-40~70℃ (-40~158 ℉)
    • Operating Humidity10~90% non-condensing
    • Storage Humidity10~95% non-condensing
    • Dimensions200×120×45 mm (7.87×4.72×1.77 inches)
    • Product Weight610 g (21.52 oz.)
    • Casing MaterialMetal
    • Installation OptionsDesktop, Wall-mount
    • Package ContentFS1010P, Power Cord, Installation Guide
