  •   8-port managed switch CUDY GS2008S2

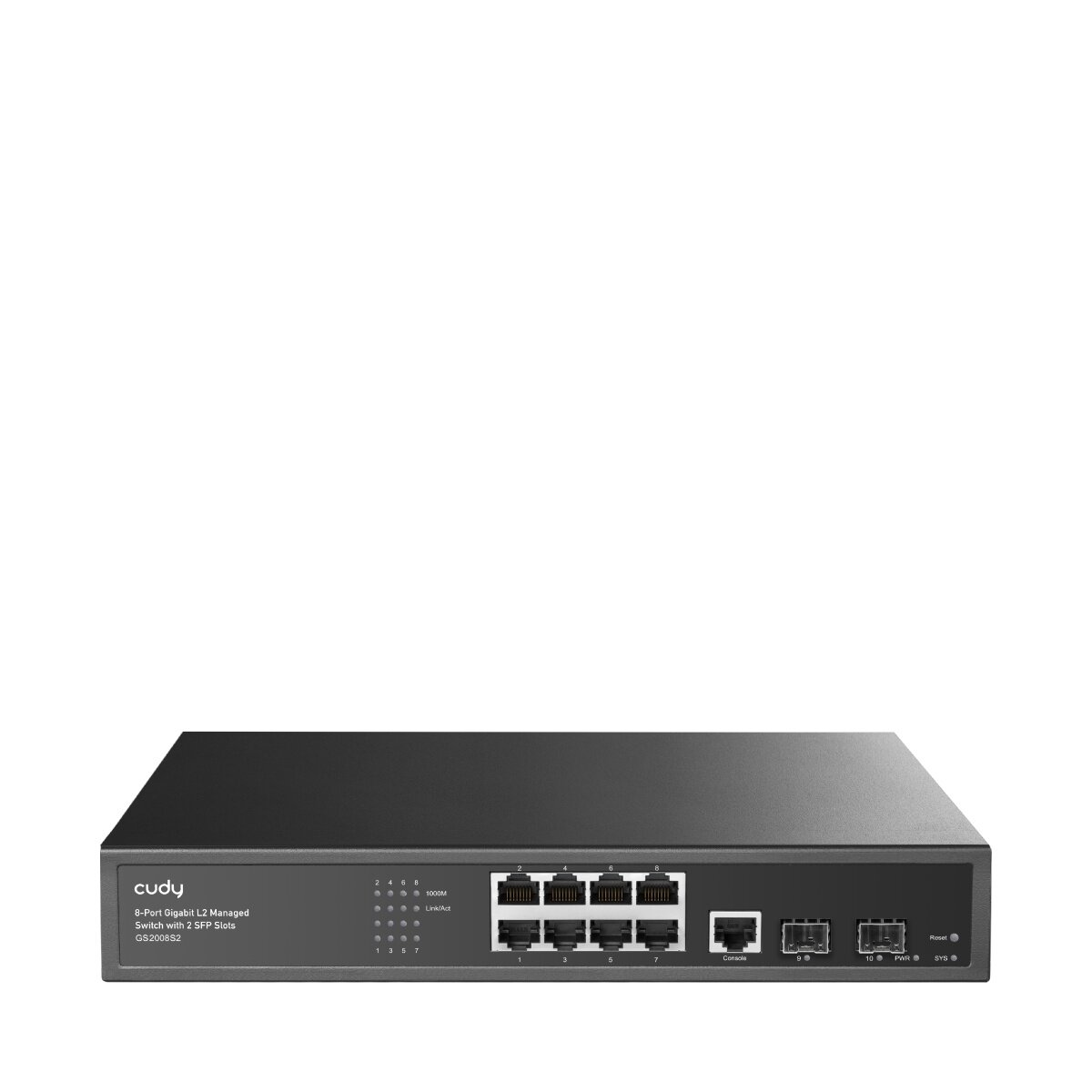

    8-port managed switch CUDY GS2008S2

    Inquire about this item
    Price 100.22 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs
    Manufacturer
    Cudy
    • General
    • ModelGS2008S2
    • Ethernet Ports8× Gigabit Ethernet ports, 2× Gigabit SFP ports, 1× RJ45 console port
    • Switching Capacity20 Gbps
    • Packet Forwarding Rate14.88 Mpps
    • MAC Address Table8K
    • VLAN Support4096 VLANs
    • Jumbo Frame9.6 KB
    • Packet Buffer4 Mbit
    • Memory128 MB
    • Flash16 MB
    • Transfer ModeStore-and-forward
    • MTBF100,000 hours
    • Power InputAC 100–240V, internal power supply (DC 12V 1A)
    • Max Power Consumption12W
    • CasingFanless metal chassis, 1U rack-mountable
    • Dimensions268×181×44 mm
    • Supported StandardsIEEE802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3az, 802.3ad, 802.1D, 802.1w, 802.1s, 802.1Q, 802.1p, 802.1x, 802.1AB (LLDP)
    • Network Media10BASE-T: Cat 3–5 UTP, 100BASE-TX/1000BASE-T: Cat 5 or higher UTP (≤100m), SFP: Multimode & Single-mode fiber
    • Surge/EMC ProtectionESD: Air 8kV, Contact 6kV; Surge: EN61000-4-5; EMI: FCC Part 15 Class A
    • Operating Temperature-10°C ~ 50°C
    • Storage Temperature-40°C ~ 70°C
    • Operating Humidity10% ~ 90%, non-condensing
    • Storage Humidity5% ~ 90%, non-condensing
    • Management MethodsWEB, CLI, SSH, Telnet, SNMP v1/v2/v3, RMON
    • Security Features802.1X, AAA, TACACS+, ARP inspection/binding, port security, DoS protection, CPU protection
    • L2 FeaturesVLAN (port, MAC, protocol-based), Voice VLAN, GVRP, LACP, port mirroring, rate limiting, storm control, IGMP & MLD snooping
    • QoS Features802.1p, DSCP, IP-based classification, SP/WRR scheduling, CAR
    • Diagnostic ToolsPing, Telnet, Traceroute, Cable Detection (VCT), LLDP, system logs
