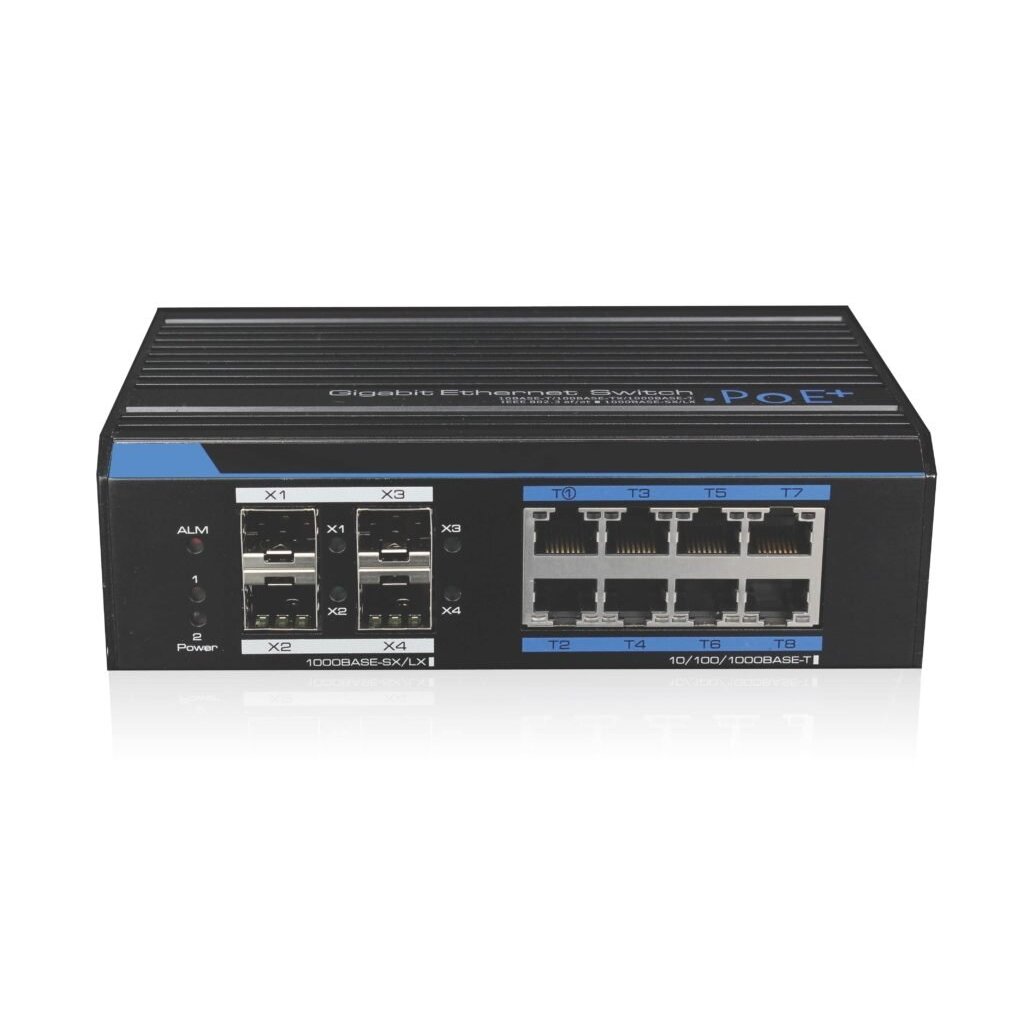

8 port 8 PoE port Switch UTEPO UTP7308GE-POE (without power supply)

Model

UTP7308GE-POE

Downlink Ports

8* 10/100/1000Base-T PoE RJ45 ports

Uplink Ports

4*1000Base-X SFP ports

Standard

IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1p, IEEE 802.1x IEC61000-4-5 IEC61000-4-2 IEC61000-4-4

Bandwidth

24Gbps

Packet Transfer Rate

18Mpps

Exchange Way

Storage& Transfer

Buffer

4M

MAC Address

8K

PoE Standard

802.3af/at

PoE Power Supply

End-span

PoE Line Pair

1/2(+), 3/6(-)

PoE Output

Port T1 60W HPoE, Port T2~T8 are standard PoE(30W)

alarm signal output by relay

Support relay alarm for power off, ports network link-off , ports PoE off （Set by Web Software）

Surge Immunity

6KV Per: IEC61000-4-5

ESD Protection

 ESD Level 4 Per: IEC61000-4-2

EFT Level 4 Per: IEC61000-4-4

Input Voltage

48~57V DC

Power Consumption

Self consumption＜30W

Operation Temperature

-40℃~75℃

Storage Temperature

-40℃~85℃

Operation Humidity

5%-95%（No- condensation）

Dimension(LxWxH)

159mm×110mm×46.5mm

Weight

750g

MTBF

330000 Hour

Authentication

CE, FCC, ROHS

Software Parameter

Port Management

Support Port Enable/Disable

Support Port Rate Settings

Support Port Full-duplex Mode

Support IEEE802.3x Flow Control

Support Port Name Change

VLAN

Support 4K VLAN

Support 802.1Q Protocol-Based VLAN

Support Port-Based VLAN

QoS

Support QoS

Support 8-Level Priority management for switching

Support WRR

Support 820.1P and DSCP Priority

Multicast Management

Support SNMP V1/V2/V3 Protocol

Support IGMP Snooping V1/V2

POE Management

Support Total Power Consumption Control

Support PoE ON/OFF

Support Single Port 60W max. Power Change and Port Output Priority

Alarm Signal Output by Relay

Support relay alarm for power off, ports network link-off , ports PoE off

Safety Character

Support IP、MAC、Port、VLAN Combination and Binding

Support MAC address auto-learning, aging& filter

Support Port Isolation, Port Speed-Limited

Support RSTP

Support Fast-Ring

Support 802.3ad LACP

ITU-T G.8032/Y1344 2010

Support 5 groups of 8-Port trunk

Support RADIUS Authentication& 802.1X Authentication

ERPS Ring

Ring Number

East Interface

West Interface

ERPS Instance

EPRS Instance Name

ERPS Instance ID

ERPS Ring Level

RAPS VLAN

Owner Interface

Subring Block

Associated Instance

System Management& Maintenance

Support WEB Management, CLR Settings and telnet Settings

Support CLR Settings

Support FTP/TFTP/HTTP Web Upgrading

Support Flow Calculate

Support MAC address Form Search

Support IP Address, DNS Server Change

Support Username& Password Change

Support History Record, Journal management

Support System settings Backup
